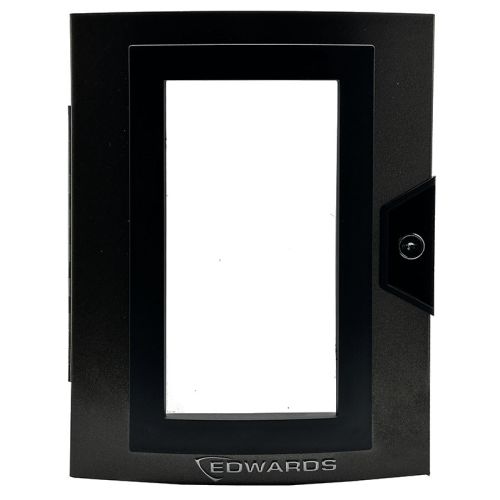

Edwards 4-2ANN — EST4 two-space LCD remote annunciator, shipped with a 4-LCDANN color touchscreen, a 4-ANNCPU processor, a metallic bronze outer door and a black inner door.
The 4-2ANN puts an EST4 color touchscreen and common controls anywhere on the EST4 network, over copper or fiber. The LCD fills both of its spaces. Edwards lists the 4-2ANNMT wallbox and the 4-NET series SFP network controllers as separate orders, so neither is in the carton.
- Display: eight events without scrolling, 262,144 colors, four rubber buttons (Panel Silence, Fire Drill, Alarm Silence and Reset by default)
- 4-ANNCPU: 16 to 32 VDC, 145 mA at 24 VDC standby and alarm; holds up to two 4-NET SFP controllers
- Wallbox: 4-2ANNMT, black, surface or semi-flush (both trims included)
- Approvals: UL, ULC, FM, CSFM and NYC Fire Dept.
- Operating range: 32 to 120 °F, 0 to 93% RH non-condensing
Not the 4-2ANN-E (EN54 version) or the 4-4ANN and larger annunciators, which ship without an LCD and are the sizes that take the 4-MIC paging microphone and 4-FT telephone.
