Edwards 4-24L24S — EST4 control-display module with 24 indicators and 24 control buttons.

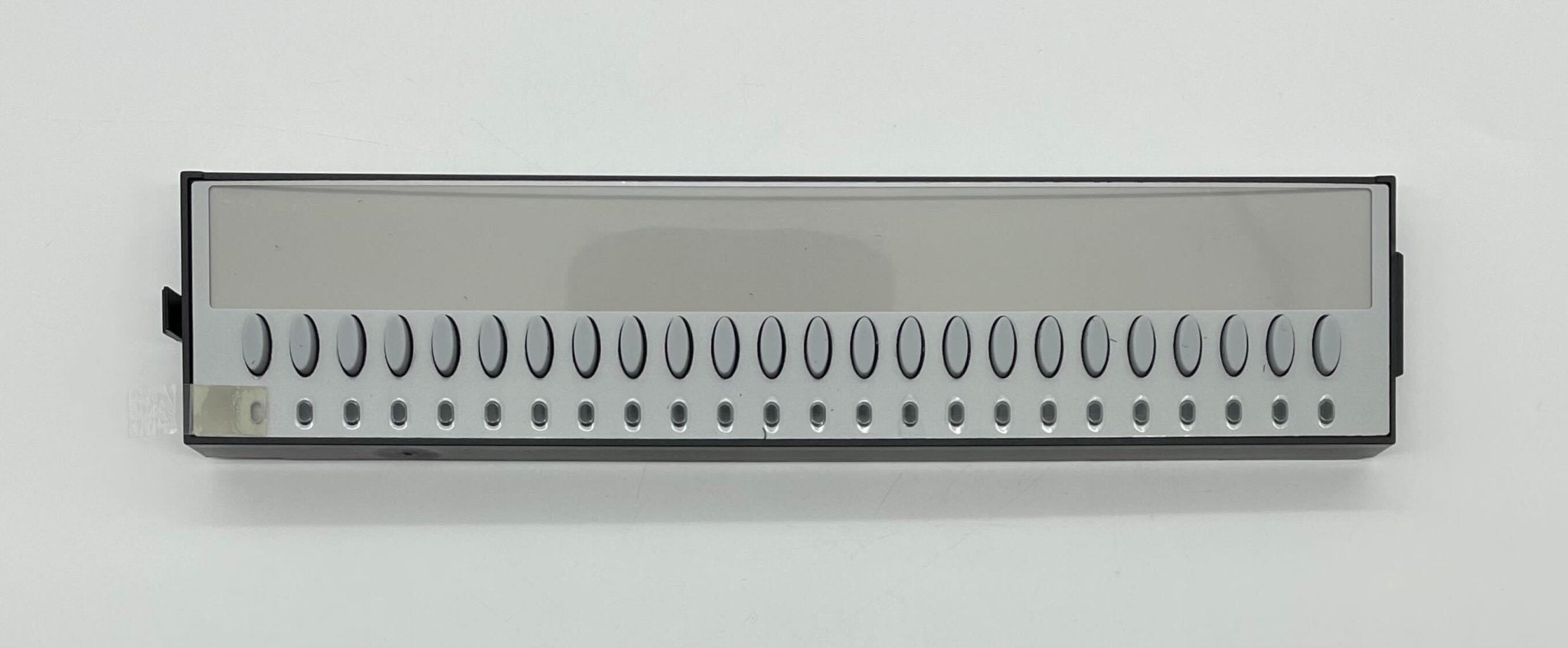

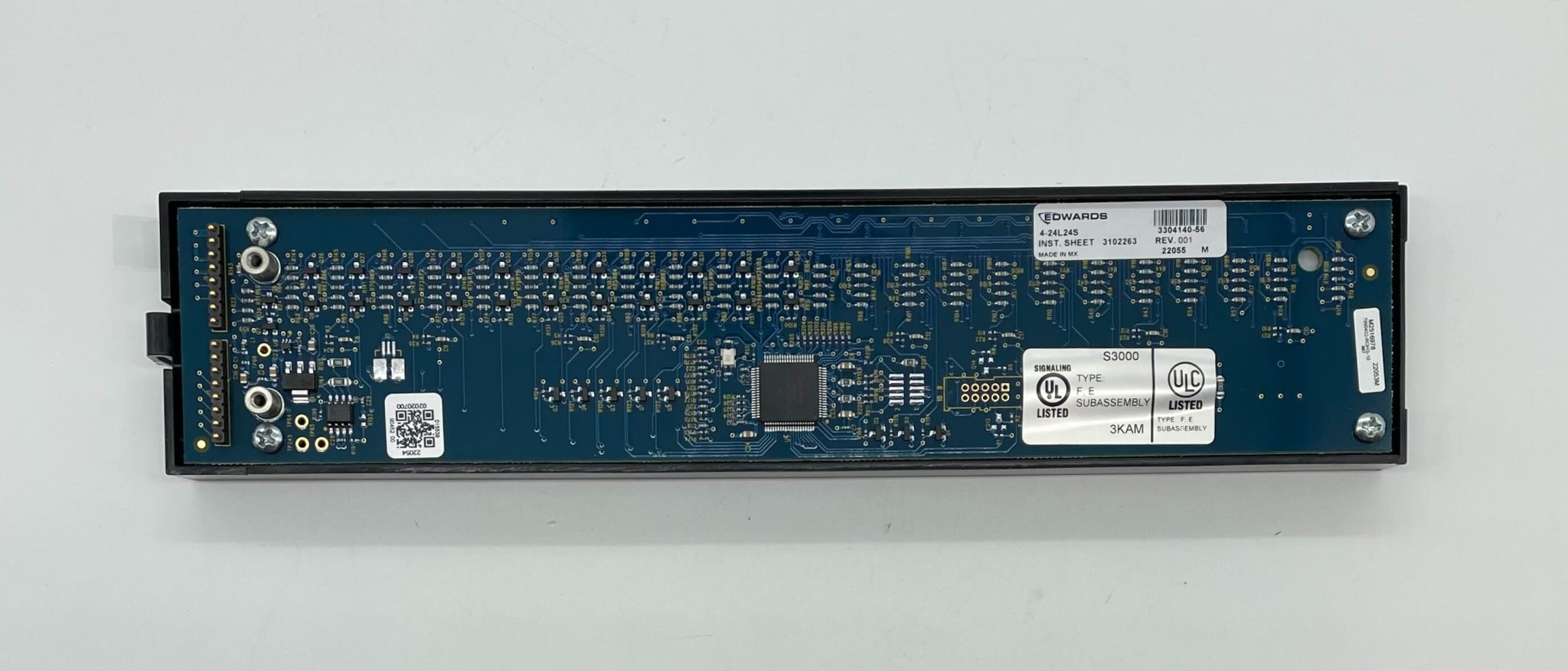

Edwards names it the 24 Indicator 24 Control Display Module in the 4-24L Series. Every indicator position is five separate LEDs, red, yellow, blue, green and white, with color and flash rate set in the configuration utility, so one module covers zone annunciation, trouble, disable, damper and fan status or audio zone state without stocking colored strips. Switches run independently, as a latching interlock or as a radio group.

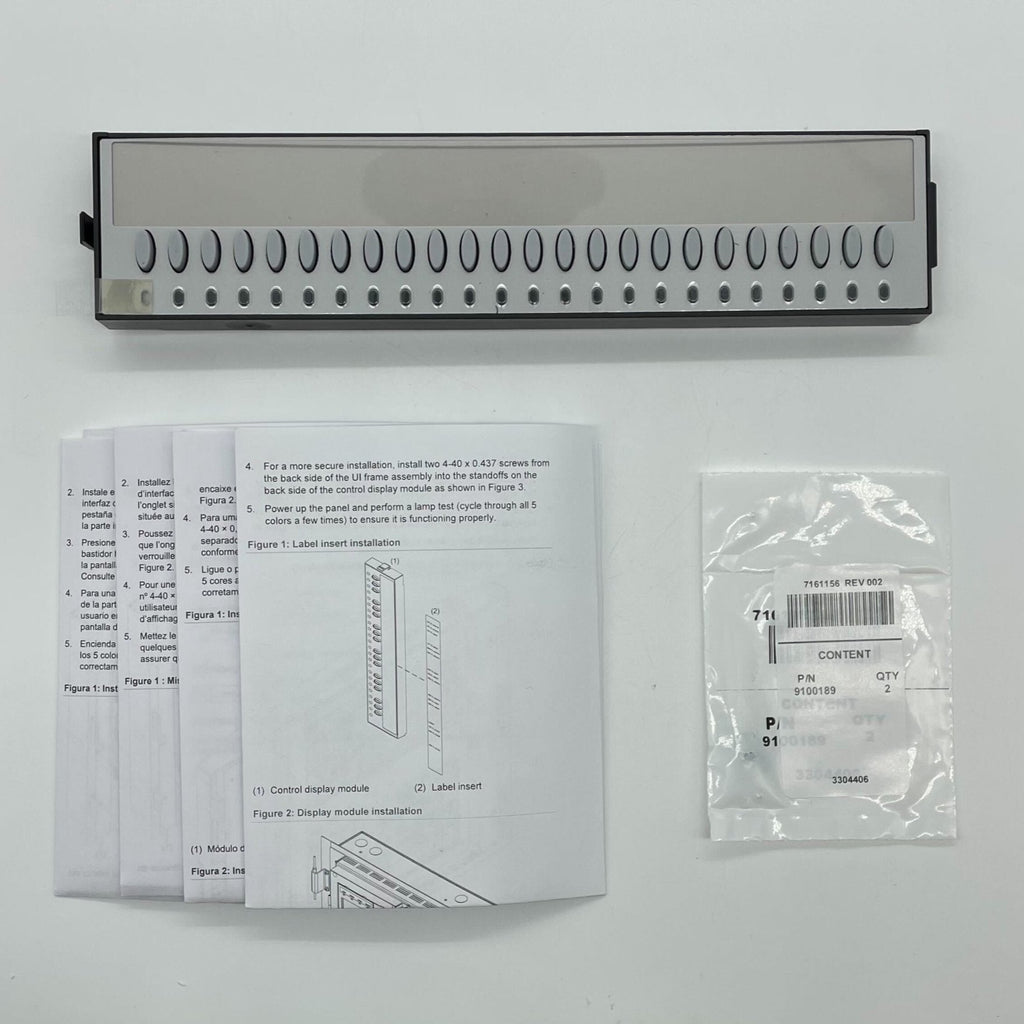

- 24 indicators and 24 rubber control buttons with tactile and LED feedback
- 4-24L series current: 4.0 mA standby and 10.0 mA alarm at 24 VDC
- Snaps into the inner door of 4-CAB8D, 4-CAB16D, 4-CAB24D, 4-CAB24DL, 4-4ANND or 4-6ANND
- 32 to 120 °F, 0 to 93% relative humidity non-condensing

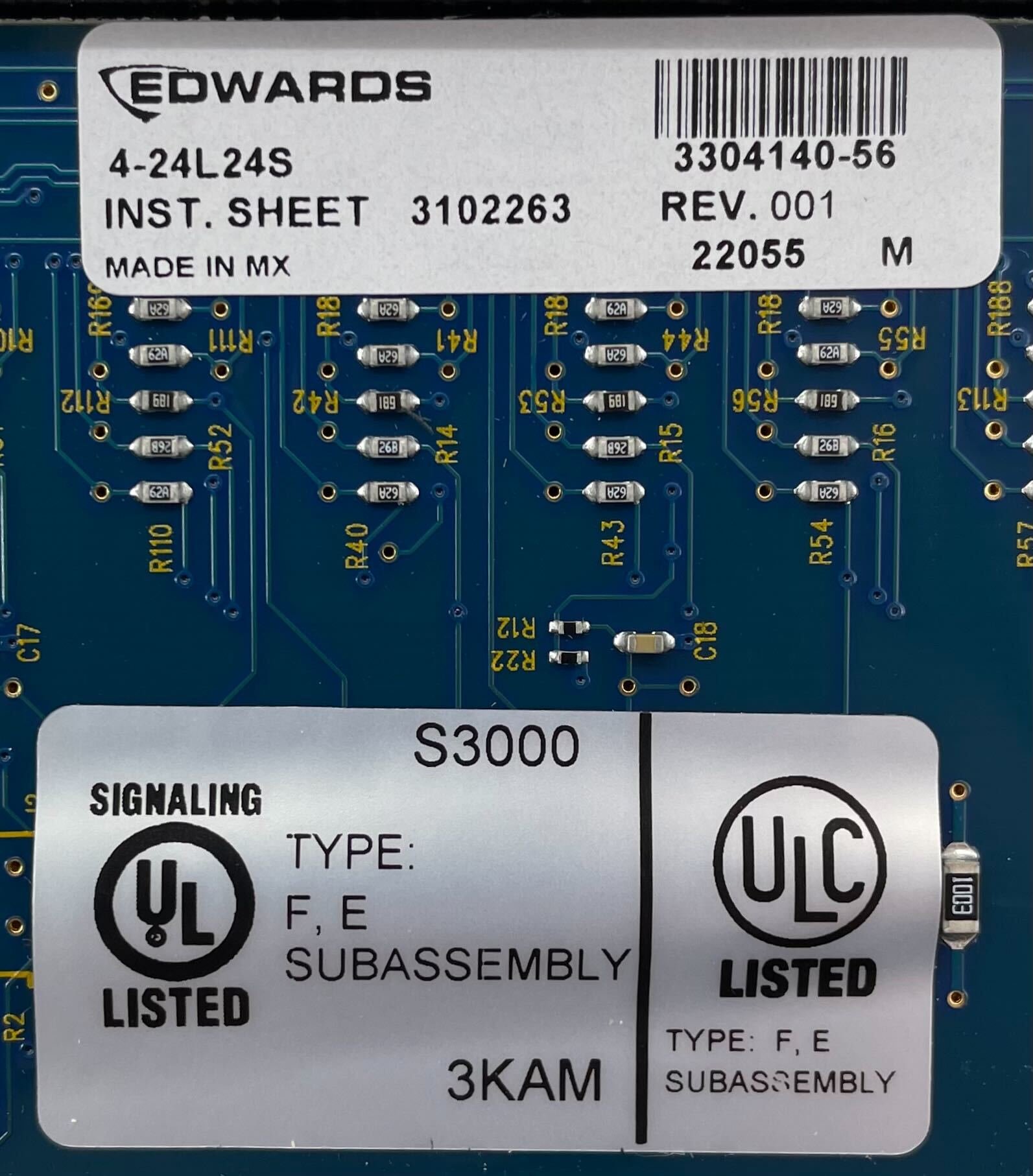

- UL, ULC, FM, CSFM, CE and NYC Fire Department certifications
4-24L is the same strip with no buttons, 4-24L12S carries 12 and 4-24L18S carries 18. 4-FIL is the blank filler plate for an unused position, and each model has a matching -E variant for EN54 work.
Documents
FAQ
Where does the 4-24L24S mount?
It snaps into the inner door of the 4-CAB8D, 4-CAB16D, 4-CAB24D, 4-CAB24DL, 4-4ANND or 4-6ANND.
Can the LED colors be changed?
Yes. Each indicator position has red, yellow, blue, green and white LEDs, with color and flash rate set in the configuration utility.
How do the switches work?
Switches can run independently, as a latching interlock or as a radio group.
What current does it draw?
4.0 mA standby and 10.0 mA alarm at 24 VDC.
