Edwards 3-SDDC1 Dual Signature Driver Controller
The 3-SSDC1 and 3-SDDC1 Signature Driver Controller modules provide an intelligent interface between the 3-CPU3 module and Signature Series devices.
Each module contains its own microprocessor used to coordinate, process and interpret information received from and sent to Signature devices. Power and communications is received directly from the control panel rail assembly.
The 3-SSDC1 Single Signature Driver Controller module supports one Signature Data circuit, while the 3-SDDC1 Signature Dual Driver Controller module supports two Signature circuits. Both modules occupy one rail space in the fire alarm control cabinet and provide removable field wiring terminals to aid installation.
Innovative design gives the 3-SSDC1/3-SDDC1 and Signature devices truly “distributed intelligence”. Signature detectors and modules have their own on-board microprocessor communicating with the loop controller in a fully digital communication format. This increases the accuracy of the information coming to and from the loop controller by reducing the effects of capacitance and noise.

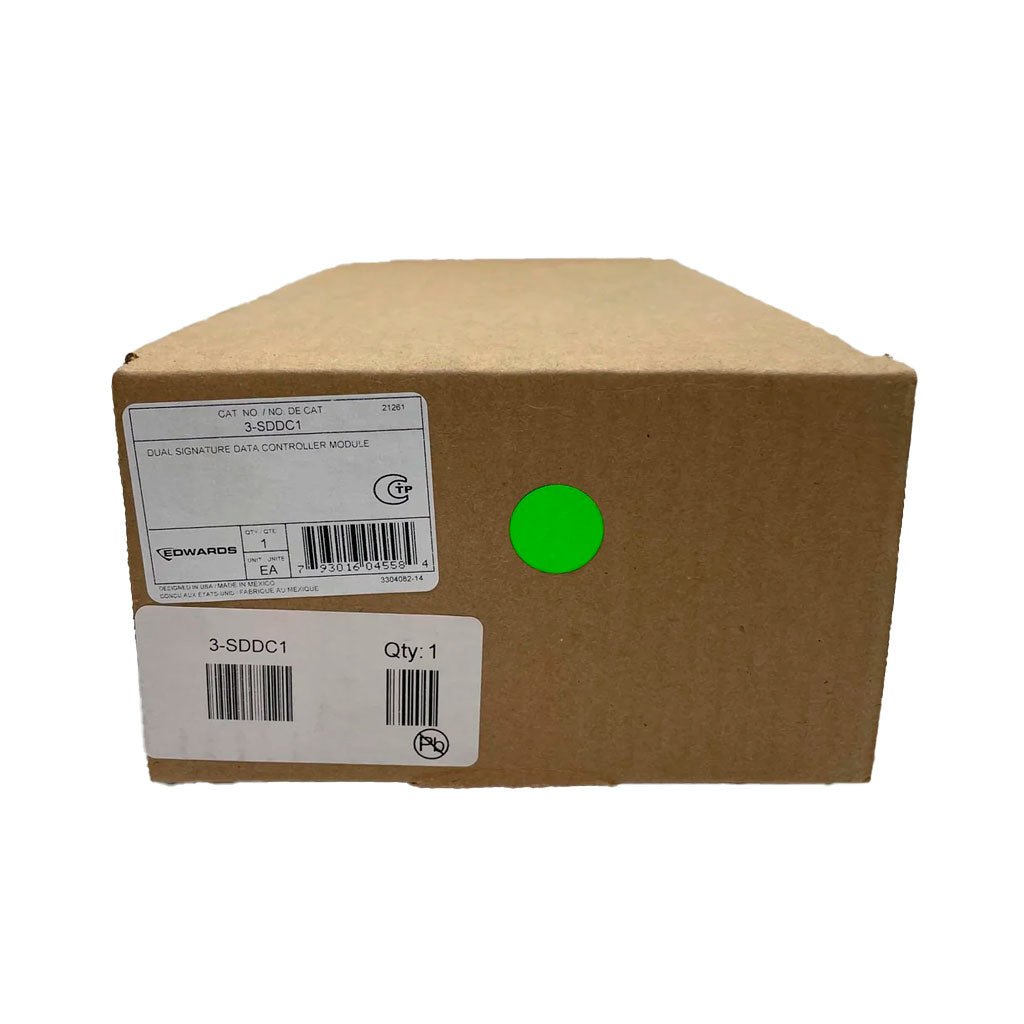

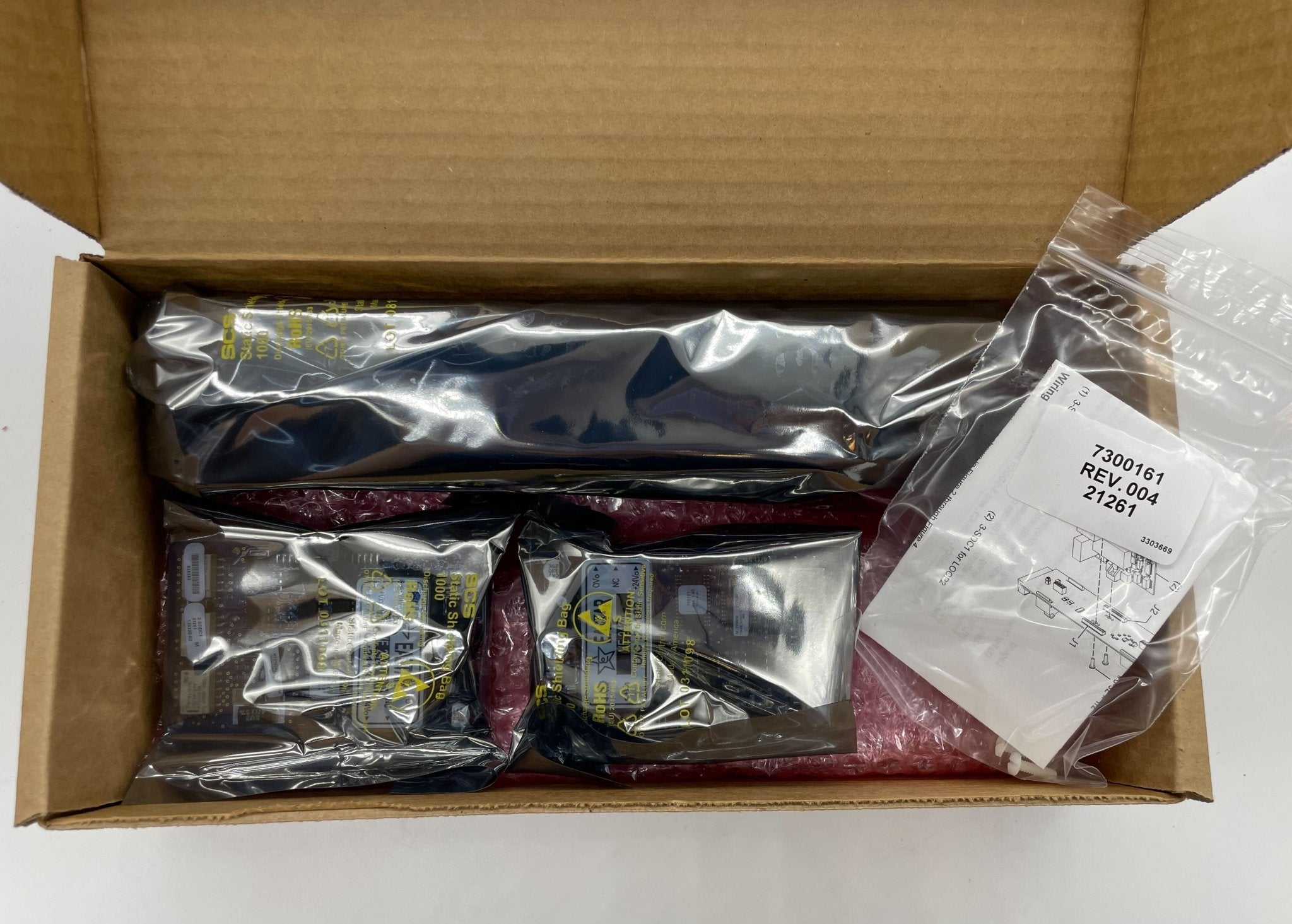

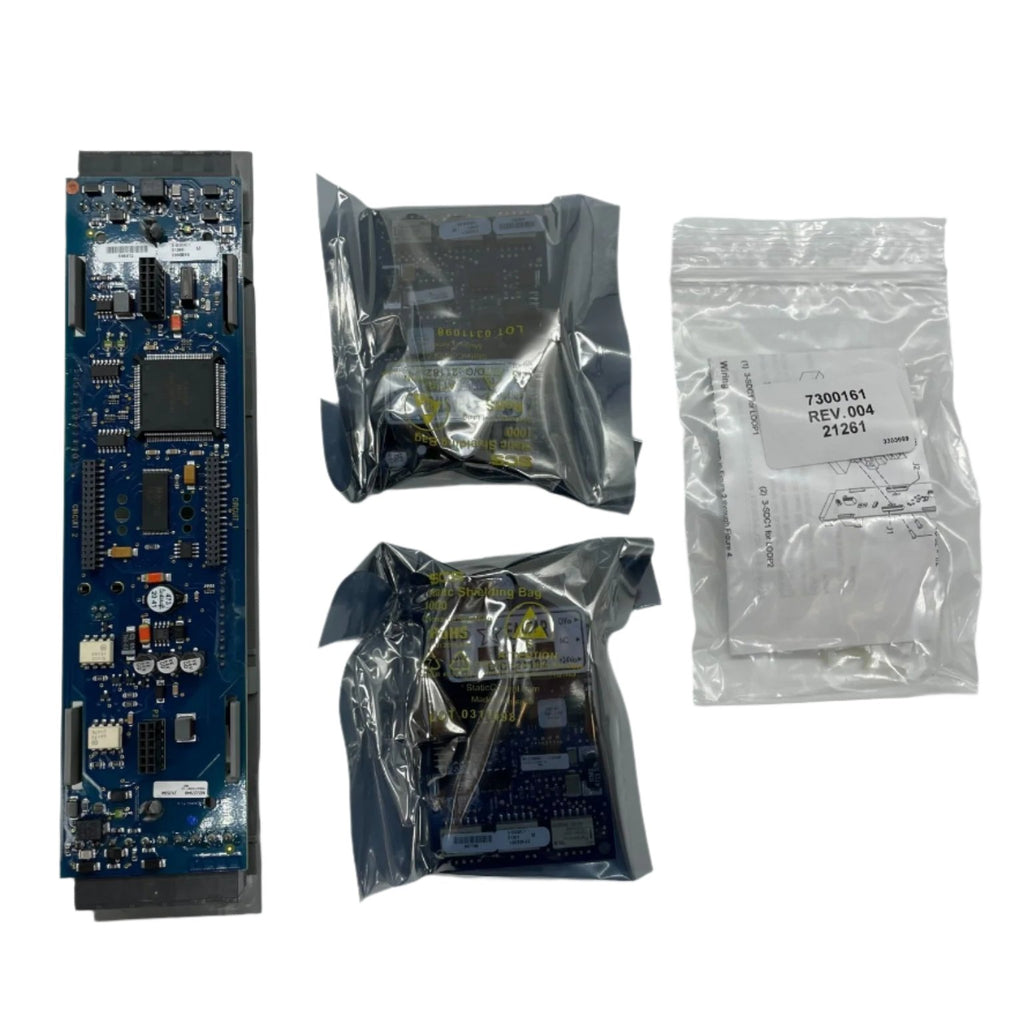

3-SDDC1Dual Signature Driver Controller. Comes with two 3-SDC1s. Mounts to Local Rail.
Documents
FAQ
Is the 3-SDDC1 still available?
The 3-SDDC1 is discontinued. The replacement we offer is the Edwards 3-SDDC2 dual Signature driver controller.
How many devices does it support?
It comes with two 3-SDC1 cards; each Signature circuit supports 125 detectors and 125 modules, for up to 250 of each per module.
How many can be installed per node?
Up to five 3-SDDC1 modules per node, for a total of 10 Signature circuits. Each occupies one local rail module space.
What wiring does it support?
Class B, Class A or Class X, with 18 to 12 AWG wire, up to 100 ohms and 0.33 µF per Signature circuit.
