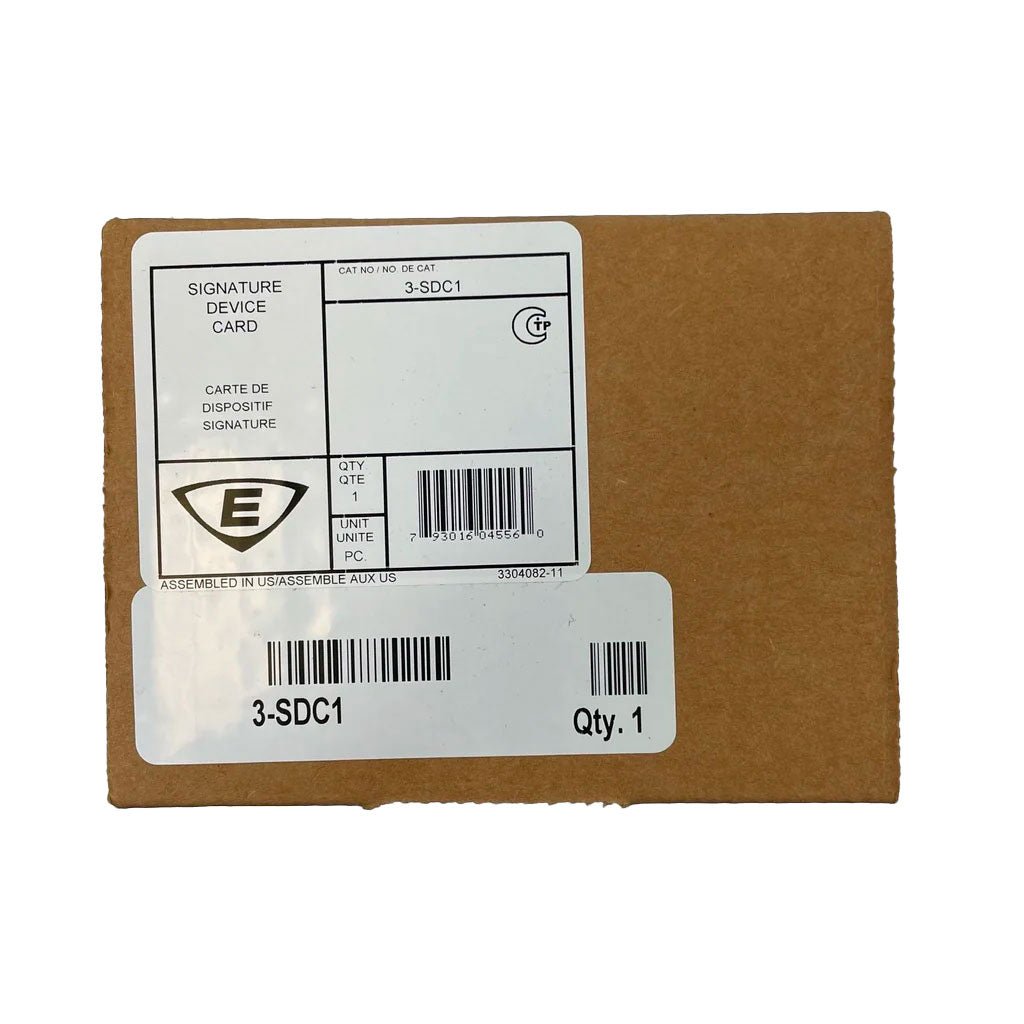

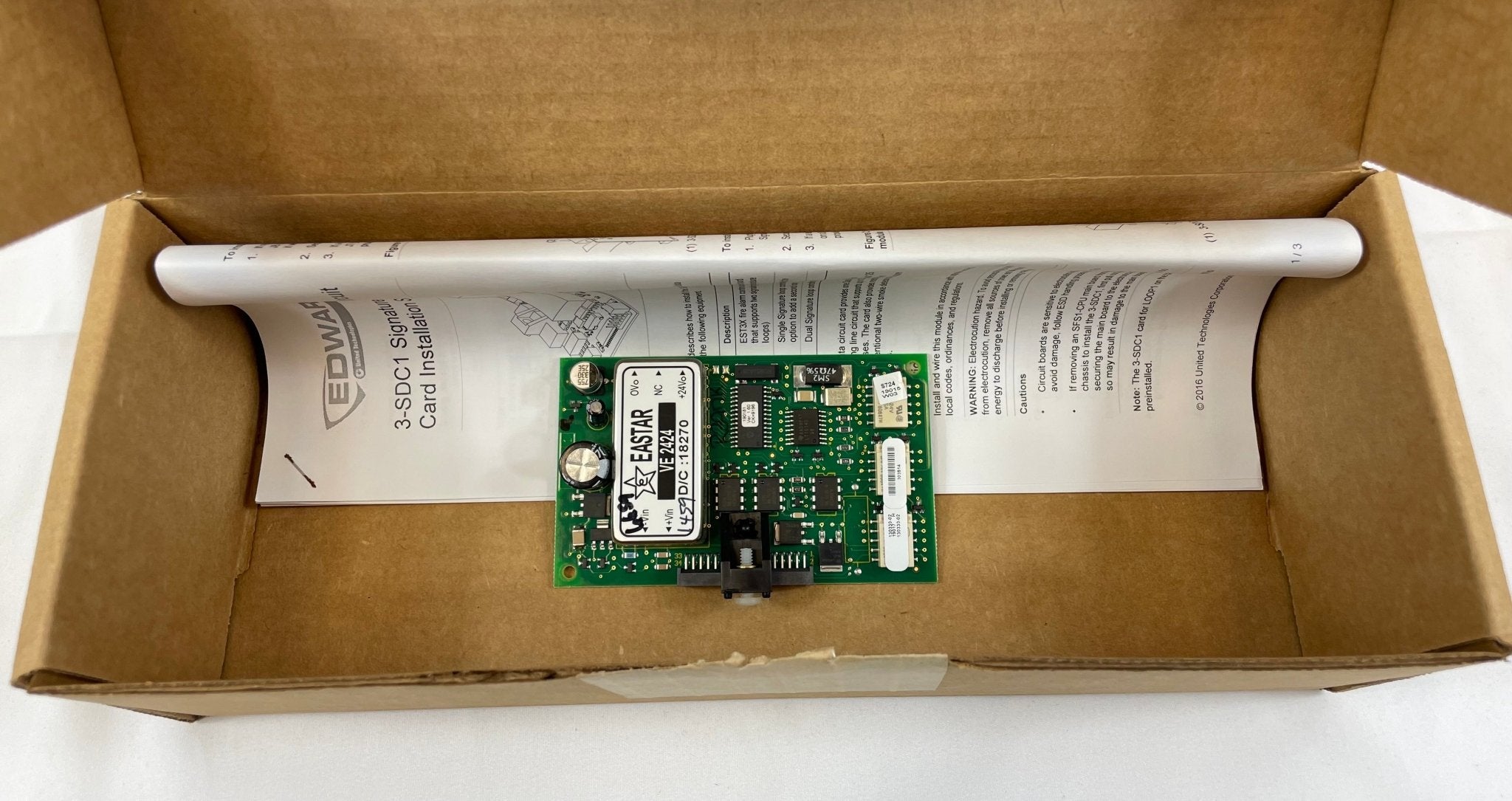

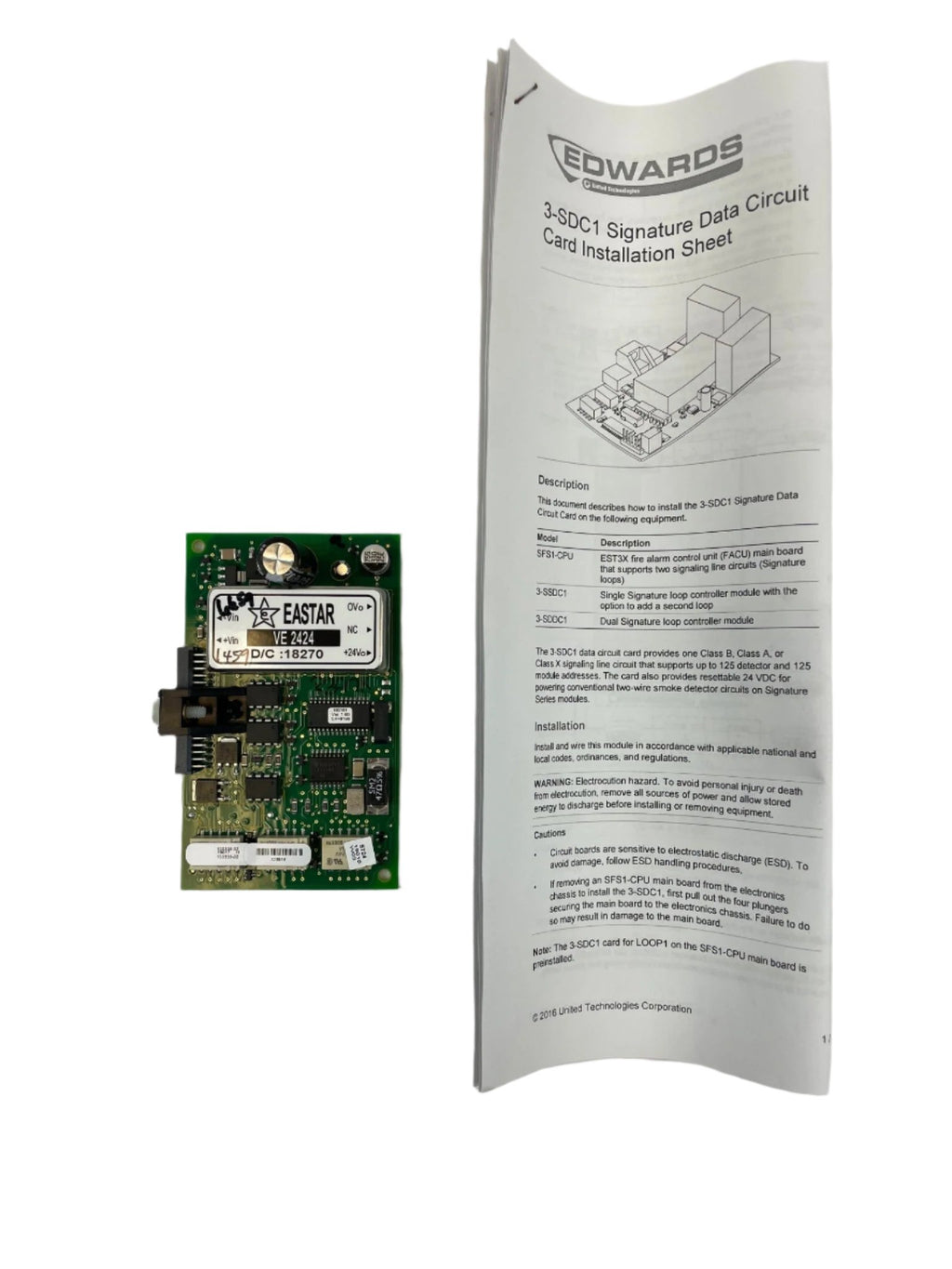

Edwards 3-SDC1 — Signature device card, the plug-in loop card that upgrades a 3-SSDC1 single driver controller to a dual.
On EST3 and EST4 the driver controller module occupies the rail space and holds the microprocessor, while the Signature circuit lives on a device card that plugs into it. A 3-SSDC1 ships with one card and drives one Signature data circuit; a second card gives it the two circuits of a 3-SDDC1. This part is that second card, so it is an expansion item rather than a complete loop controller.
- One Signature data circuit per card, supporting 125 detectors and 125 module addresses
- Circuit voltage 20 VDC plus or minus 5 percent; max resistance 100 Ω, capacitance 0.33 µF
- 100 mA of two-wire smoke power output per card, not counted in the host module current
- Supports 150 conventional detectors of the 100 µA type per circuit
- Class B, Class A or Class X wiring, T-taps permitted on Class B; loop runs beyond 11,000 ft
3-SSDC1 and 3-SDDC1 are the driver controller modules themselves, each occupying one local rail space and each already including its cards. Add -E for EN 54 versions.
Documents
FAQ
How many devices does one 3-SDC1 card support?
Up to 125 detectors and 125 modules over a single pair of wires, with loop distances over 11,000 ft.
Which wiring classes are supported?
Class B, Class A and Class X wiring.
Can 3-SDC1 cards be reused when upgrading?
Yes. To upgrade a 3-SSDC1 or 3-SDDC1 to a 3-SSDC2 or 3-SDDC2, Edwards says to replace the local rail module with a 3-SSDC2-MB and reuse the 3-SDC1 cards and filters.
