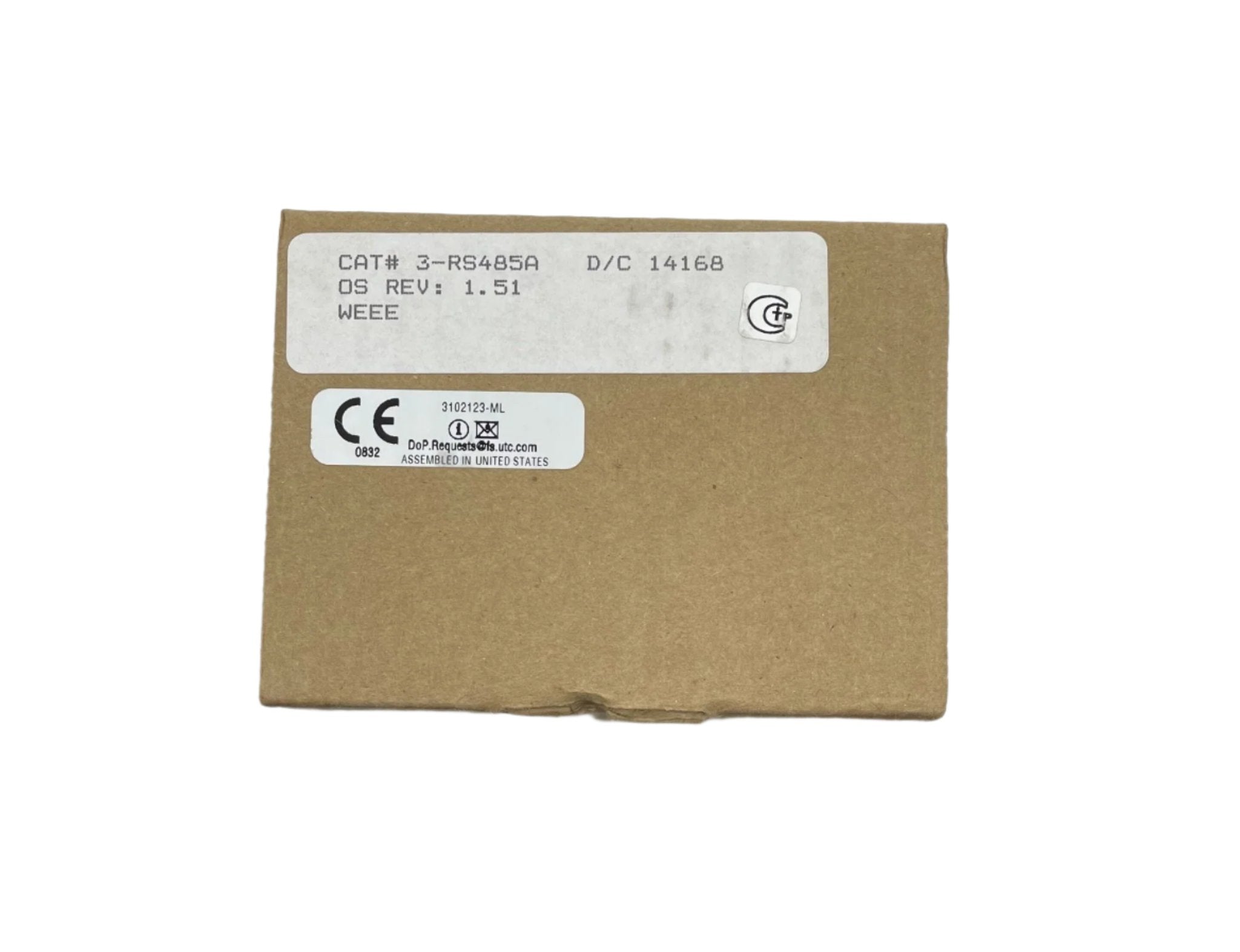

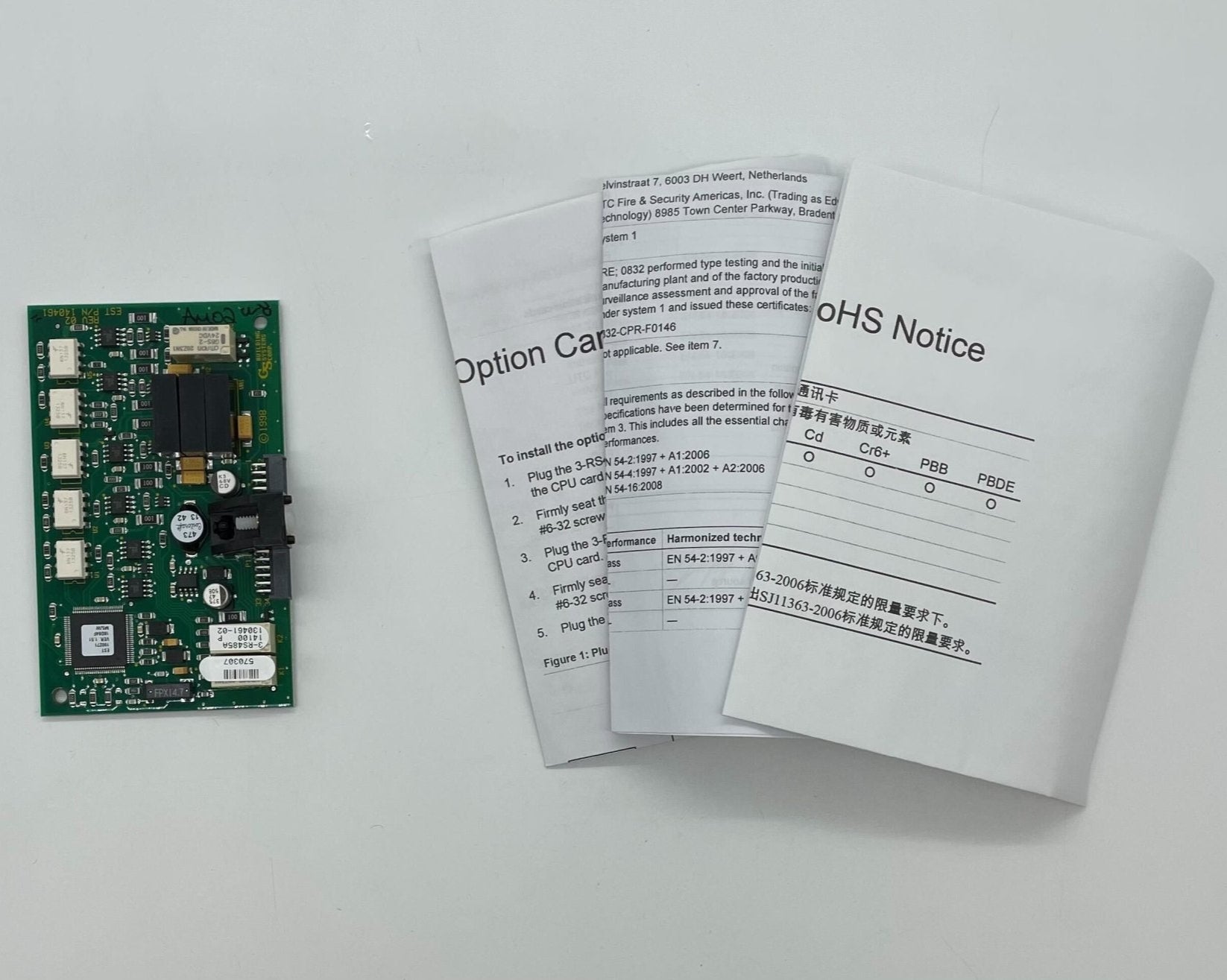

Edwards 3-RS485A is a network communications card for the EST3 central processor. It gives a panel the ability to network with other panels, and provides two independent RS-485 circuits: one for network data and one for digital audio.
Specifications
| Network data circuit |
Class A (Style 6) or Class B (Style 4) |
| Network audio circuit |
Class A (Style 6) or Class B (Style 4) |
| Voltage |
24 VDC |
| Current |
98 mA standby and alarm |
| Wire |
18 AWG minimum twisted pair, six twists per foot |
| Circuit length |
5,000 ft (1,524 m) between any three panels |
| Circuit resistance |
90 ohm max. |
| Operating environment |
32 to 120 F (0 to 49 C), 0 to 93% noncondensing |
Installation notes
- Plug the card into connector J2 on the CPU card and secure it with the supplied #6-32 screw and nut.
- Use the 3-RS485A with a 3-CPU1 module or later; with a 3-CPU module it causes network system troubles.
- The Network A port is not isolated; the Network B port is isolated.
Use it when an EST3 panel must join a Class A network for both data and audio.
