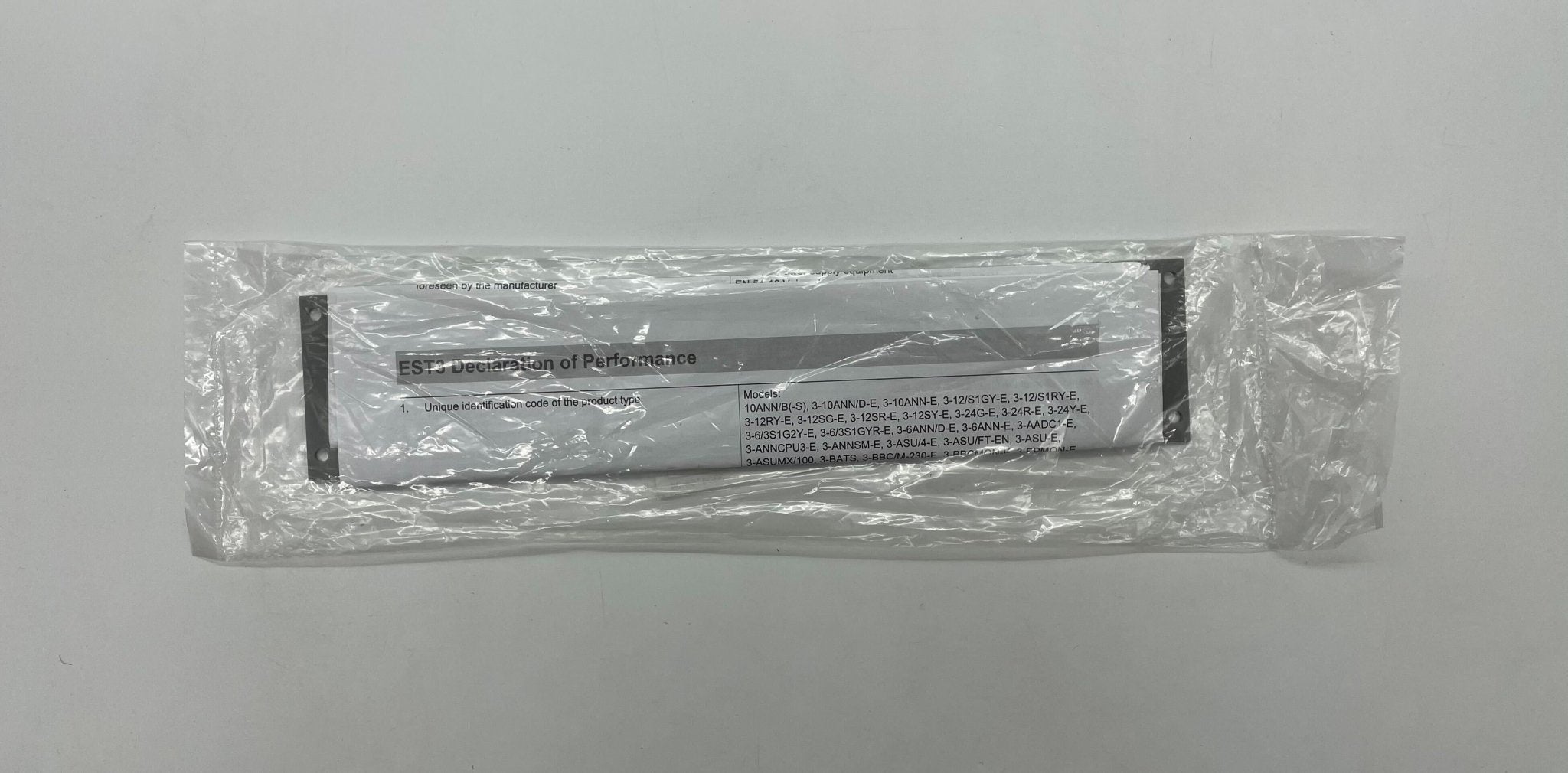

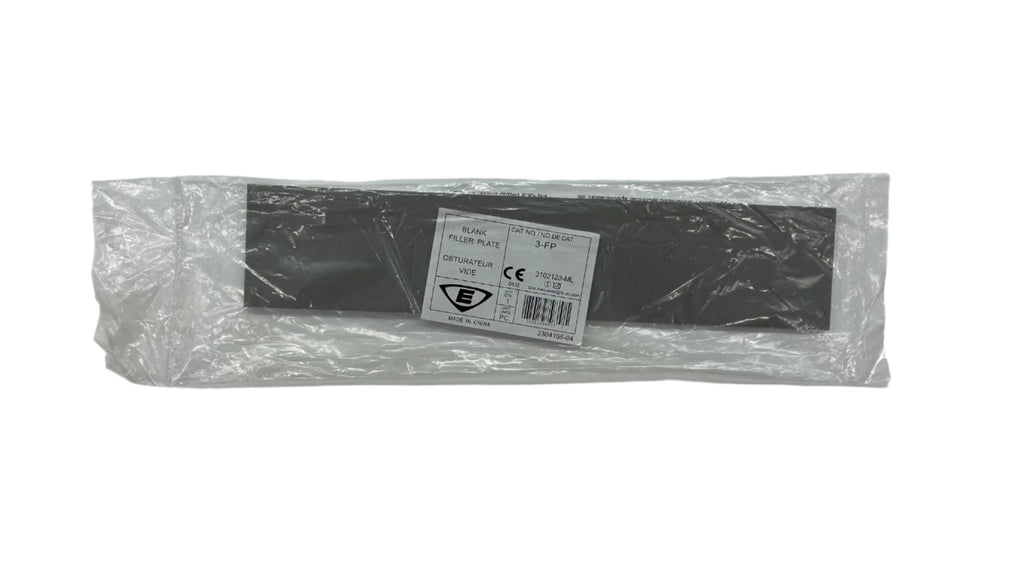

Edwards 3-FP Plastic Filler Plate
One Needed for Each Display/Control Module Door where no Led/Switch Modules are Located (280053)
The Initiating Device Circuit module is a local rail module that provides the interface between the system control panel and conventional hardwired circuits. The 3-IDC 8/4 has eight supervised Class B input circuits. Four of the eight configure from input circuits to Notification Appliance Circuits. A wide range of wire sizes are supported by the 3-IDC 8/4 making retrofit easy. Removable field wiring terminals reduce the effort and time needed to trouble shoot field wiring or replace modules. Any Control Display module will mount in front of the 3-IDC 8/4 allowing great flexibility of system user interface layout. However, the 3-IDC 8/4 cannot be mounted behind the 4-FT Fire Fighter Master Handset module. EST3EST4 Approvals NYC FIRE DEPT. COA # 6314
Key Features
- Eight supervised Class B hardwired circuits-configure as eight input circuits or configure up to four of the eight as Notification Appliance Circuits
- Latching or non-latching by circuit
- Verified or non-verified
- Supports Regulated and Special Application NACs EN 54-2: 1997 + A1: 2006 EN 54-4: 1997 +
