Edwards 3-FIBMB2 is the fiber optic communications interface for EST3 control panels. It carries network data and digital audio data between panel nodes over single-mode fiber, multi-mode fiber or copper wire, and it can change from one medium to another at any node.
The card connects to the 3-CPU with a ribbon cable and accepts one to four plug-in transceivers, which are ordered separately. All copper and fiber circuits can be configured as supervised Class B, Class A or Class X circuits.
Specifications
| Compatibility |
3-CPU1 and later, connector J2 |
| Mounting |
½ footprint space in a 3-CHAS7 chassis, 3-CAB5 enclosure or MFC-A cabinet |
| Transceivers |
1 to 4, ordered separately: SMXLO2, SMXHI2 (single-mode), MMXVR (multi-mode) |
| Single-mode distance |
SMXLO2 approx. 8.7 mi (14 km); SMXHI2 approx. 24.85 mi (40 km); 1300 nm, duplex SC |
| Multi-mode distance |
MMXVR approx. 8,000 ft (2.4 km); 820 nm; 50/125, 62.5/125 or 100/140 µm fiber; ST |
| Network data circuit |
Class B or Class A, 19.2K or 38.4K baud |
| Digital audio data circuit |
Class B, Class A or Class X, 327K baud |
| Current |
105 mA at 24 VDC; add 79 mA for each SMXLO2 or SMXHI2 |
| Operating environment |
32 to 120 °F (0 to 49 °C), 93% RH non-condensing |
| Certifications |
UL, ULC |
Installation notes

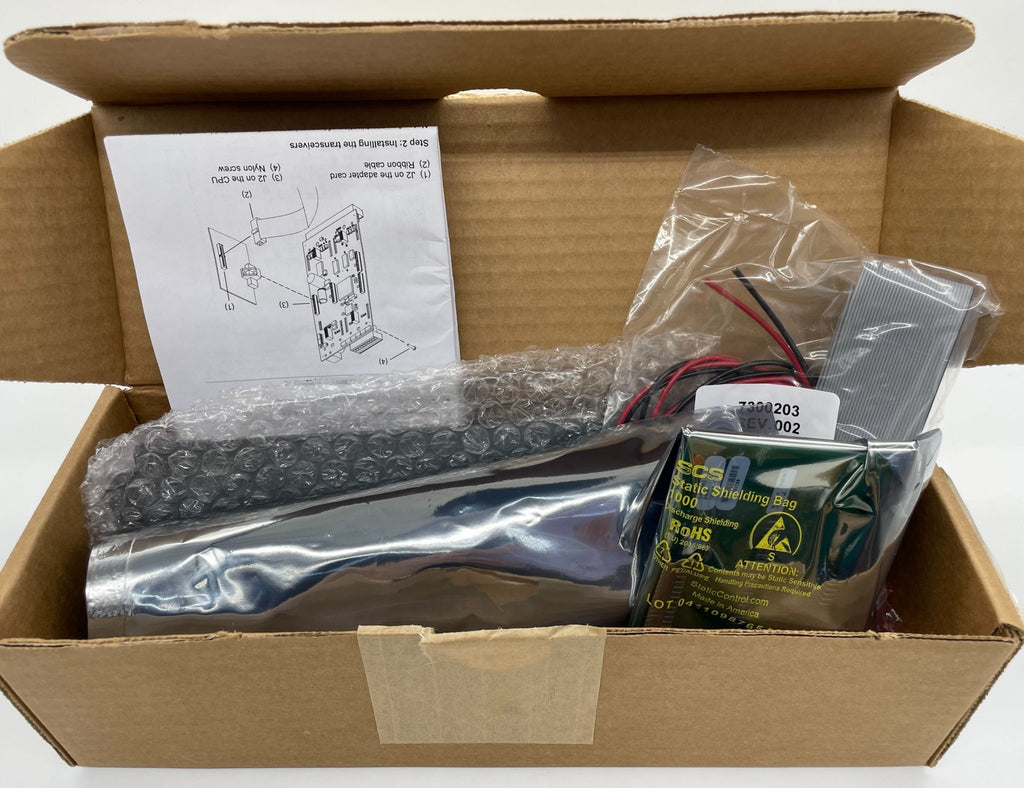

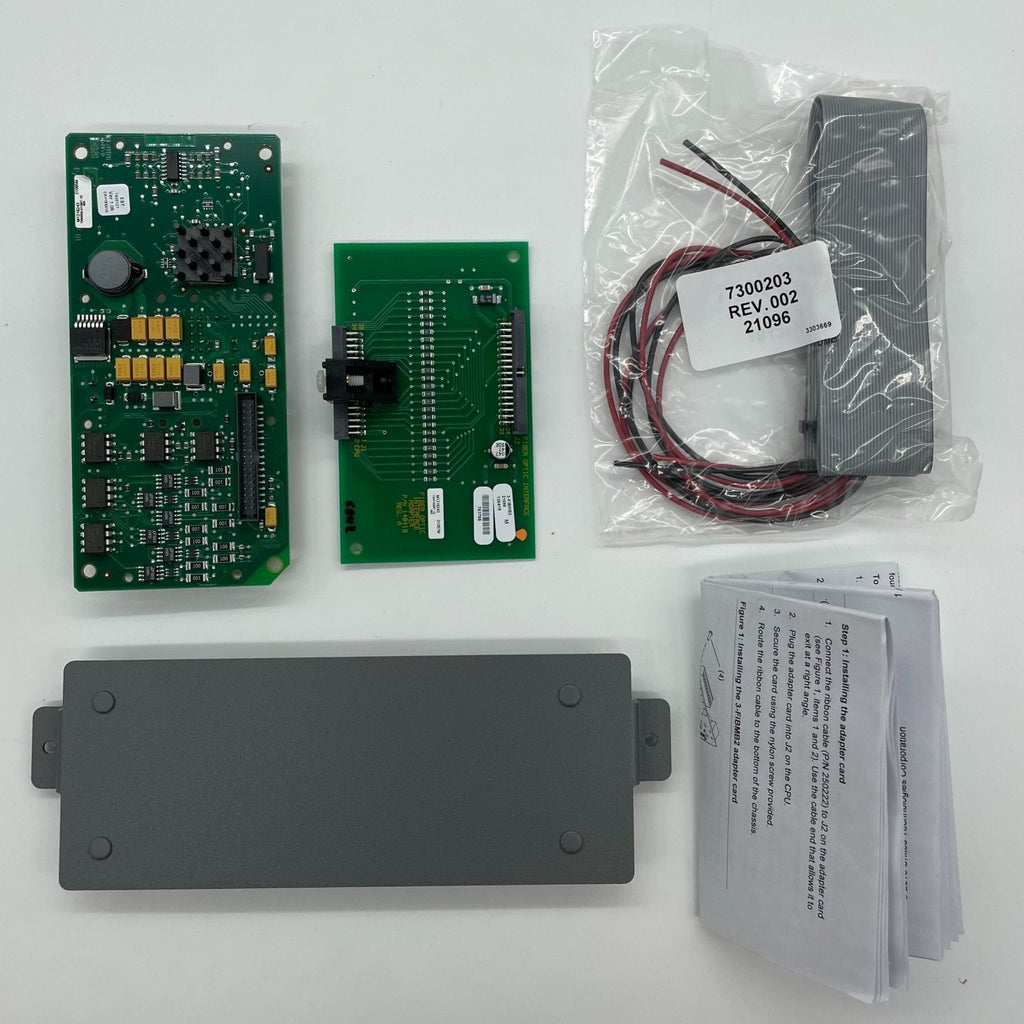

- A ribbon cable connects J2 on the 3-CPU to J2 on the adapter card; the card ships with a mounting bracket.
- Any transceiver type can be fitted in any of the four positions on the board.
- Secondary power terminals accept an external 24 VDC source so network and audio data keep flowing while the panel is powered down for service.
- A constant output test signal simplifies installing and testing multi-mode fiber circuits.
- A minimum fiber attenuation of 8 dB is required with the SMXHI2 to avoid overloading the receiver.
- Actual fiber distances depend on the losses in each circuit and should be calculated for each installation.
Related models
- SMXLO2 standard output single-mode transceiver
- SMXHI2 high output single-mode transceiver
- MMXVR multi-mode transceiver
- 3-FIBMB earlier fiber interface; the 3-FIBMB2/MMXVR is compatible with 3-FIB(A) multi-mode fiber modules
Documents
FAQ
Does the 3-FIBMB2 include fiber transceivers?
No. The card requires one to four plug-in transceivers ordered separately: SMXLO2 or SMXHI2 for single-mode fiber, or MMXVR for multi-mode fiber.
How far apart can panel nodes be?
Approximately 8,000 ft (2.4 km) with the MMXVR on multi-mode fiber, 8.7 mi (14 km) with the SMXLO2 and 24.85 mi (40 km) with the SMXHI2 on single-mode fiber. Actual distances depend on the fiber losses in each circuit.
Which EST3 CPU does it work with?
It connects to J2 of the 3-CPU1 and later CPUs with a ribbon cable and mounts in a ½ footprint space in a 3-CHAS7, 3-CAB5 or MFC-A.
Can communications continue while a panel is serviced?
Yes. An external 24 VDC source on the secondary power terminals keeps network and audio data flowing through the card when the panel is powered down.
