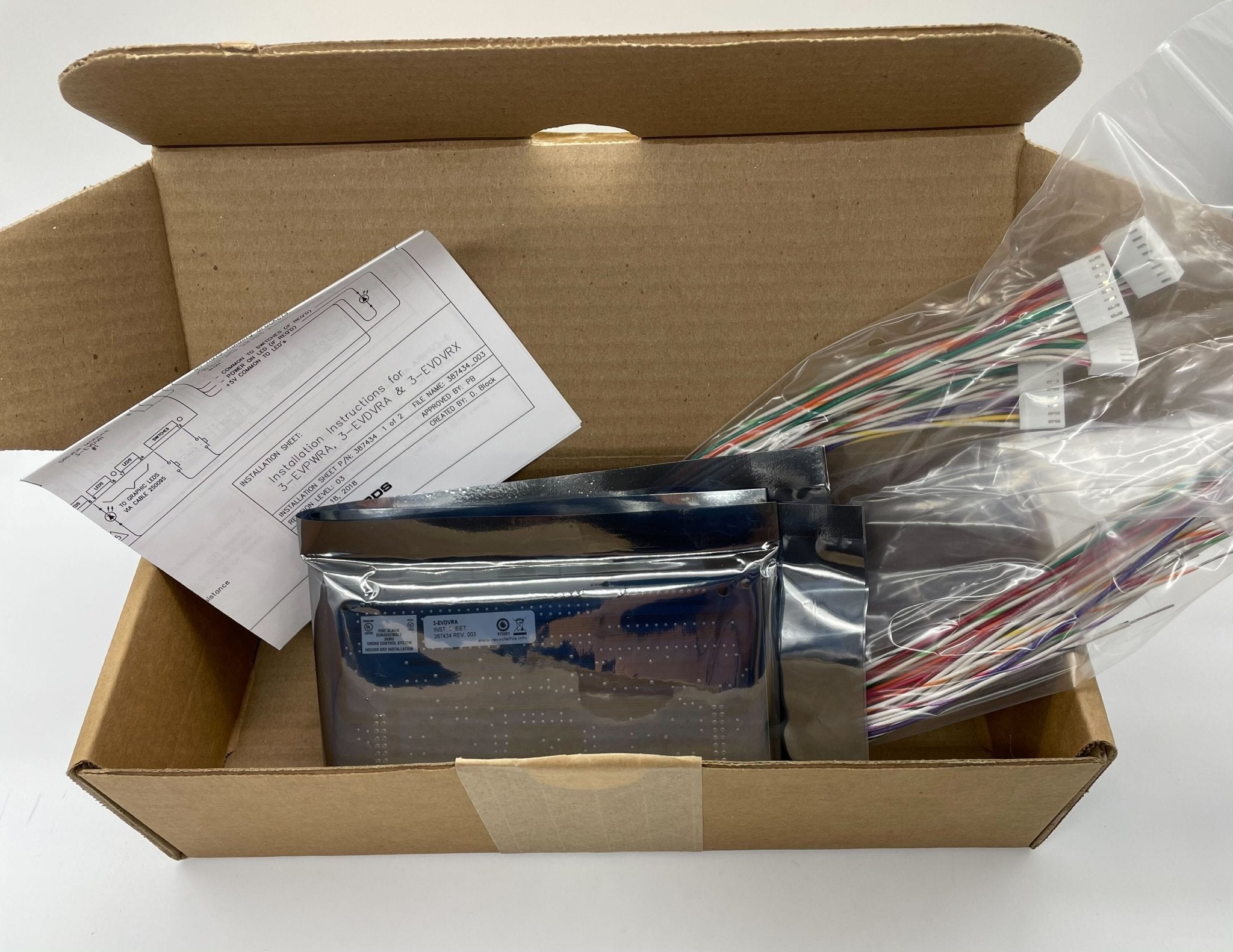

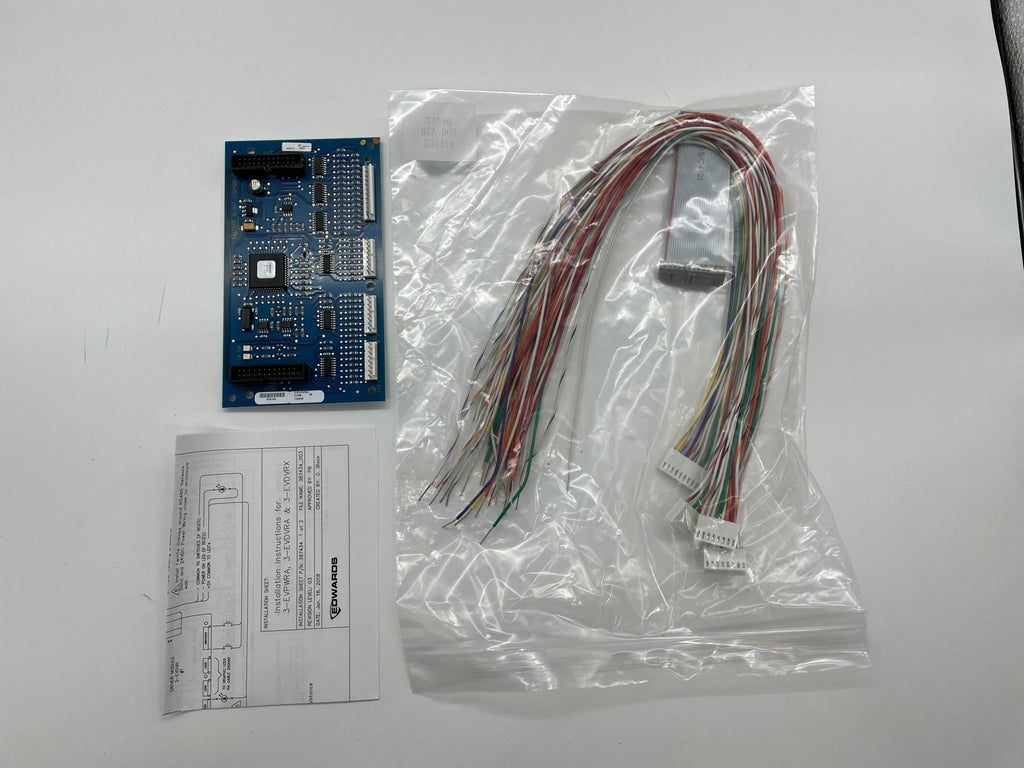

Edwards 3-EVDVRA is an EST3 LED/switch driver module assembly for third-party graphic annunciators. It is the assembled version of the 3-EVDVR and comes packaged with cables, mounting hardware and installation instructions, so a custom graphic panel's LEDs and switches can be driven from an EST3 system.
EST3 provides LED driver boards suited to most graphic annunciators. Up to three 3-EVDVRAs can be mounted on a 3-EVDVRX plastic extrusion for 19 in. mounting, and the 3-EVPWRA power supply assembly supports third-party graphics with a rail chassis that has space for one 3-ANNCPU3.
Specifications
| Type |
LED/switch driver module assembly |
| Application |
Third-party graphic annunciators on EST3 |
| Includes |
Cables, mounting hardware, installation instructions |
| Ship weight |
0.35 lb (0.12 kg) |
Related models
- 3-EVDVR: LED/switch driver module for Edwards graphics
- 3-EVDVRX: 19 in. mounting extrusion for up to three 3-EVDVRAs
- 3-EVPWRA: power supply assembly for third-party graphics
- 3-EVPWR: power supply for Edwards graphics
Documents
FAQ
What is the difference between the 3-EVDVRA and the 3-EVDVR?
The 3-EVDVR is the LED/switch driver module for Edwards graphics. The 3-EVDVRA is the assembled version for third-party graphics, packaged with cables, mounting hardware and installation instructions.
How can several modules be mounted together?
The 3-EVDVRX plastic mounting extrusion holds up to three 3-EVDVRAs for 19 in. mounting.
What powers a third-party graphic annunciator?
Edwards offers the 3-EVPWRA power supply assembly, with a 19 in. rail mounting chassis and space for one 3-ANNCPU3, for third-party graphics.
