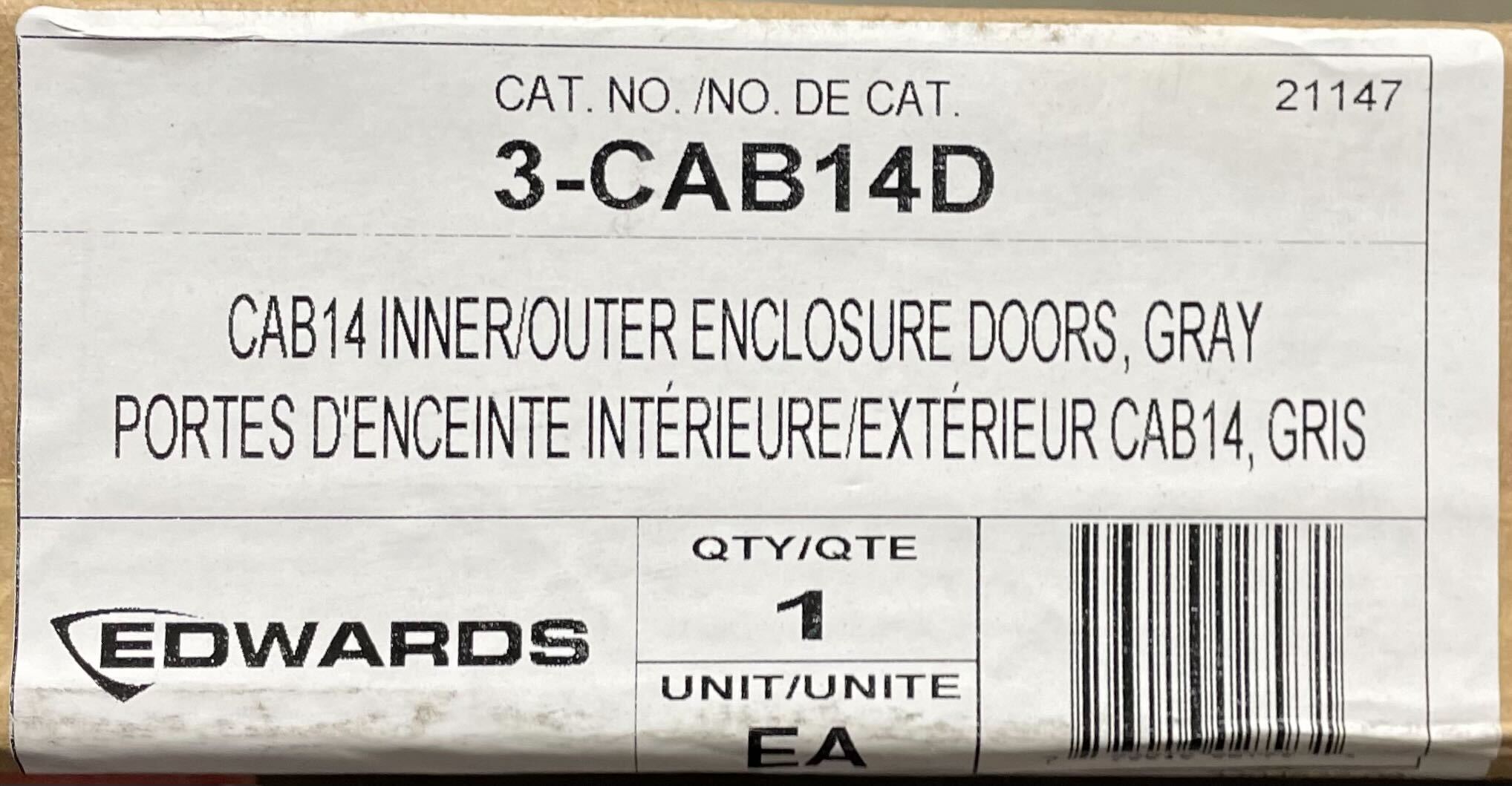

Edwards 3-CAB14D — the inner and outer doors for the EST3 3-CAB14B lobby enclosure, supplied as a pair.
This is a two-door item, not one door. Edwards ships EST3 lobby enclosure back boxes, doors and chassis units separately, so the 3-CAB14B wallbox arrives with no door at all. The outer door is the contoured one with the integral viewing window that keeps control and display modules readable while the cabinet stays secure; the inner door sits behind it. Either can be hung for right or left hand opening.
- Catalogued by Edwards as Inner and outer doors for 3-CAB14B
- Outer door carries an integral viewing window
- #14 AWG cold rolled steel with textured gray baked enamel
- Red outer door is ordered as 3-CAB14DR
- Shipping weight 15 lb (6.8 kg)
- The matching 3-CAB14B wallbox holds two chassis of seven local rail module spaces
Order the size that matches the box. 3-CAB7D is the door set for the seven-module 3-CAB7B and ships at 10 lb; 3-CAB21D fits the 3-CAB21B. The -E versions are the EN 54 and CE certified doors. The back box itself, 3-CAB14B, is a separate purchase and is not included here.
