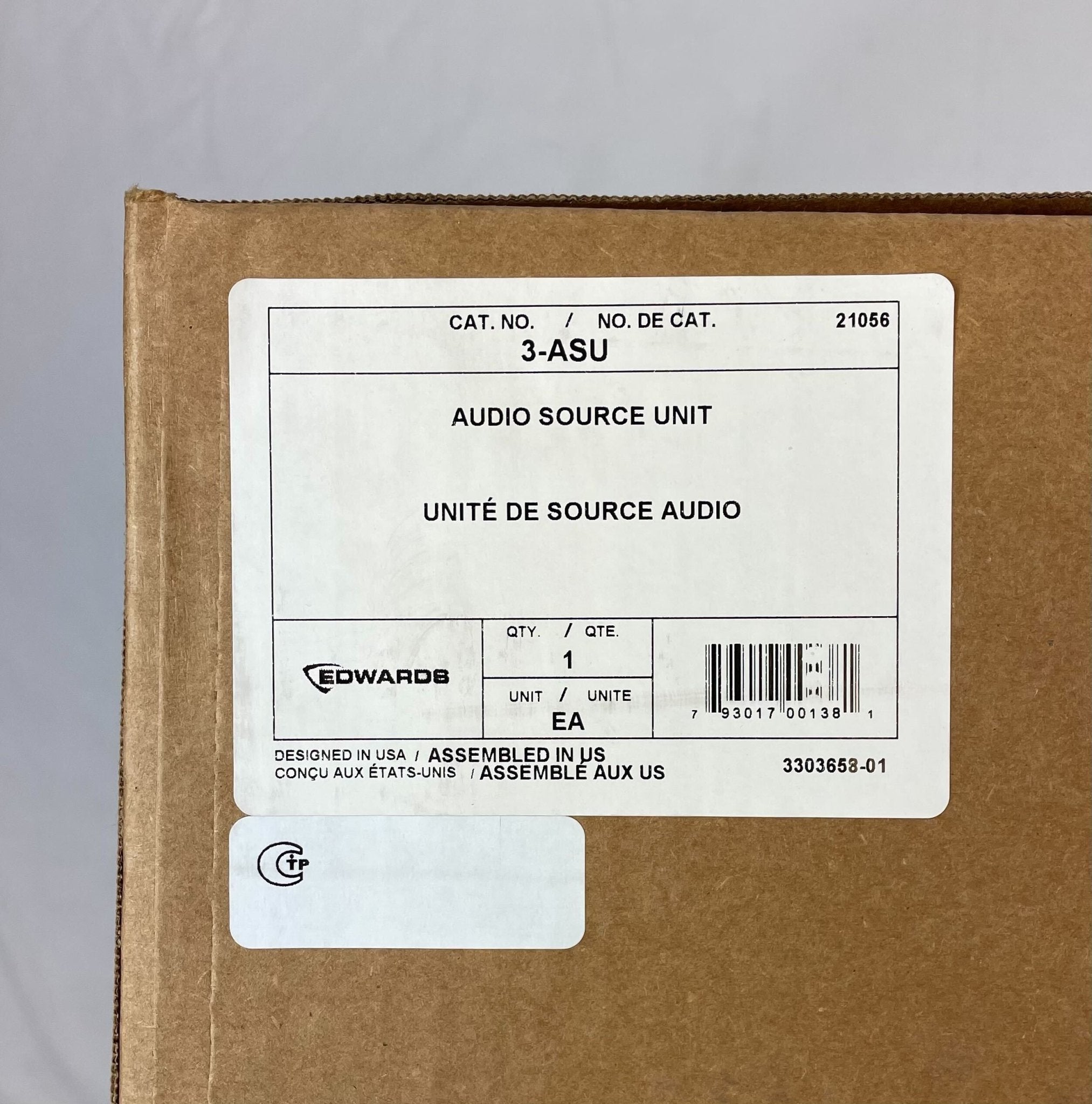

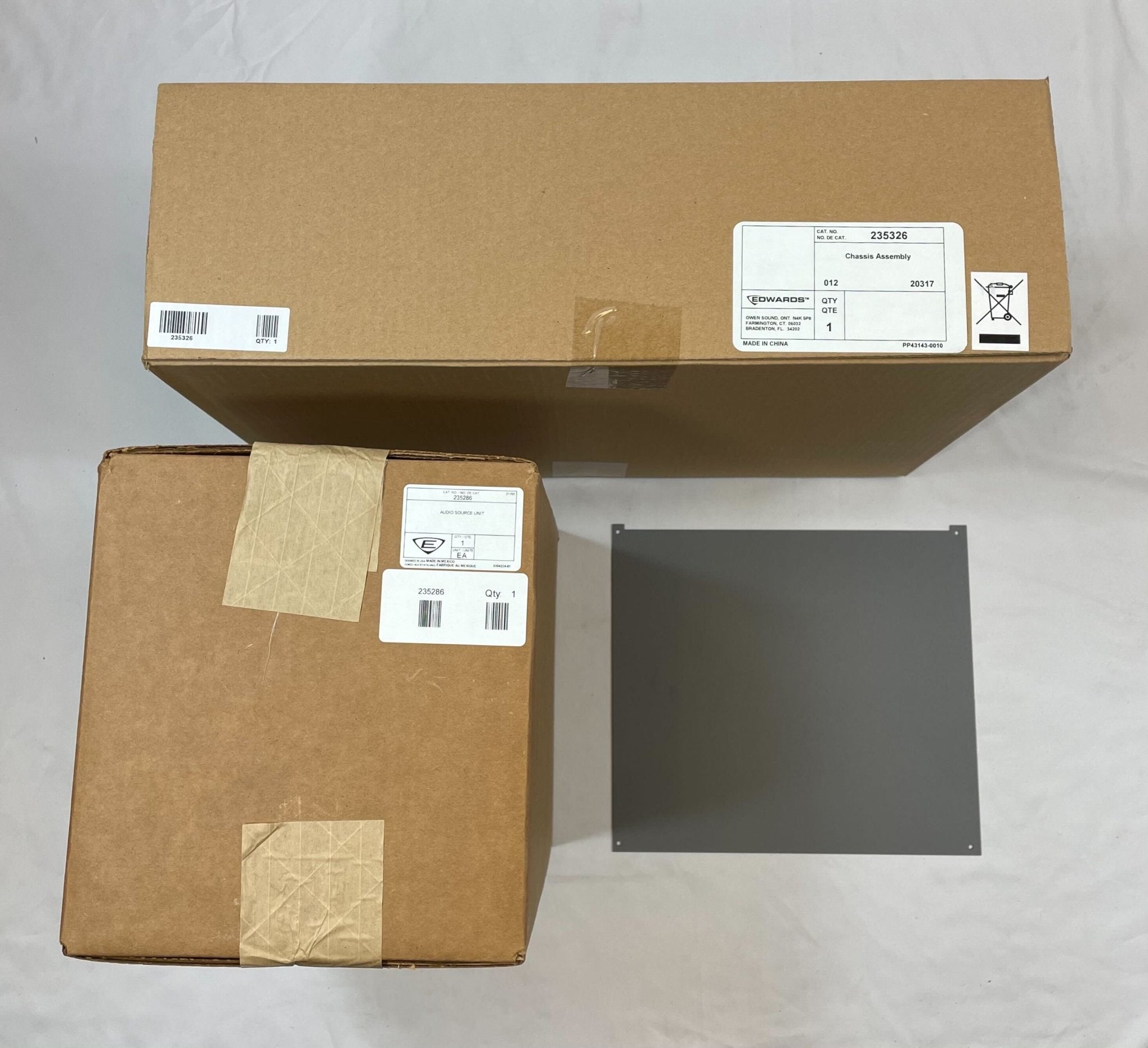

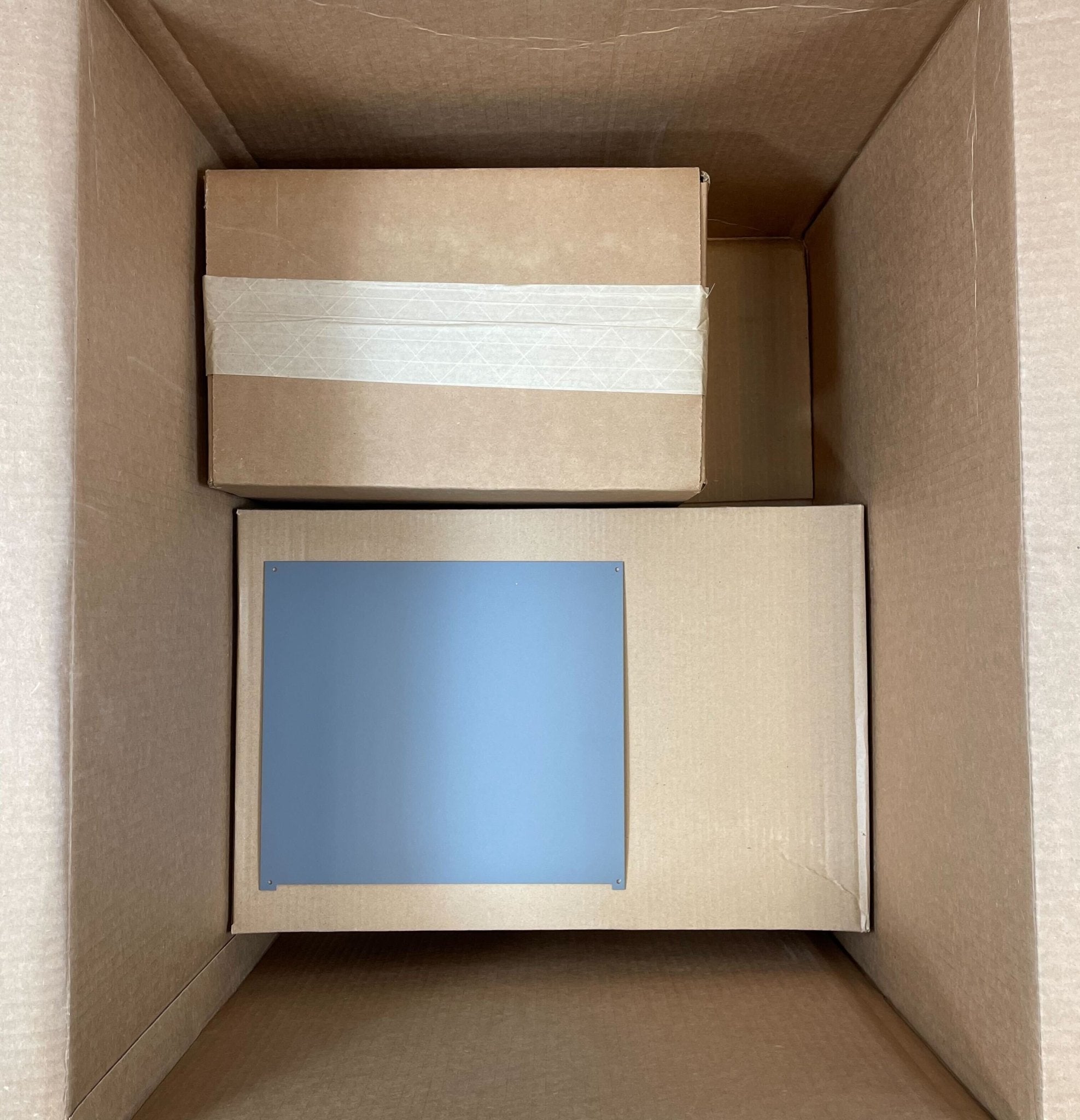

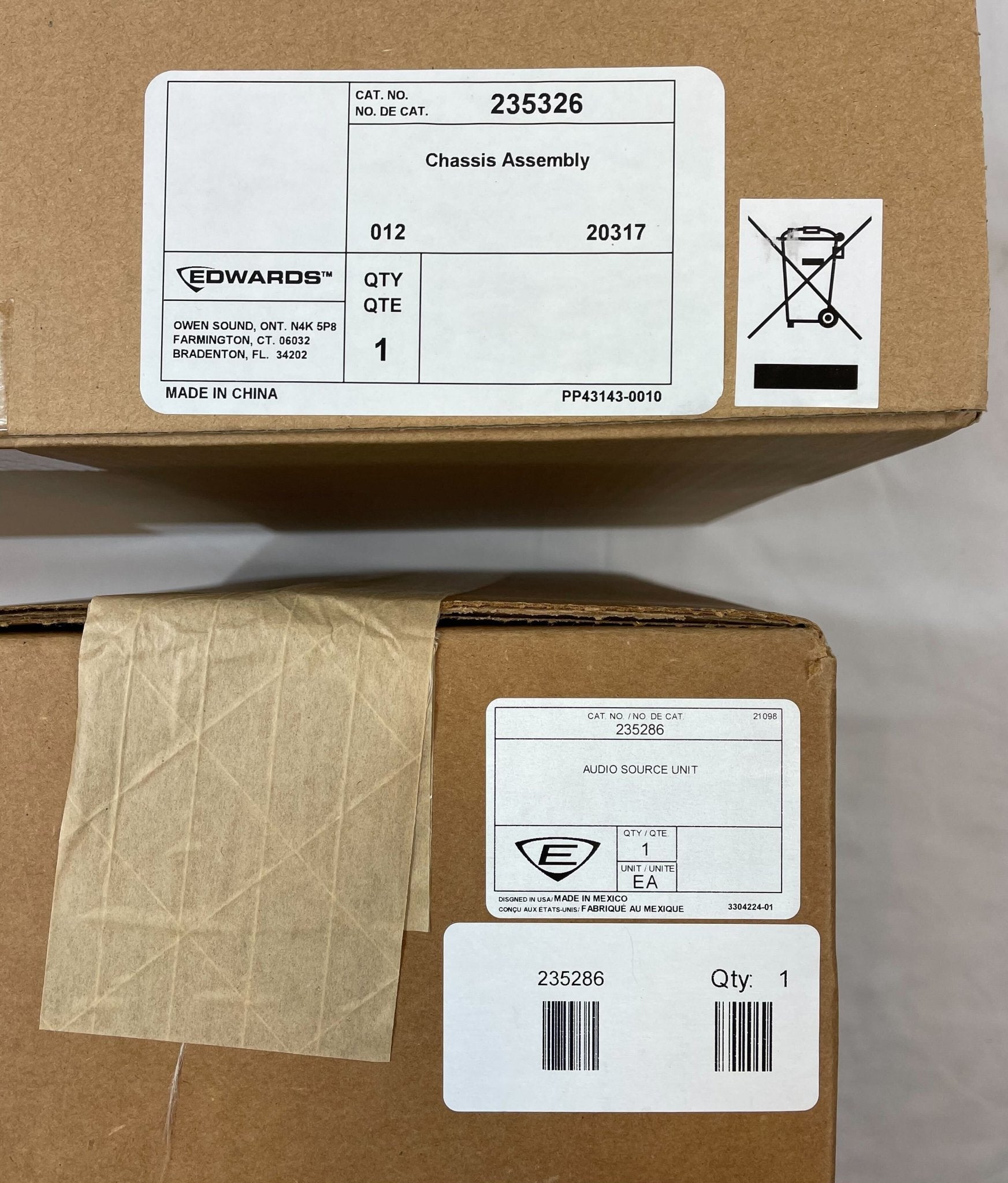

Edwards 3-ASU is the audio source unit for EST3 systems. It converts analog audio to digital, holds stored tones and messages, and provides a local paging microphone, delivering eight channels of digital audio to 3-ZA rail amplifiers. The 3-ASU is supplied with a mounting chassis and an inner door filler plate, with no local rail module spaces, and installers use it at the main control panel for paging and emergency messages.
Specifications
| Audio channels |
8 digital channels |
| Message memory |
2 minutes standard, expandable to 100 minutes with 3-ASUMX/100 |
| Message count |
Up to 255 messages, 40 seconds maximum each |
| Inputs |
Local microphone, remote microphone, one MNEC audio input |
| Paging controls |
Six LEDs and five switches, VU display |
| Mounting |
One chassis space in an EST3 lobby enclosure |
| Current |
80 mA in alarm and supervisory |
| Ambient |
0 to 49 °C (32 to 120 °F), 93% RH non-condensing |
| Wire |
18 to 12 AWG, network data and audio risers |
| Shipping weight |
15 lb (6.8 kg) |
Features
- All Call, Page to Evacuation and Page to Alert switches cover most paging operations
- Tones and messages can be recorded on site or loaded from a library
- Supports mass notification / emergency communication (MNEC) configurations
- Related: 3-ASU/4 adds four local rail module spaces
