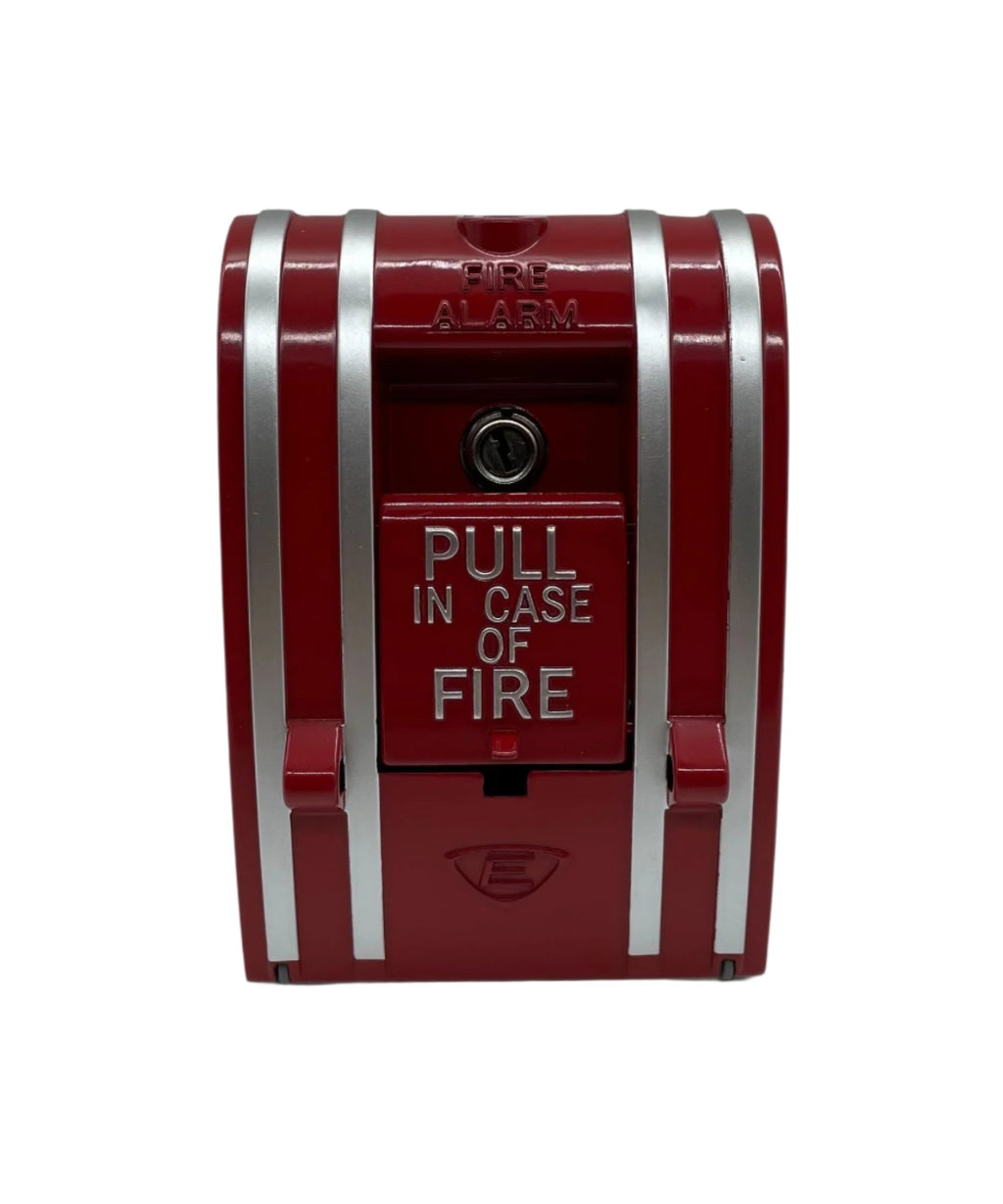

Pulling the lever on the Edwards 270P-SPO pre-signal station sounds an alarm on all pre-signal indicating devices, alerting staff first. An authorized person then inserts a key and turns it to start a general evacuation alarm. This non-coded, break-glass station belongs to the Edwards 270 Series and has die-cast metal construction.
Key Features
- Pre-signal operation: the lever pull gives a staff alert, and a key turn starts general evacuation
- Break-glass, single-action pull lever
- Single-pole, open-circuit (normally open) contacts

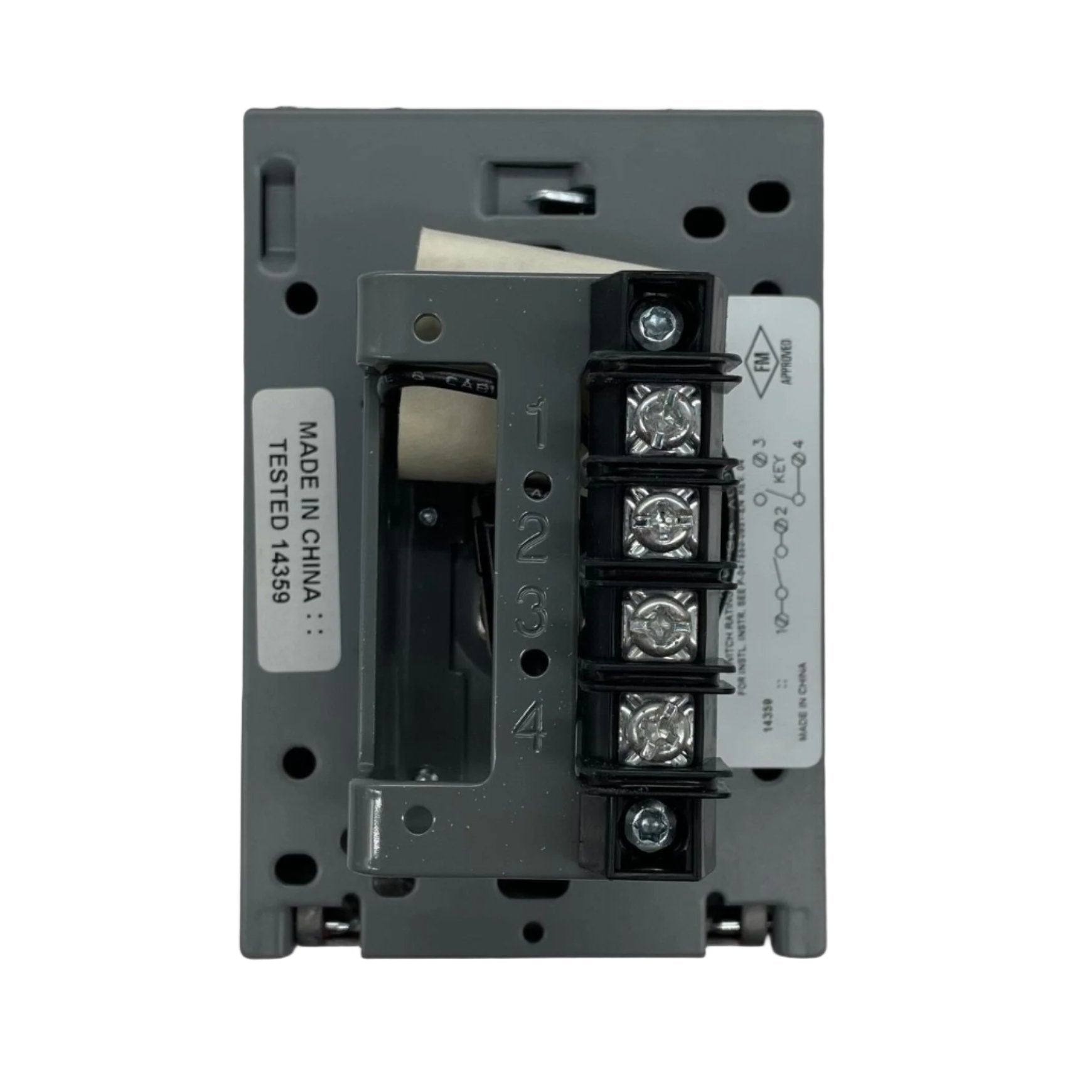

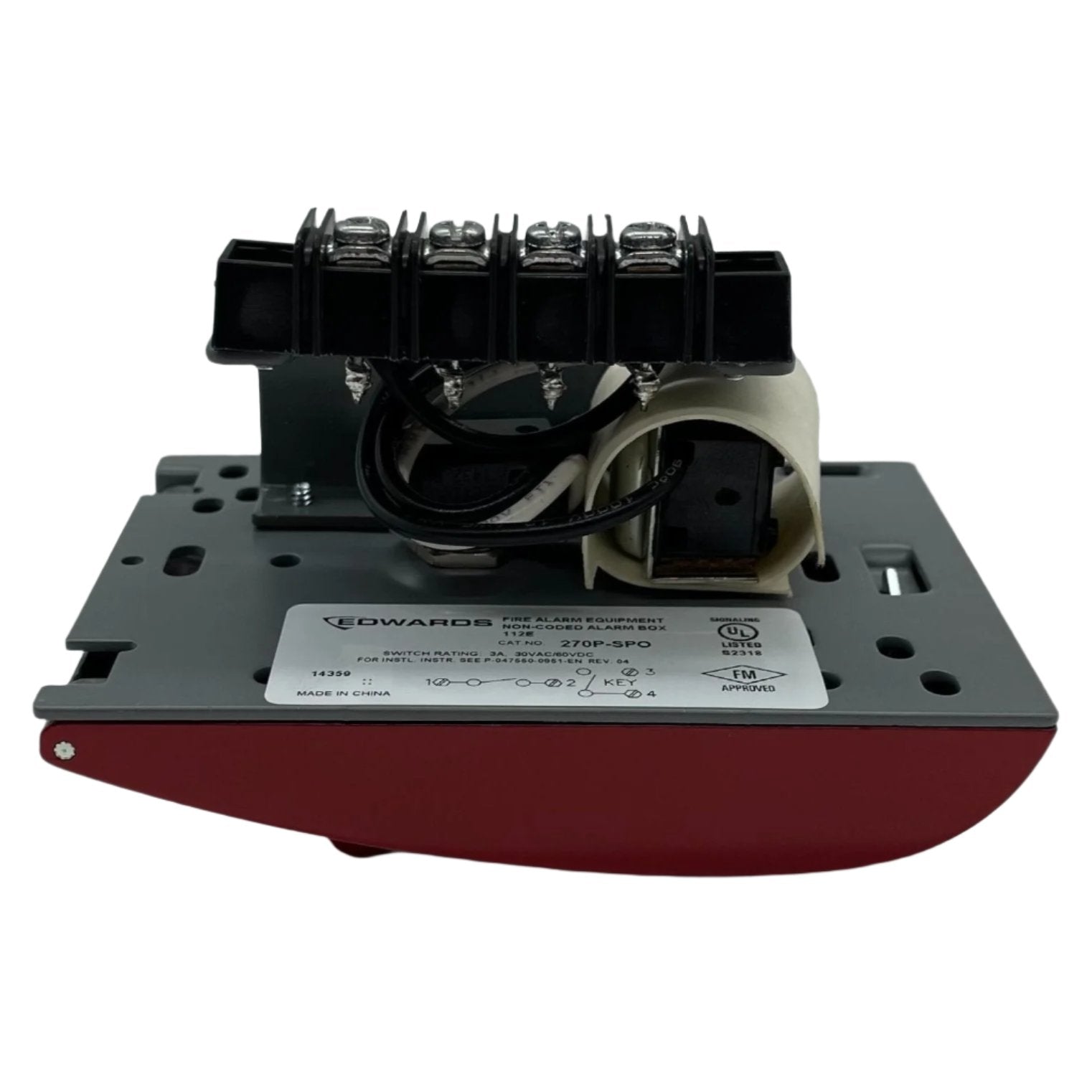

- Screw terminals for field wiring
- Pull force under 5 lb, which complies with ADA
- Solid die-cast metal construction in fire alarm red
Specifications
-
Manufacturer: Edwards
-
Part Number: 270P-SPO
-
Series: 270P (pre-signal)
-
Type: Non-coded, break glass manual station
-
Contacts: Single pole, open circuit (N.O.), with pre-signal switch
-
Field Connections: Screw terminals
-
Construction: Die-cast metal, fire alarm red with aluminum strips
-
Marking: "Fire Alarm"; handle marked "Pull in Case of Fire"
-
Mounting: Flush on a 4 in square box with single-gang plaster cover, or surface with the P-027193 cast box or P-039250 steel box housing
