Edwards 270A-SPO — non-coded single action break glass manual fire alarm station in die-cast metal, with single pole open circuit contacts and factory wire leads.
Strike the glass, pull the lever, and a single pole contact closes on a conventional initiating circuit. Every character of the number comes from the ordering table. The A is the field connection and not a generation: the basic 270 Series ships with screw terminals and the 270A Series with wire leads. SP is single pole and O is open circuit.
- Single action break glass operation, single pole open circuit contacts

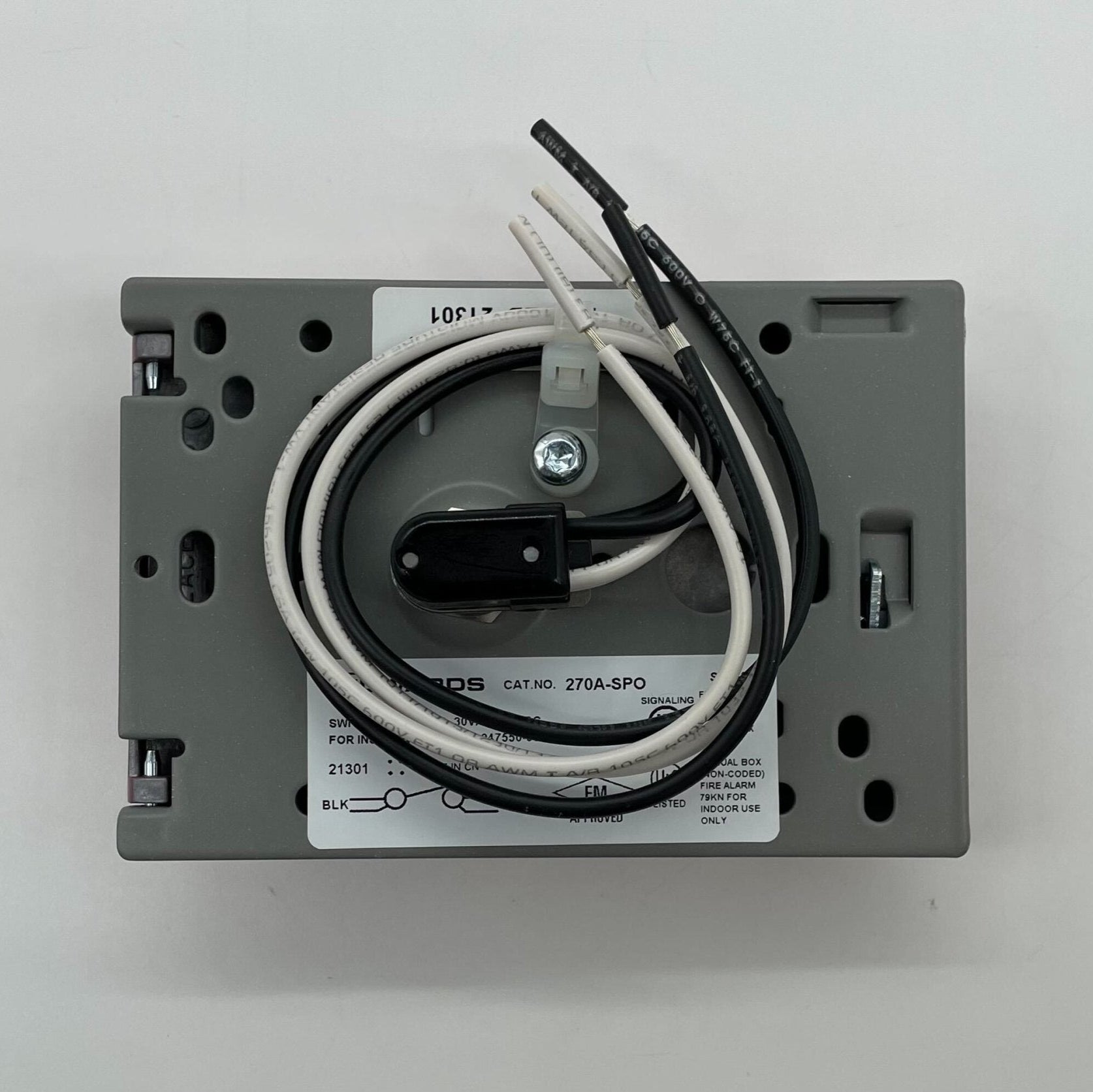

- 6 in. (150 mm) wire leads; no screw terminals on this catalogue number

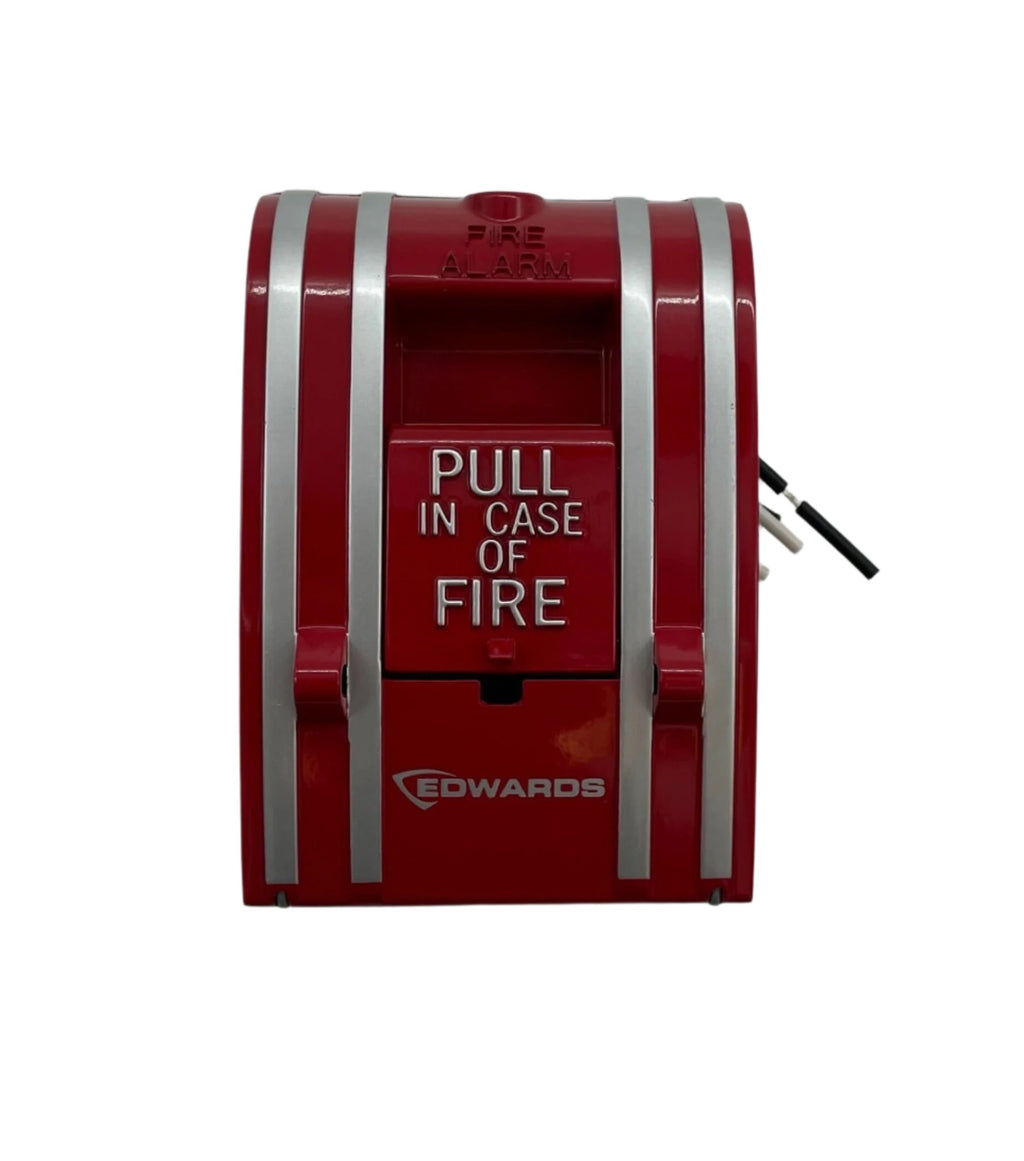

- Die-cast metal, fire alarm red with aluminum strips, marked Pull in Case of Fire
- Pull force under 5 lb, which Edwards states complies with ADA
- Flush on a 4 in. square box with single gang plaster cover; surface on the P-027193 cast box or P-039250 steel box housing

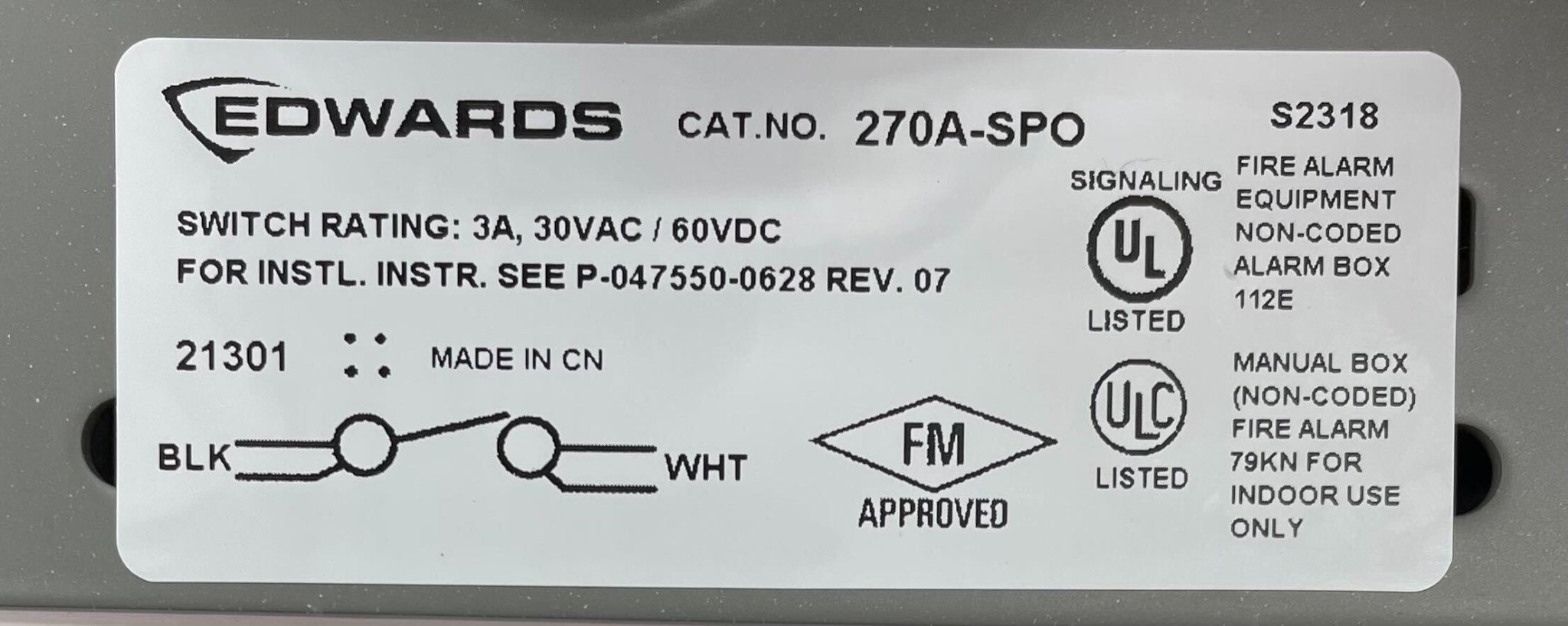

- UL file S2318, CSFM 7150-1657:0111, MEA, FM Approved
The siblings differ by one column each. 270-SPO is this station with screw terminals instead of wire leads, and 270A-DPO the wire lead version with double pole contacts. 270-DPO-L is marked Local Alarm, and 270P-SPO and 270P-DPO are the pre-signal stations.
