Edwards 1076W-M 1"In. Dia., Recessed Steel Door, Wide Gap, Spdt, Brown

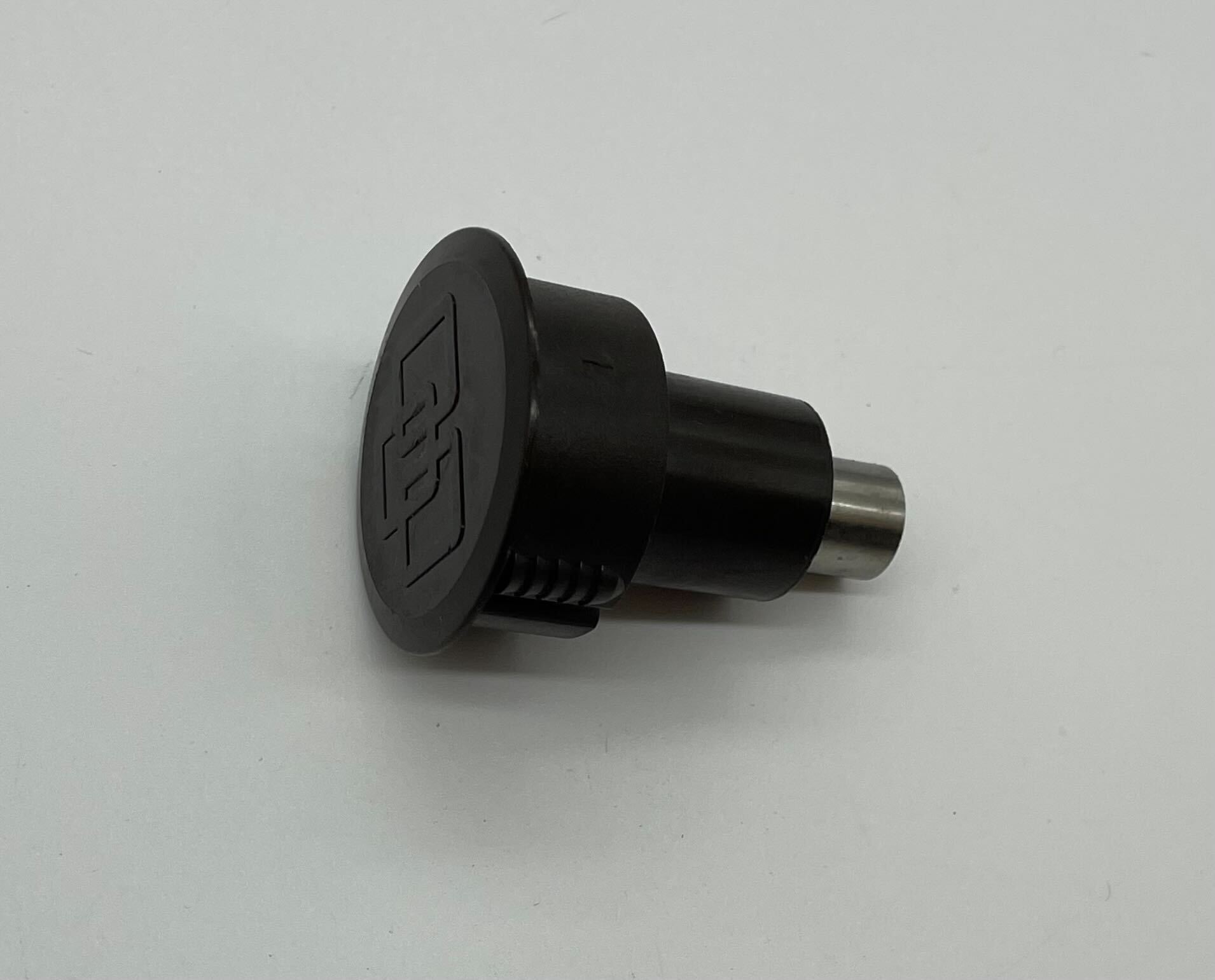

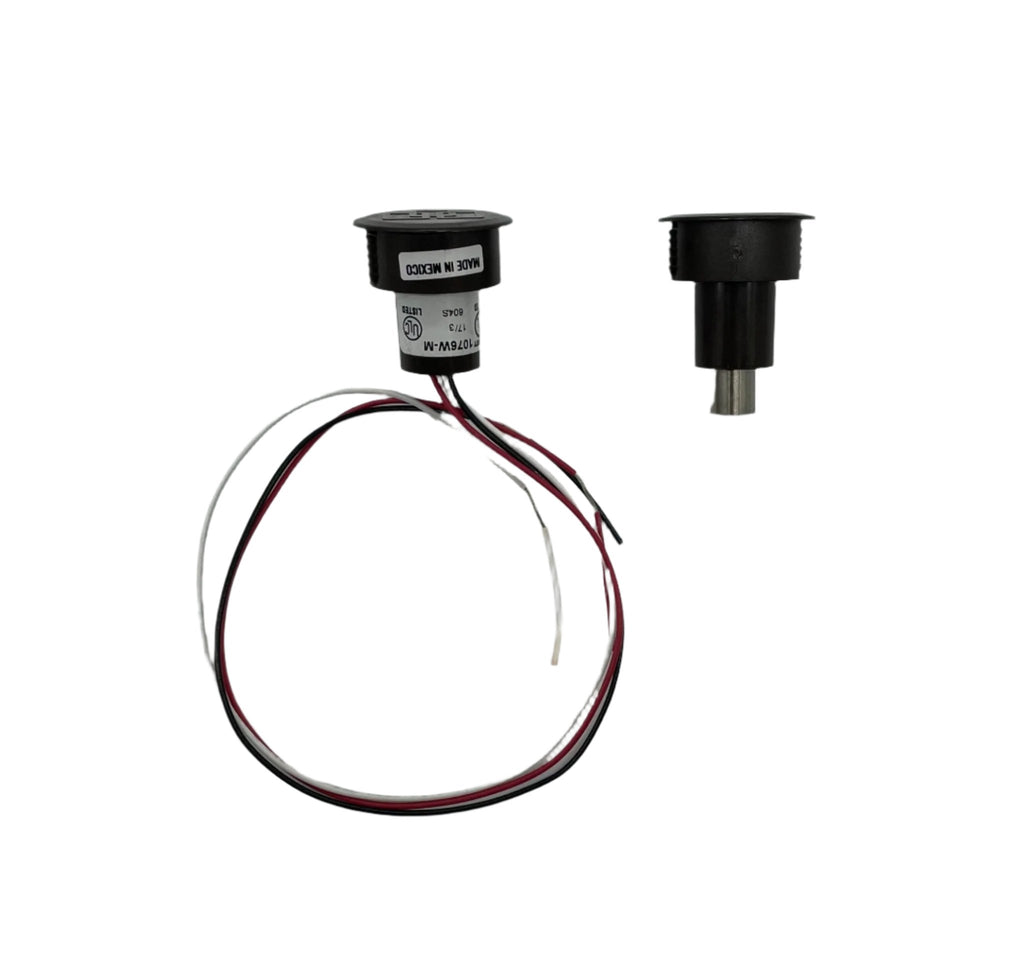

Recessed magnetic contact for steel doors, 1 in. diameter, with wire leads. The 1076W-M is the wide-gap (up to 1 in.) SPDT version in brown; SPDT lets it be wired as an open or closed loop. The housing has ribbed sides for a press fit without glue and isolates the magnet from the surrounding steel.
Key Features
- Designed for mounting in steel doors and frames
- Wide gap: up to 1 in.
- SPDT contact (open or closed loop)

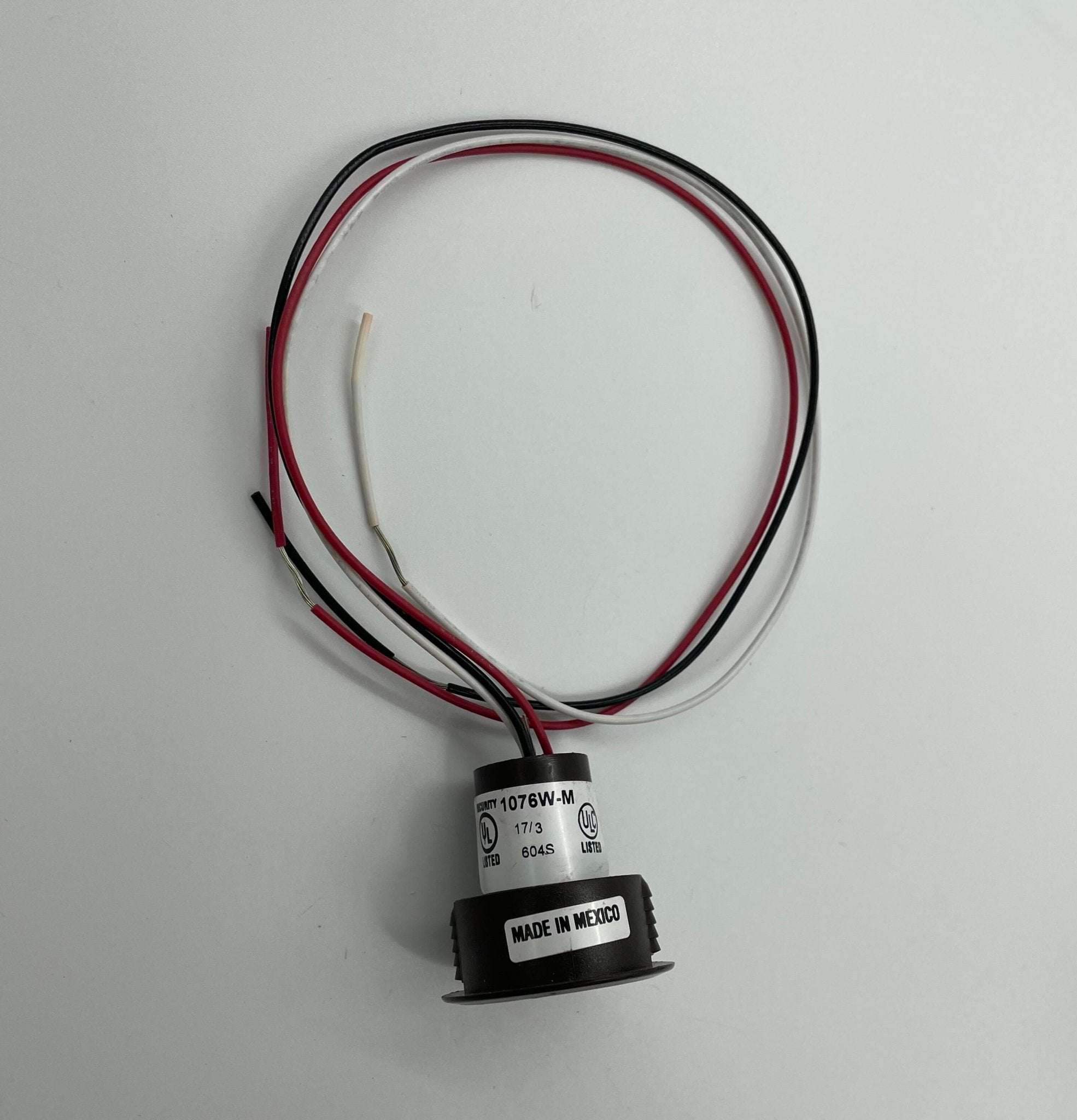

- 1 ft #22 wire leads
- Unibody housing with flexible ribbed sides, flame-retardant ABS
- UL / cUL
Specifications
| Electrical configuration |
SPDT |
| Gap distance |
Up to 1 in. |
| Voltage |
30 VAC/VDC max. |
| Current |
0.25 A max. |
| Power |
3.0 W max. |
| Dimensions |
1.125 in. L x 1.125 in. dia. (29 x 29 mm) |
| Color |
Brown |
| Lead type |
1 ft #22 wire |
