Eaton WBB-R Waterproof Back Box for Mounting Horn Strobes, Red

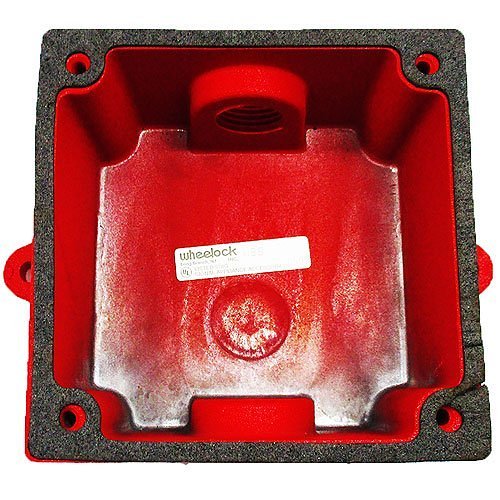

The WBB-R is the red version of the Wheelock WBB weather-resistant backbox. It is a die-cast housing with a threaded conduit hole and a knockout for outdoor surface mounting, painted to match the signal. Eaton lists it for Wheelock Series 31T, 43T, AHWP, ET-1010, MB and MT4 appliances, and the MAX industrial strobes can also be mounted on it.
Key Features
- Die-cast housing for outdoor applications
- Threaded conduit hole (tapped for 1/2 in. conduit) plus 1/2 in. knockout
- Painted to match the signal (red)
- Surface-mount, exposed-conduit backbox for AHWP horns and ET-1010 speakers per the weatherproof appliances mounting table
Specifications
| Model |
WBB-R |
| Order code |
2959 |
| Finish |
Red |
| Construction |
Die-cast housing |
| Conduit entry |
Tapped for 1/2 in. conduit; 1/2 in. knockout |
Compatible With
- Wheelock Series 31T
- Wheelock 43T
- Wheelock AHWP weatherproof horns
- Wheelock ET-1010 speakers
- Wheelock MB motor bells
- Wheelock MT4
- Wheelock MAX strobes (AC-MAX / DC-MAX)
