Wheelock STH-2R Red Cluster Speaker System with 2 horns

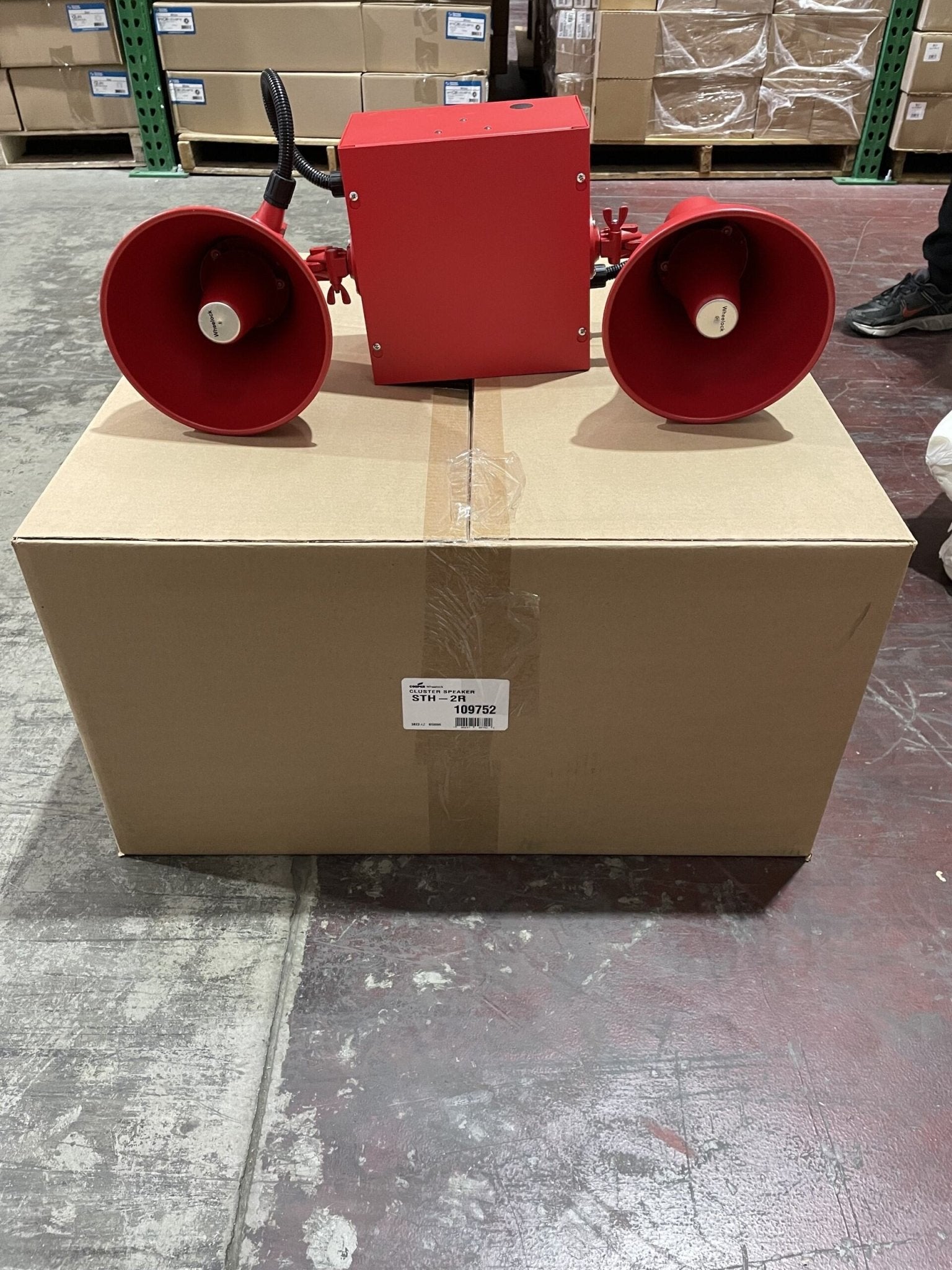

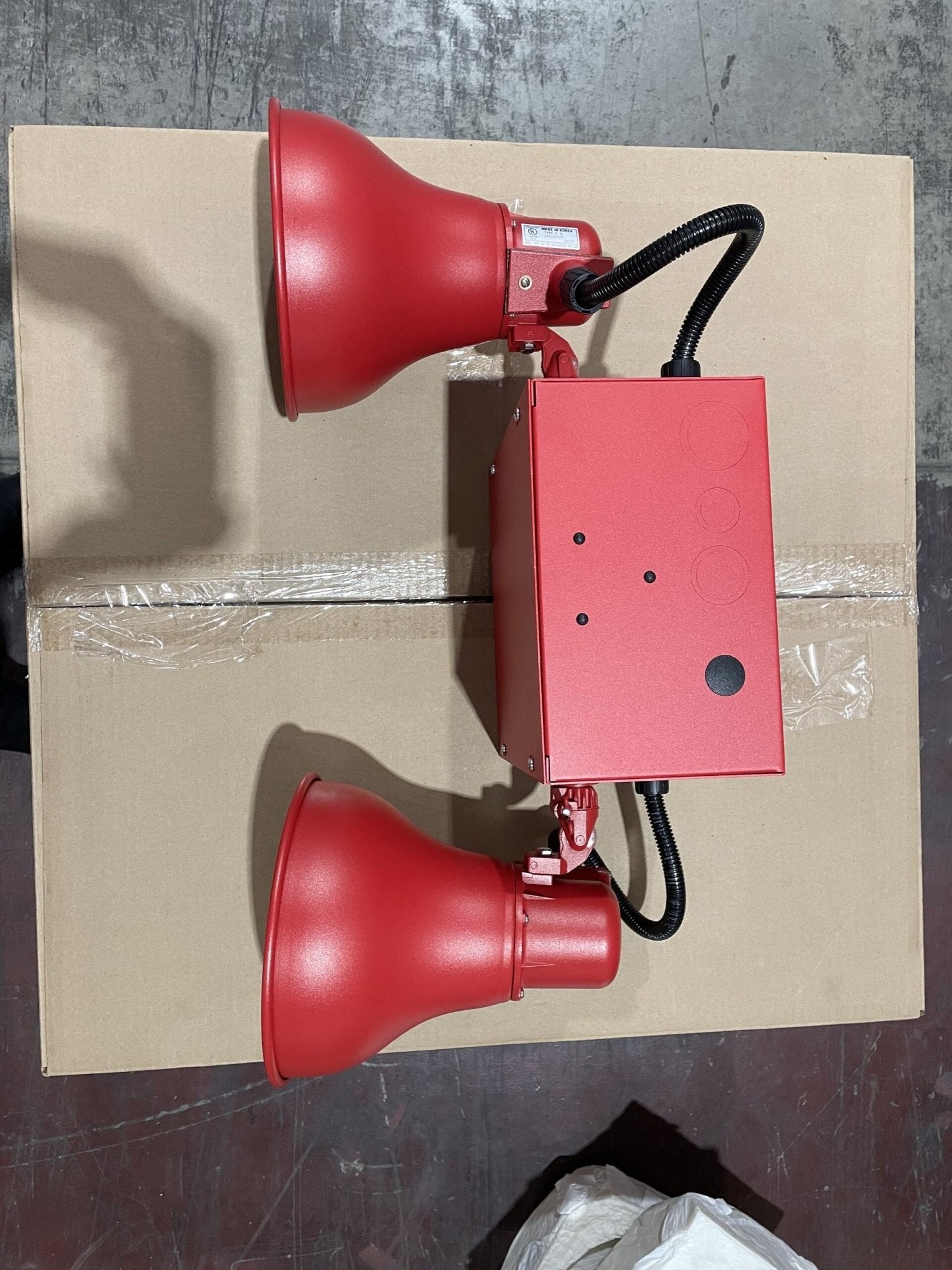

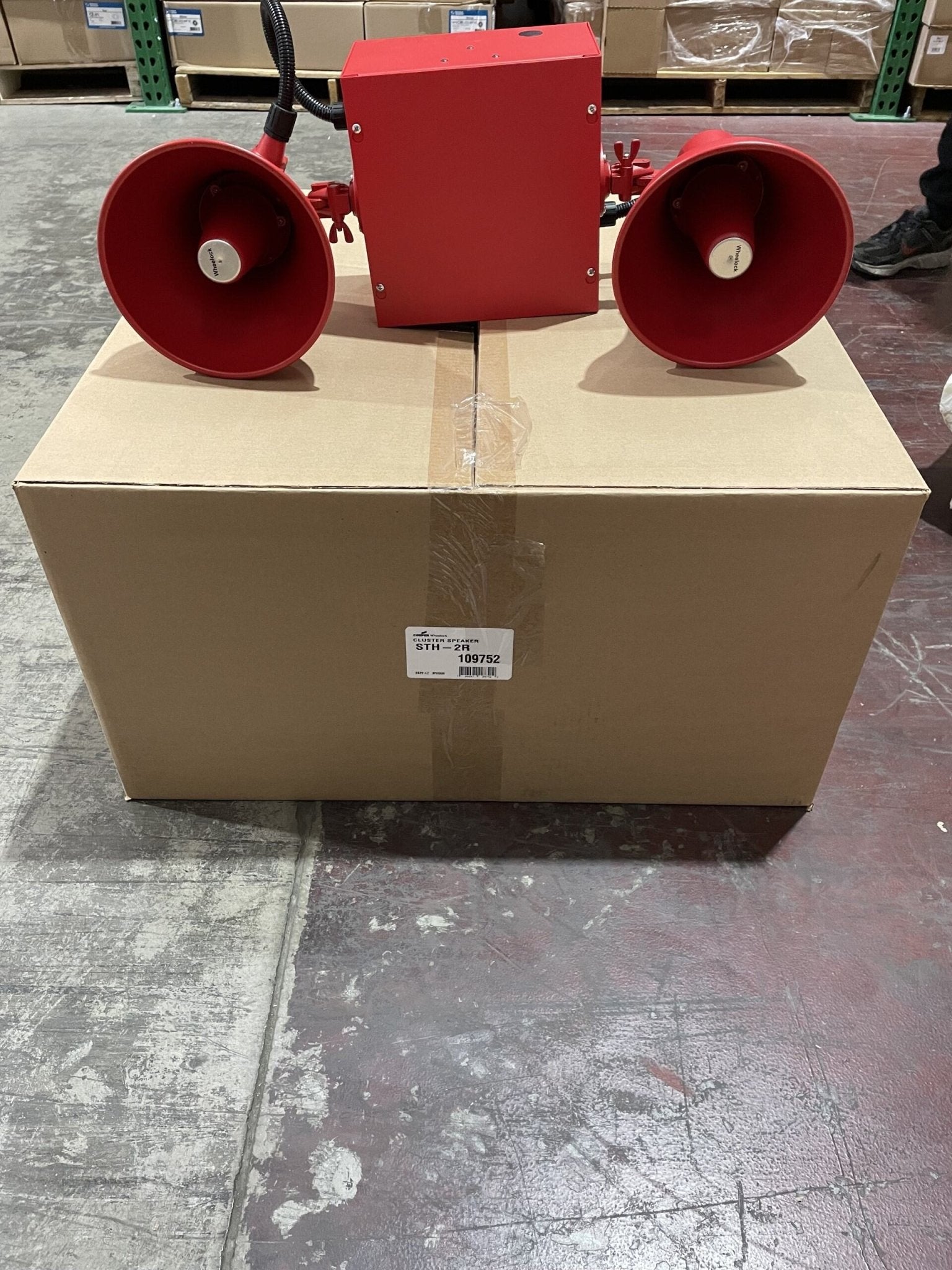

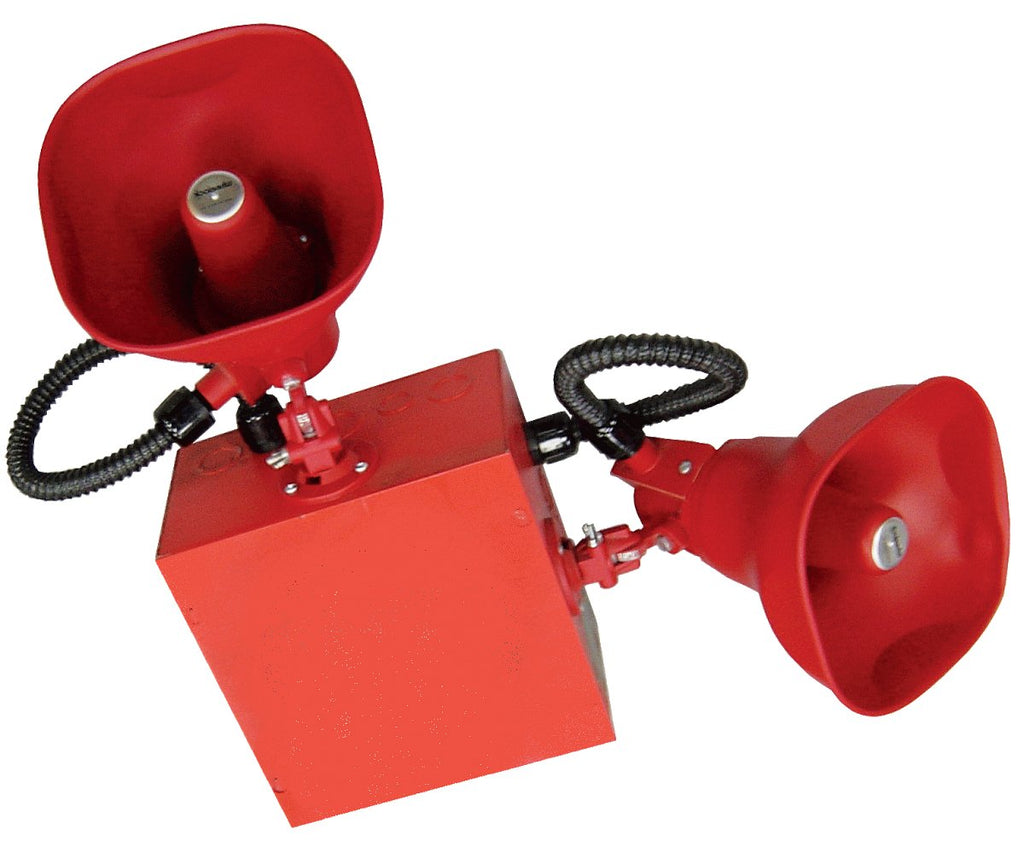

The STH-2R is a Wheelock cluster speaker: two STH-15SR supervised horn loudspeakers factory-mounted on a red NEMA Type 1 steel enclosure. It is a speaker-only assembly (no strobe) for ceiling or wall mounting indoors in high ambient noise areas such as manufacturing and processing plants.
Key Features
- Comes fully assembled: two STH-15SR horns on a 10 x 10 x 6 in. steel enclosure
- Mounts to ceiling or wall, indoor use
- Each horn delivers up to 102 dB at 15 W at 10 ft
- Only one pair of wires needed for audio connections
- Horns have a built-in 25/70 V transformer with screwdriver-adjustable taps and swivel mounts
- Conduit knockouts for 1/2 in. or 3/4 in. coupling
- Horns comply with UL 1480; NFPA 72, NFPA 101, OSHA 1910.165
Specifications
| Model |
STH-2R |
| Order code |
9752 |
| Finish |
Red |
| Horns |
2 x STH-15SR (UL 1480) |
| Enclosure |
NEMA Type 1 steel, 10 x 10 x 6 in. |
| Horn power taps, 25 V |
0.48, 0.94, 1.8, 7.5, 15 W |
| Horn power taps, 70 V |
0.9, 1.8, 3.8, 7.5, 15 W |
| Horn frequency response |
400-14,000 Hz |
Compatible With
- 25 V and 70 V speaker circuits
