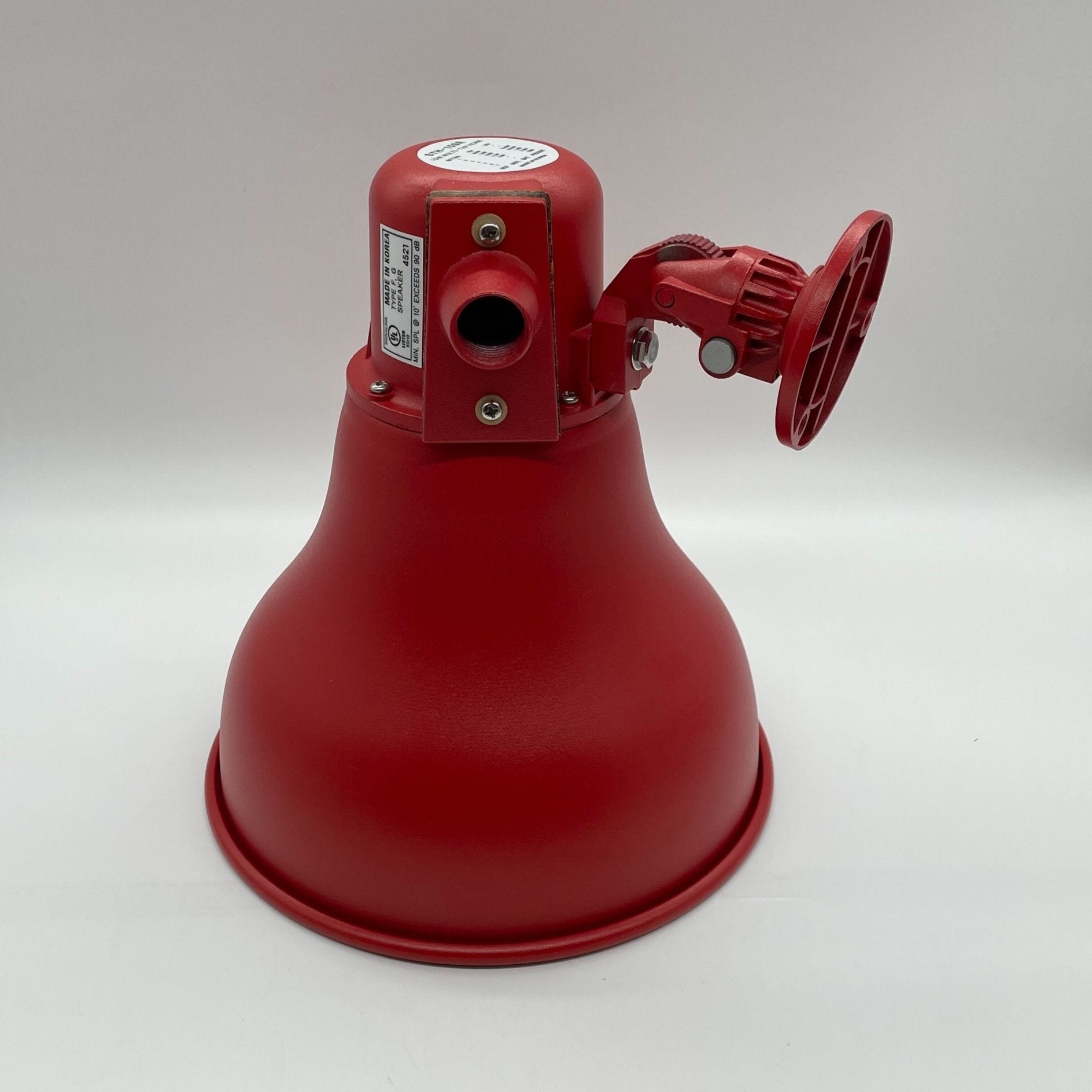

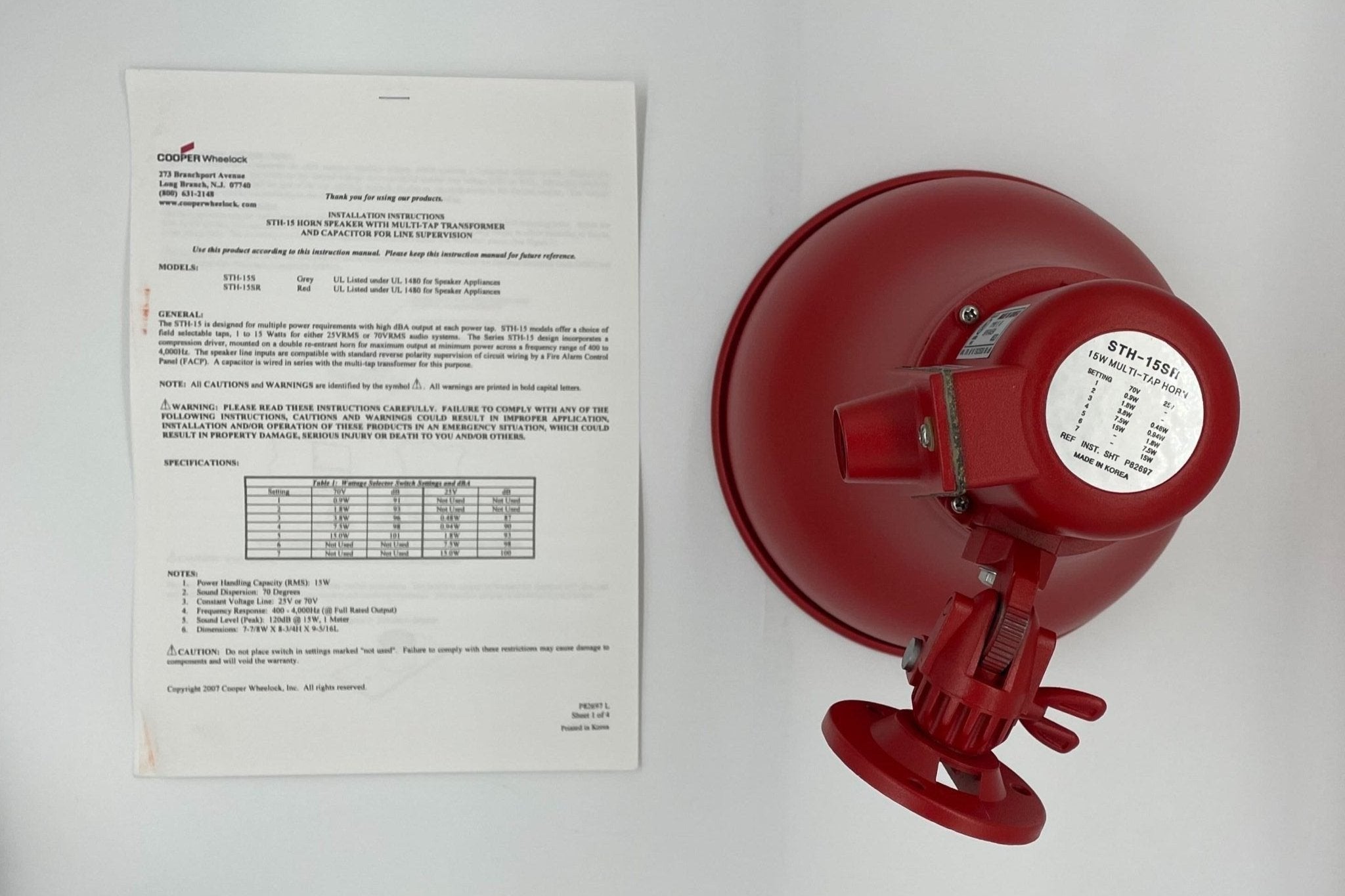

Eaton Wheelock STH-15SR — supervised re-entrant horn loudspeaker, 15 W, 25 V or 70 V line, red finish.

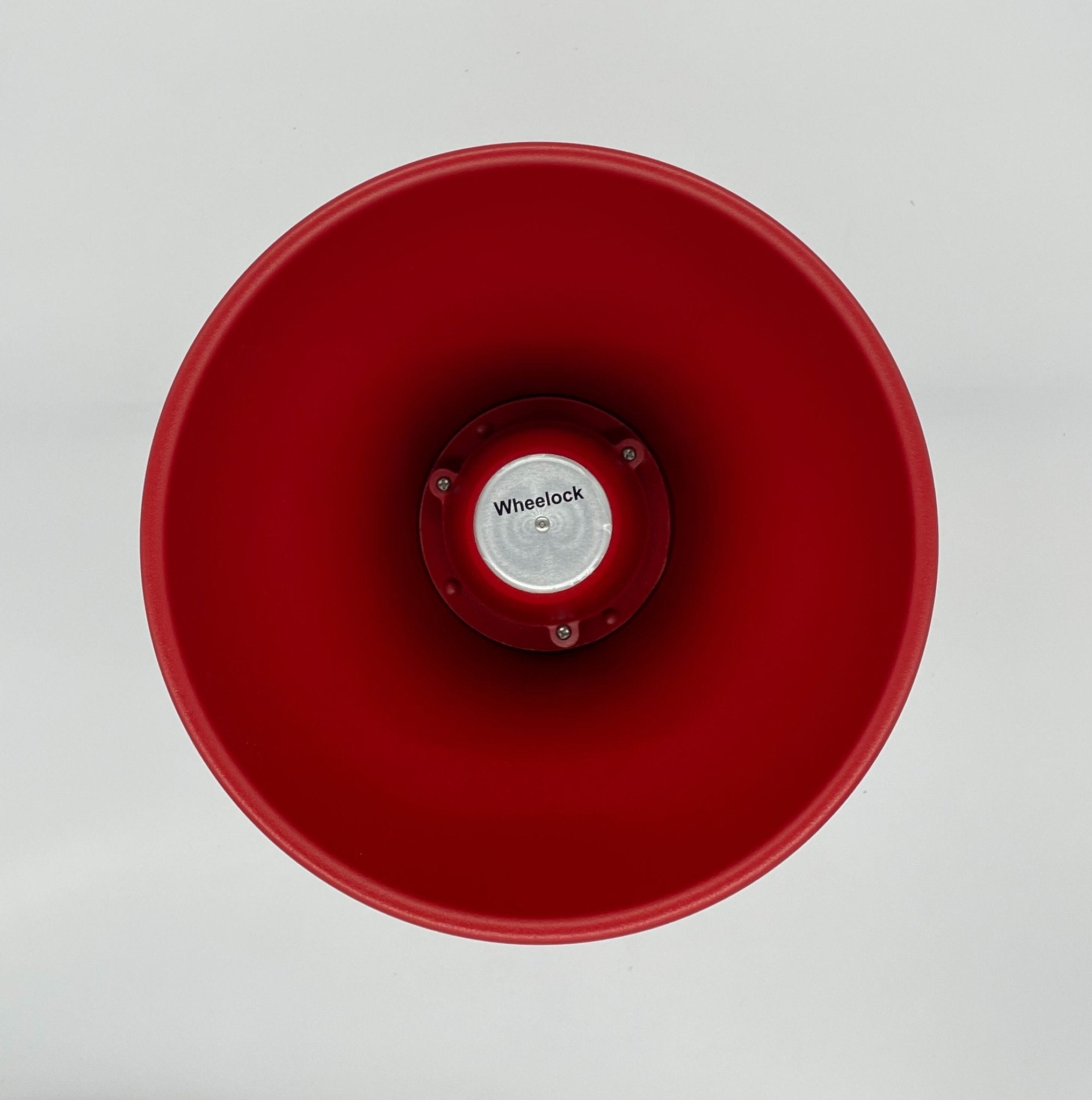

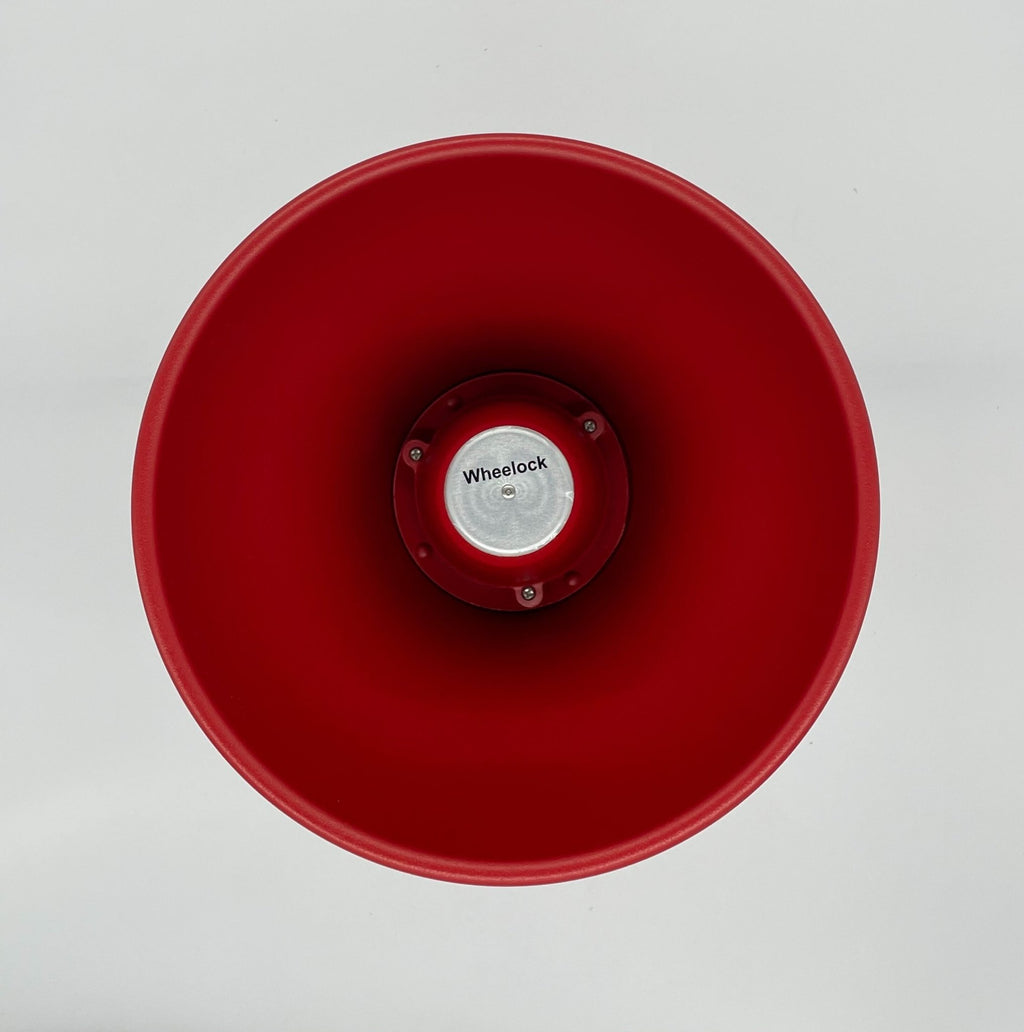

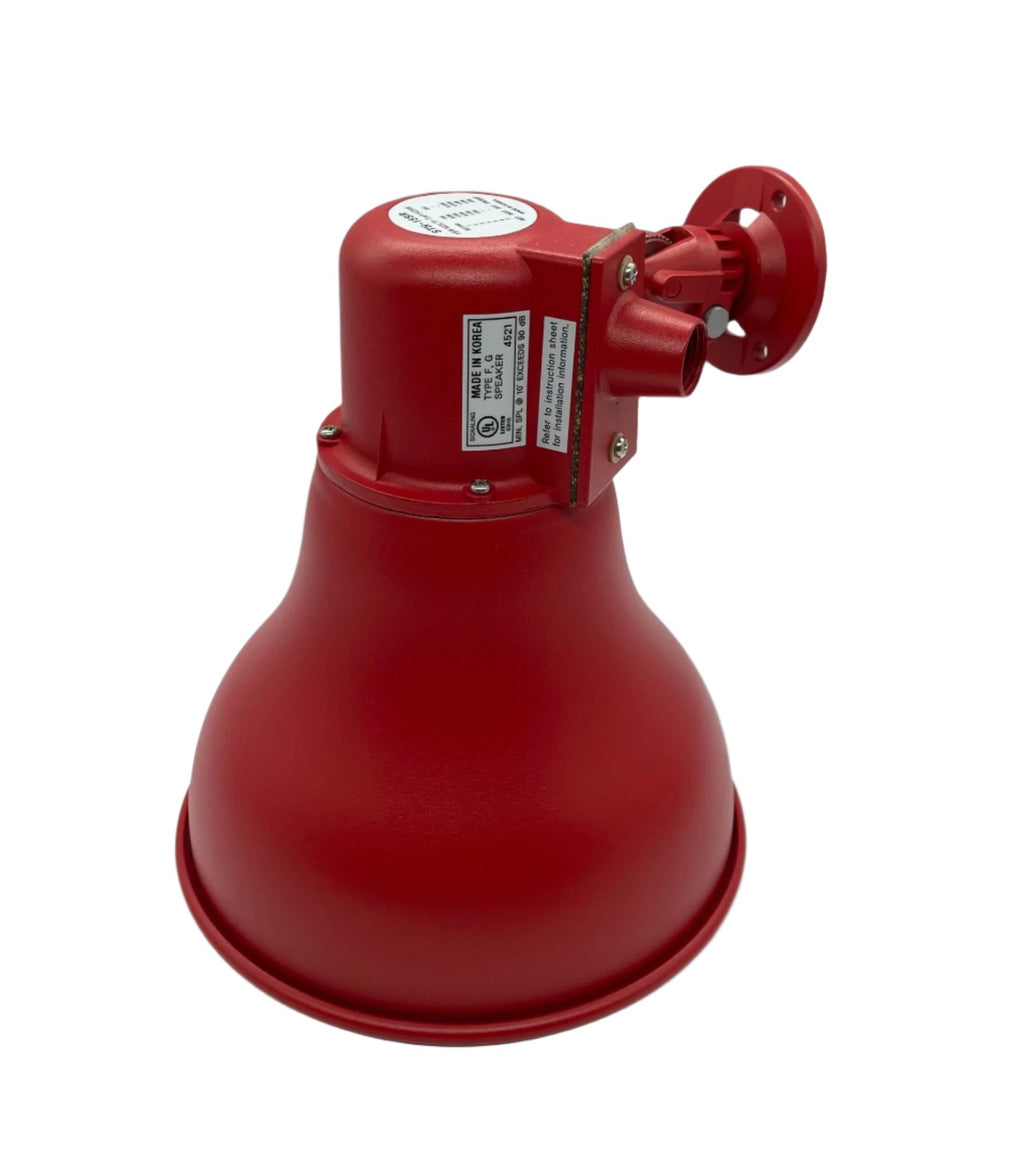

This is a projector speaker, not a flush wall appliance. A compression driver fires into a double re-entrant horn, which turns amplifier watts into sound pressure far more efficiently than a cone, so one unit covers a factory bay, tunnel or parking deck where a conventional speaker is drowned out. A capacitor in series with the transformer lets the panel supervise the circuit.
- 15 W RMS continuous power handling; frequency response 400 to 4,000 Hz
- Sensitivity 102 dB at 15 W measured at 10 ft; sound dispersion 70 degrees

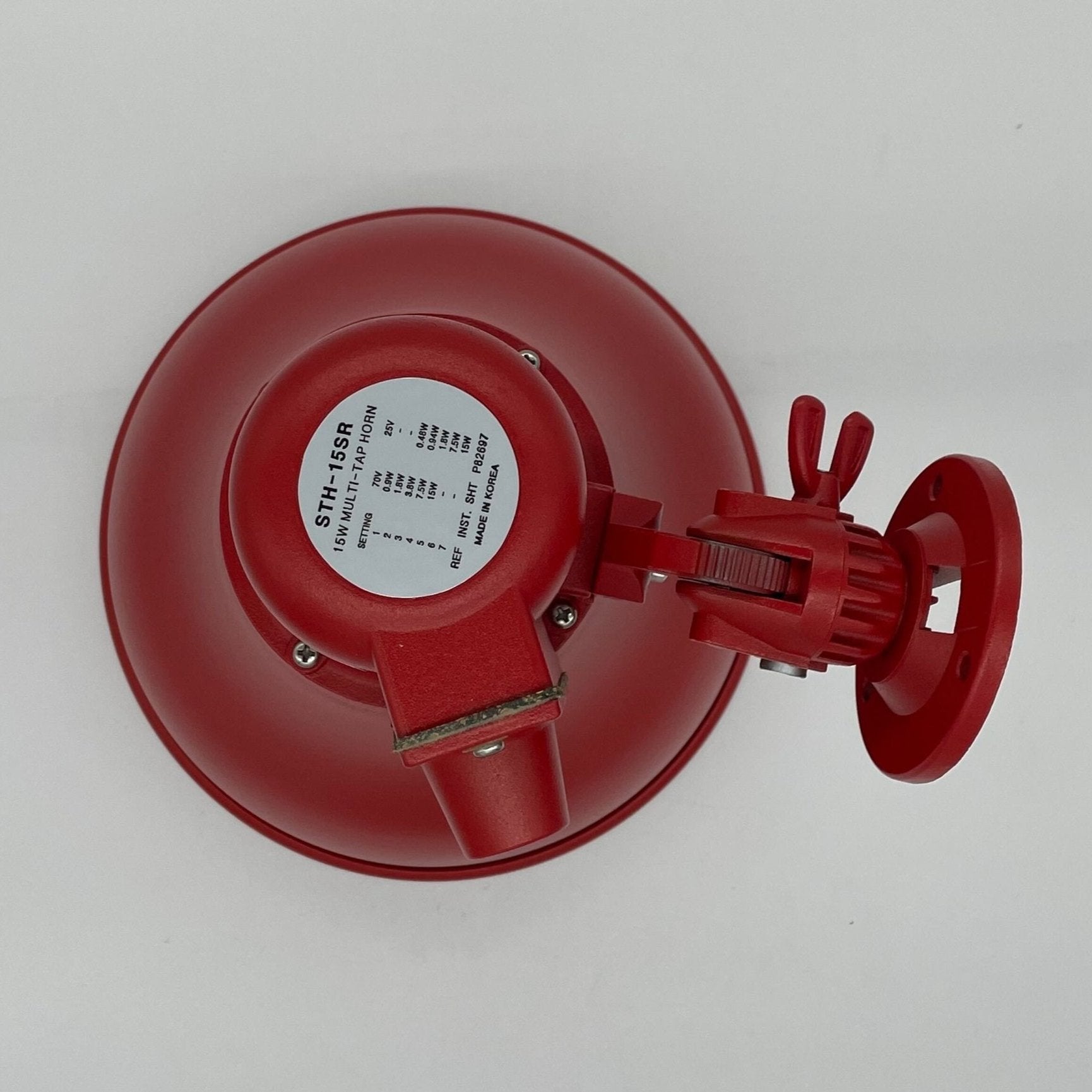

- Built-in 25 V / 70 V transformer, screwdriver-adjustable 7-position watt and impedance selector

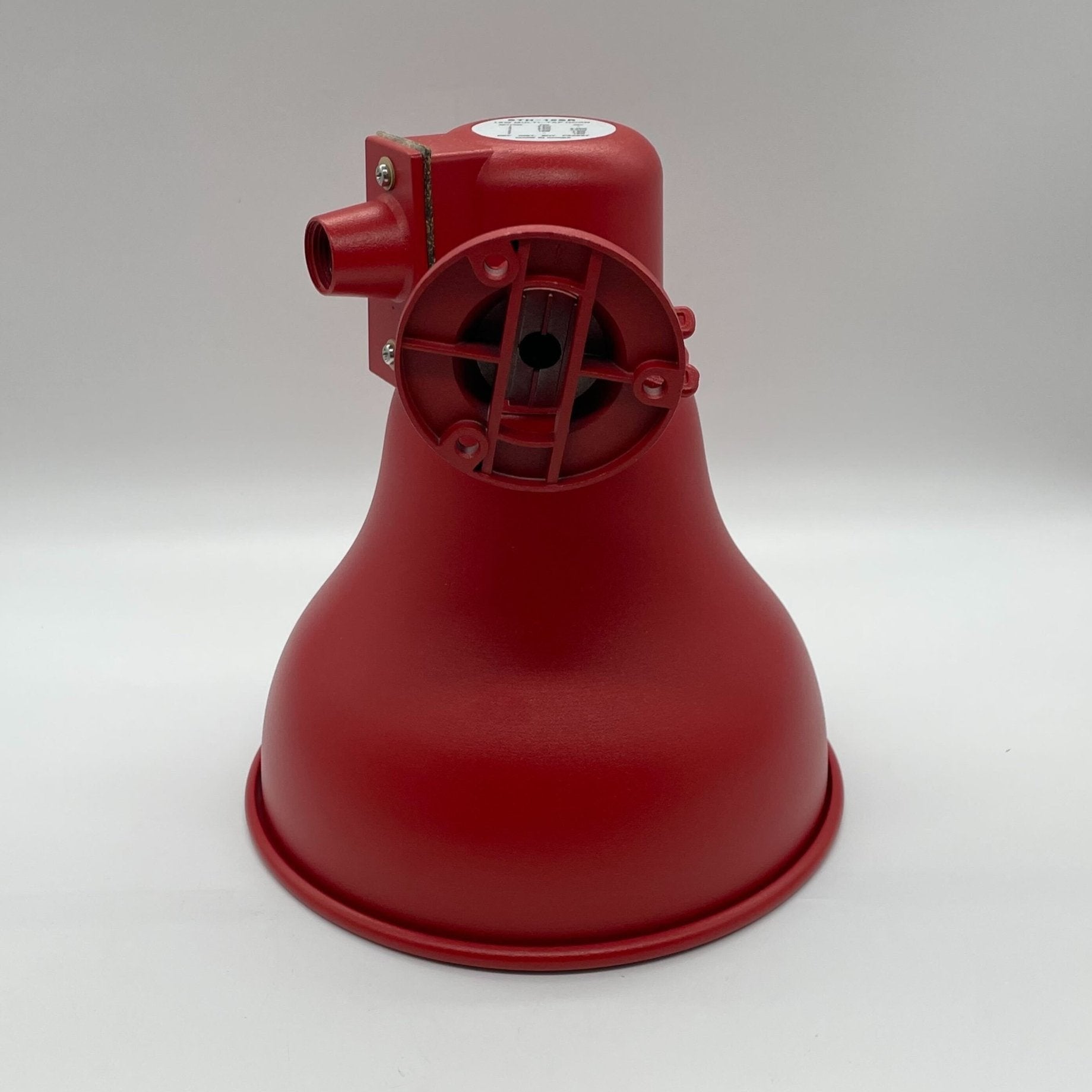

- Terminals recessed behind a vandal-resistant adapter for cable or conduit
- About 9.4 in deep × 9.3 in high × 8.7 in wide, 4.5 lb; UL 1480 and CSFM certified
STH-15S is the same speaker in gray, and STH-15SR-ULC is the ULC version on a separate data sheet. STH-2R, STH-3R and STH-4R are cluster assemblies holding two, three or four of these speakers with an Eluxa LED strobe.
FAQ
Does the STH-15SR work on 25 V and 70 V systems?
Yes. A built-in multi-tap transformer with a screwdriver-adjustable 7-position selector covers 0.48 to 15 W on 25 VRMS or 70 VRMS audio systems.
Can the speaker circuit be supervised?
Yes. A built-in capacitor is provided for line supervision.
Can it be installed outdoors?
Yes. The horn is weather-resistant aluminum with a reentrant acoustic path for indoor or outdoor emergency signaling.
How is it mounted?
The bracket adjusts in the horizontal and vertical planes and has banding slots for strapping to beams or pillars, as well as surface mounting.
