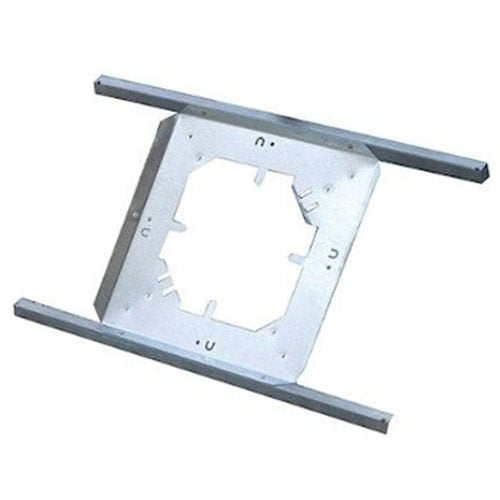

Eaton Wheelock SSB-4 is a steel speaker support bridge for mounting Wheelock 4-inch ceiling speaker assemblies into acoustic tile ceilings with tiles up to 24 in. wide. The bridge spans the ceiling grid and carries the back box, with provisions for four #8-32 J-nuts and seismic tabs for secondary support tie-off in six places.
It is used with Wheelock CH70, CH90, E70, ET70, E90, ET90 and ET-1080 series speakers and speaker strobes, and with Eluxa ceiling models including the ELFHNC, ELFHSC, ELHNC, ELHSC, ELSPKC, ELSPSTC and ELSTC.
Specifications
| Type |
Ceiling support bridge for 4-inch speakers |
| Order code |
3380 |
| Material |
Steel |
| Ceiling tiles |
Acoustic tile, up to 24 in. wide |
| Hardware |
Provisions for (4) #8-32 J-nuts |
| Secondary support |
Seismic tabs for tie-off, 6 places |
Installation notes
- ET Series flush ceiling mount: use a 4 in. square x 2-1/8 in. deep box with a 1-1/2 in. extension ring
- All other Wheelock 4-inch flush ceiling speakers: use a 4 in. square x 1-1/2 in. deep box with a 1-1/2 in. extension ring
- Not intended for use in hazardous locations as defined by the NEC and NFPA
Related models
- SSB-8: 8-inch ceiling support bridge
- CBB-8: 8-inch ceiling speaker back box
FAQ
Which speakers does the SSB-4 support?
Wheelock 4-inch ceiling speaker assemblies, including the CH70, CH90, E70, ET70, E90, ET90 and ET-1080 series and Eluxa ceiling models such as the ELSPKC, ELSPSTC and ELSTC.
What ceiling tiles does it fit?
Acoustic tile ceilings with tiles up to 24 in. wide.
Which back box is used with it?
For ET Series flush ceiling mounts, a standard 4 in. square by 2-1/8 in. deep box with a 1-1/2 in. extension ring. For all other Wheelock 4-inch flush ceiling speakers, a 4 in. square by 1-1/2 in. deep box with a 1-1/2 in. extension ring.
Is there a bridge for 8-inch speakers?
Yes. The SSB-8 is the 8-inch ceiling support bridge, and the CBB-8 is the 8-inch ceiling speaker back box.
