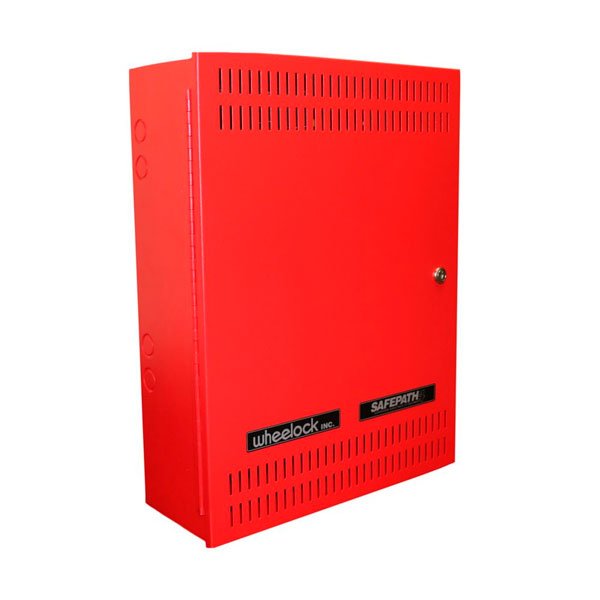

To add speaker and strobe capacity to a Wheelock SAFEPATH voice evacuation system, use the Eaton Wheelock SPB-80/4 Supervised Power Booster. This red steel enclosure adds 80 watts of supervised audio power and 4 amps of supervised strobe power. It extends SP40S or SP40/2 systems into larger buildings.
Key Features
- 80 W of supervised audio for live voice, prerecorded messages or background music
- Supervision stays active even while background music is playing
- 4 A of 24 VDC supervised, synchronized strobe power
- Speaker outputs are field selectable for 70 V or 25 V
- Several SPB-80/4 boosters can be interconnected for large installations
Specifications
-
Manufacturer: Eaton Wheelock
-
Part Number: SPB-80/4
-
Product Family: SAFEPATH accessory
-
Audio Output: 80 W supervised
-
Strobe Power: 4 A at 24 VDC, supervised and synchronized (two 2 A strobe circuits)
-
Enclosure: Steel, red
Compatibility
Designed to connect to the Wheelock SP40S or SP40/2 SAFEPATH panels. It accepts a 70 V or 25 V audio input from those panels.
FAQ
How is the SPB-80/4 activated?
The audio output is activated by applying 1V, 25V or 70.7V to AUD IN. The AUX IN is triggered by 8 to 33VDC at 10mA in NAC mode, or by a contact closure in CC mode.
What outputs does it provide?
One supervised audio circuit, selectable for 25 or 70.7 volts at 80W maximum, and two supervised visual circuits rated 2.0 amps at 24VDC each.
What power and battery backup does it need?
Input is 120VAC, 3.8A, 50-60 Hz, with 24VDC battery backup up to 33Ah.
What end-of-line resistor do the circuits use?
Both the audio and the visual notification appliance outputs use a 10K ohm, 1/2W EOLR.
