Eaton Wheelock SPB-320 — Series SPB supervised audio booster, 320 W across four 80 W outputs.

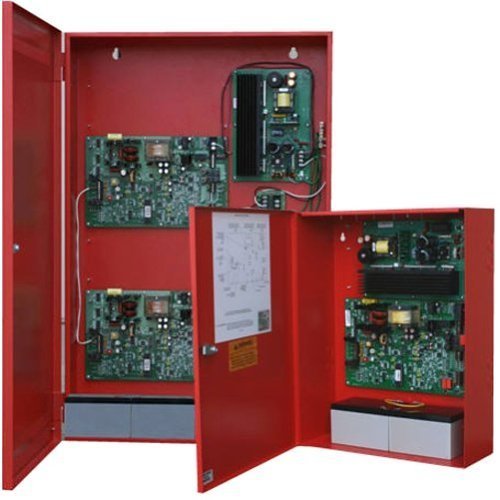

It is a booster amplifier, not a power supply: it adds speaker power where the head-end unit has run out of amplifier capacity, and it supplies no strobe power at all. The manual lists it as fully compatible with existing Safepath4 equipment. Internally it is two SPB-160 boards and two 27 VDC supplies in one enclosure. Wheelock is an Eaton brand; earlier product carries Cooper Wheelock marking.
- P/N 119918; four 80 W outputs, each 25 V or 70.7 V selectable, supervised, power limited
- Two audio inputs, 1 V, 25 V or 70.7 V, 1.2 W each
- 120 VAC, 7.4 A, 50–60 Hz input; accommodates up to a 33 Ah standby battery, though only up to 12 Ah will fit inside the enclosure
- Audio circuits supervised with a UL certified 10 kΩ 1/2 W EOL resistor
- Enclosure 36 × 24 × 6 in, red, indoor surface mount, 100 lb
Set the 25 V or 70.7 V tap per output circuit, not per panel. Do not substitute the SPB-160, which has two 80 W outputs, or the SPB-80/4, the only family member with strobe outputs.
