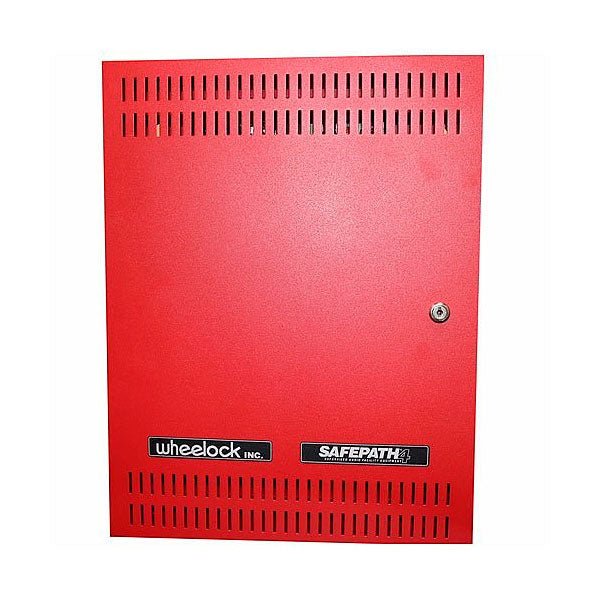

The Eaton Wheelock SPB-160 is a SAFEPATH supervised audio power booster in a red wall-mount enclosure. It adds two supervised 80-watt audio outputs, 160 watts in total, for SAFEPATH voice evacuation and mass notification systems when the main panel's audio capacity is not enough. It does not supply strobe power.
Specifications
| Audio output |
Two 80 W circuits, 160 W total |
| Output voltage |
25 V or 70.7 V, jumper selectable |
| Supervision |
10K ohm, 1/2 W EOLR per output |
| Auxiliary power |
0.5 A at 27 VDC for SAFEPATH accessories |
| Trouble contact |
Form C, 2 A at 24 VDC |
| Standby current |
0.120 A |
| Alarm current |
8.640 A |
| Battery |
24 VDC backup, up to 33 Ah |
| Enclosure |
Red, wall mount |
Installation notes
- Install a 10K ohm EOLR on both AUD1 and AUD2, whether used or not
- Output voltage is set separately for each audio output
- Enclosure holds up to 12 Ah batteries; larger batteries need a separate battery box
- Power-limited and non-power-limited wiring must be separated
- Two power sources (AC and battery): disconnect both before servicing
Related models
SPB-80/4 has one 80 W audio output plus two 2 A strobe outputs. SPB-320 has four 80 W outputs. SPB-160/B is the black-enclosure version.
FAQ
Does the SPB-160 power strobes?
No. It has two 80 W audio outputs only; the SPB-80/4 is the model with strobe outputs.
Which systems is it used with?
SAFEPATH systems, including the SP40S, and accessories such as the SP4Z-A/B splitter and SPRM remote microphone.
What battery size can it use?
Up to 33 Ah. The enclosure holds up to 12 Ah batteries; larger ones need a separate battery box.
Can the two outputs use different voltages?
Yes. AUD1 and AUD2 each have their own 25 V/70.7 V jumper setting.
