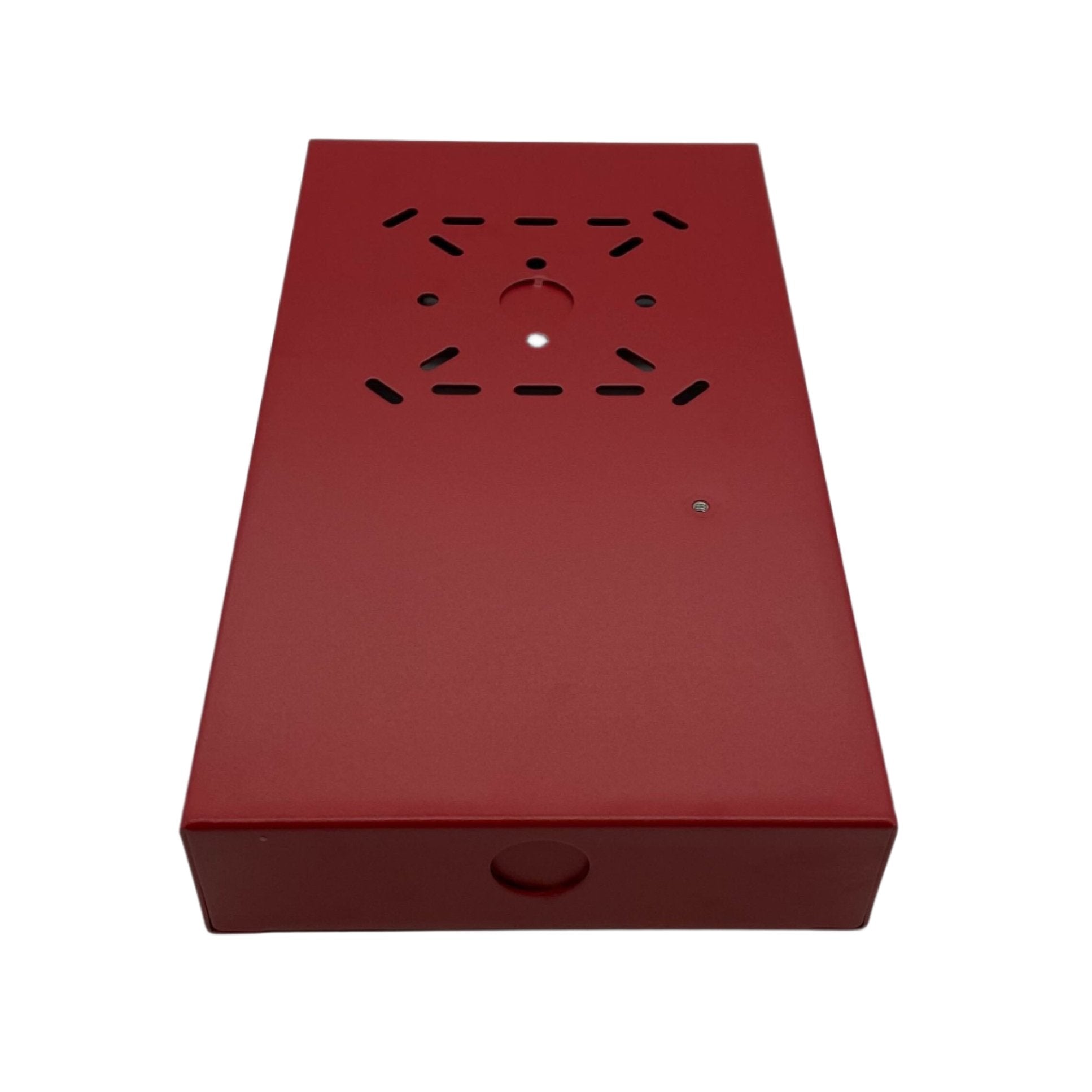

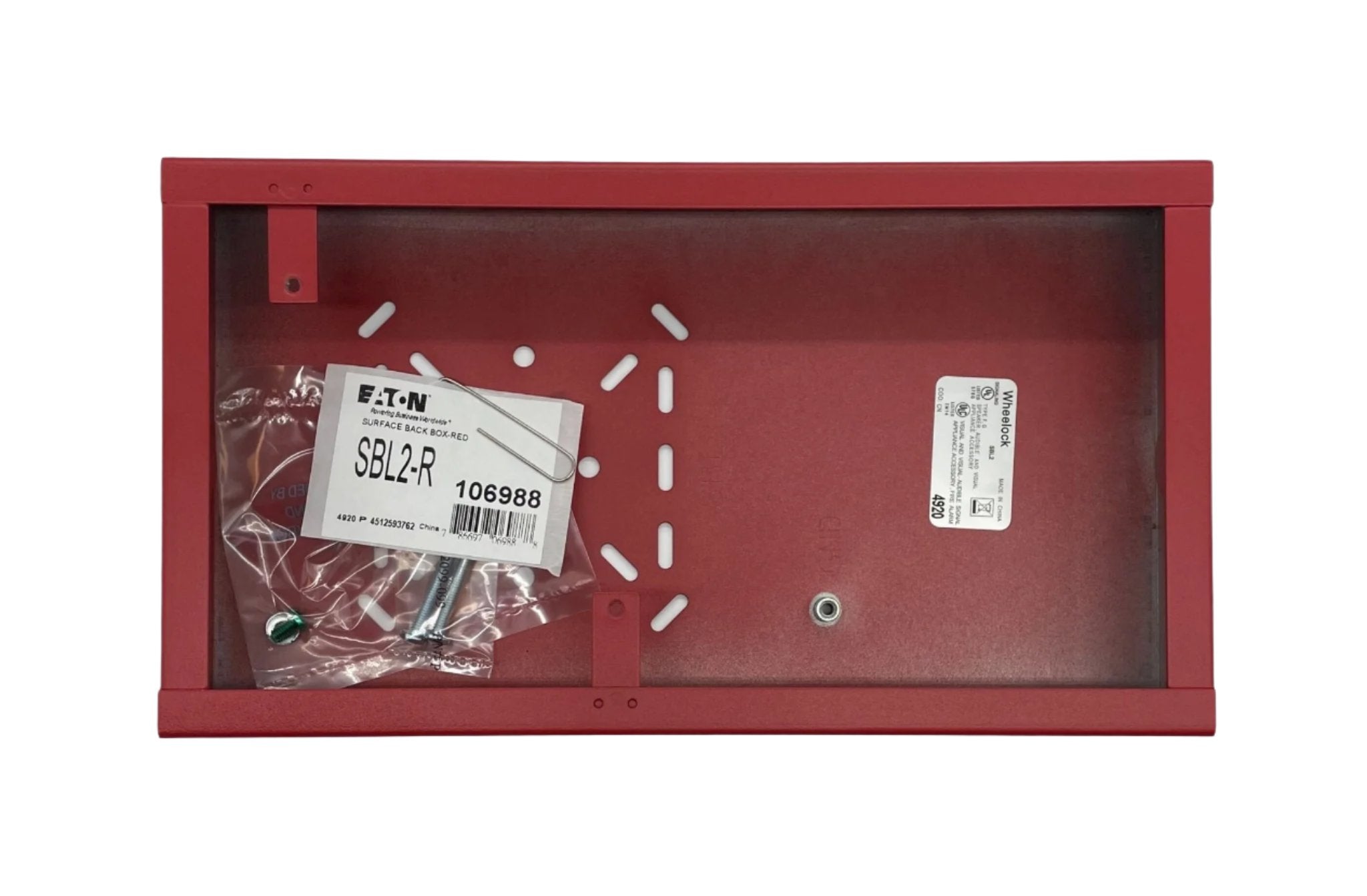

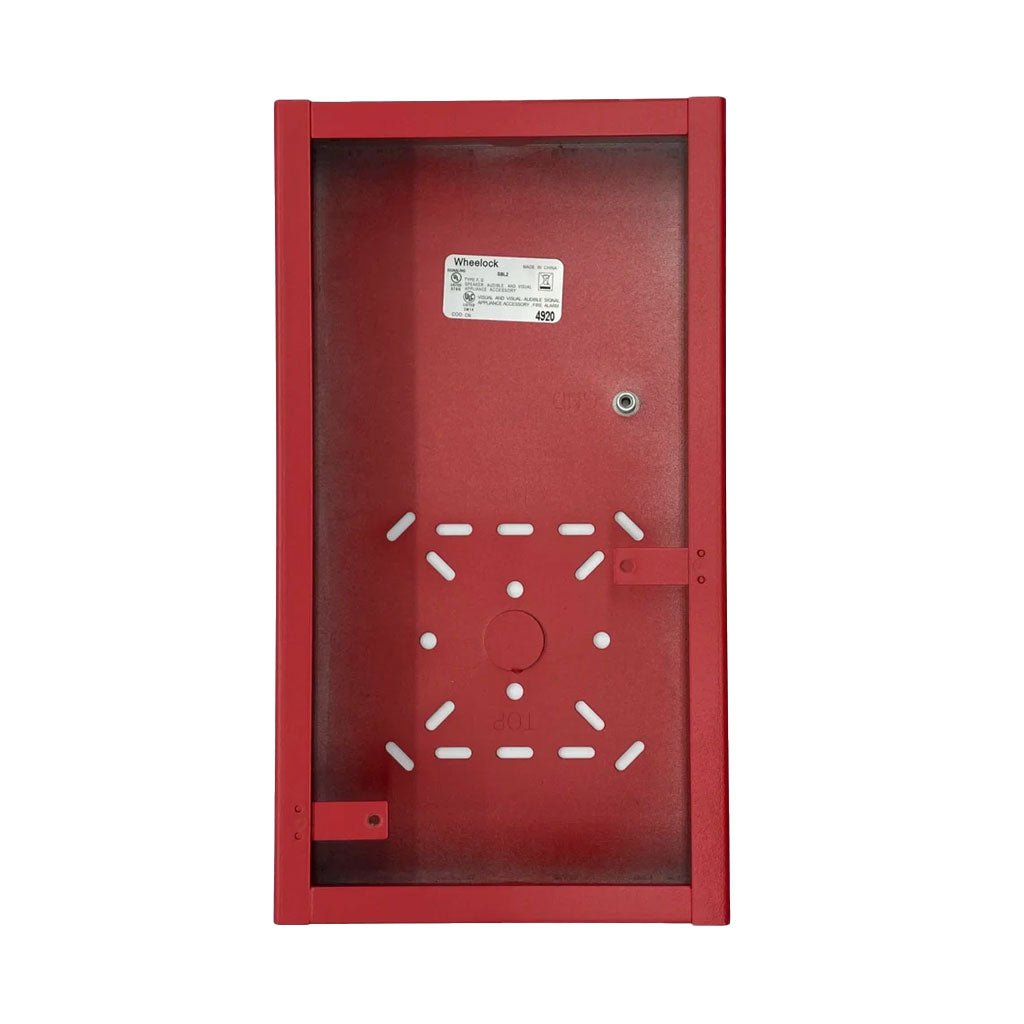

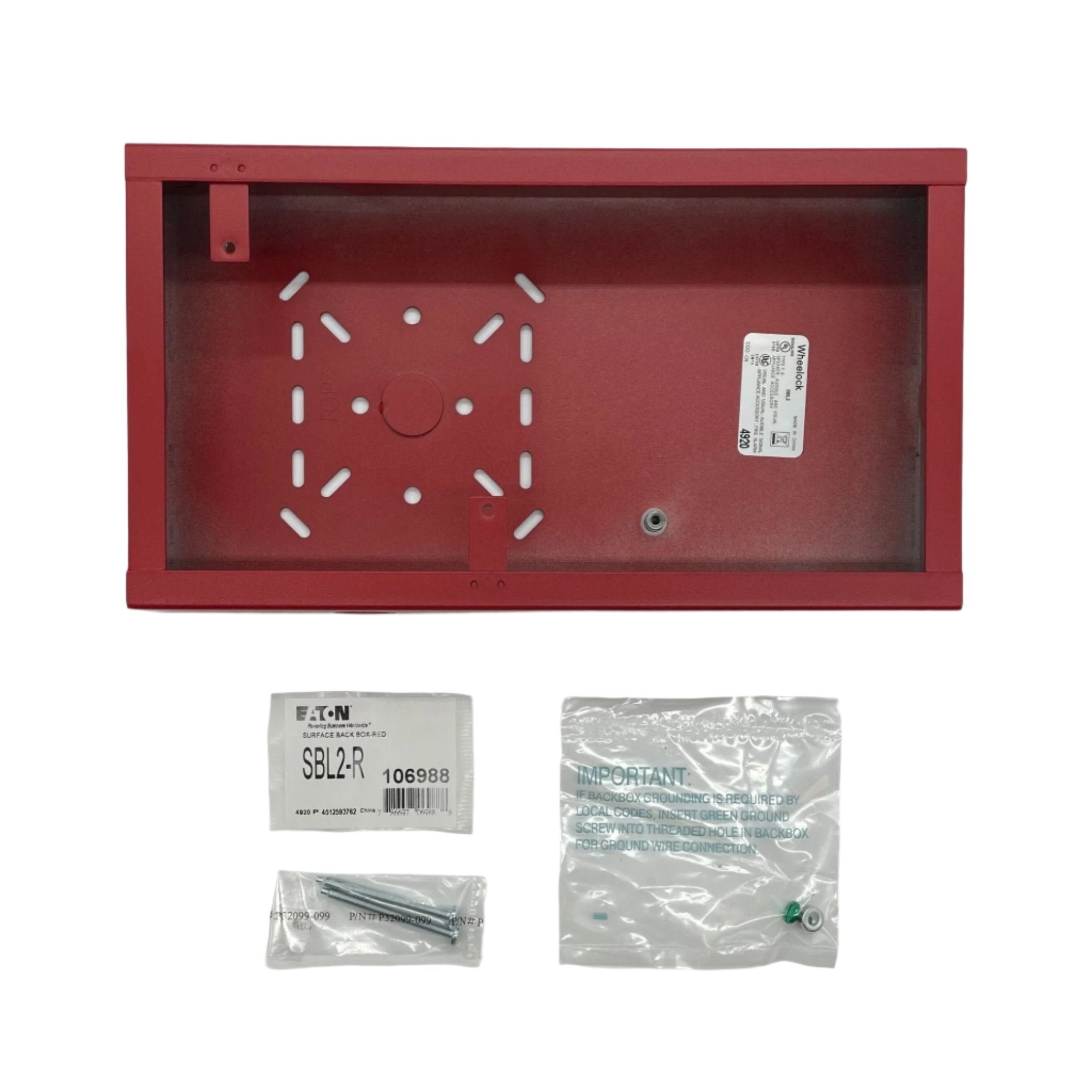

Eaton Wheelock SBL2-R Backbox, Surface for RSSP, Red
The SBL2-R is the red Wheelock SBL-2 surface backbox for the Series RSSP strobe plate. It lets the RSSP plate be surface mounted instead of installed over a recessed box.
Key Features
- Surface backbox, used with Wheelock Series RSSP (mounting accessories sheet item Z)
- Required when surface mounting the SHMP-R adapter plate (STH-15SR horn on an RSSP plate), per the STH cluster speaker data sheet
Specifications
| Model |
SBL2-R |
| Order code |
6988 |
| Finish |
Red |
| Size (datasheet drawing) |
10-15/16 in. x 6-7/64 in. x 1-11/16 in. deep |
Compatible With
- Wheelock Series RSSP strobe plates
