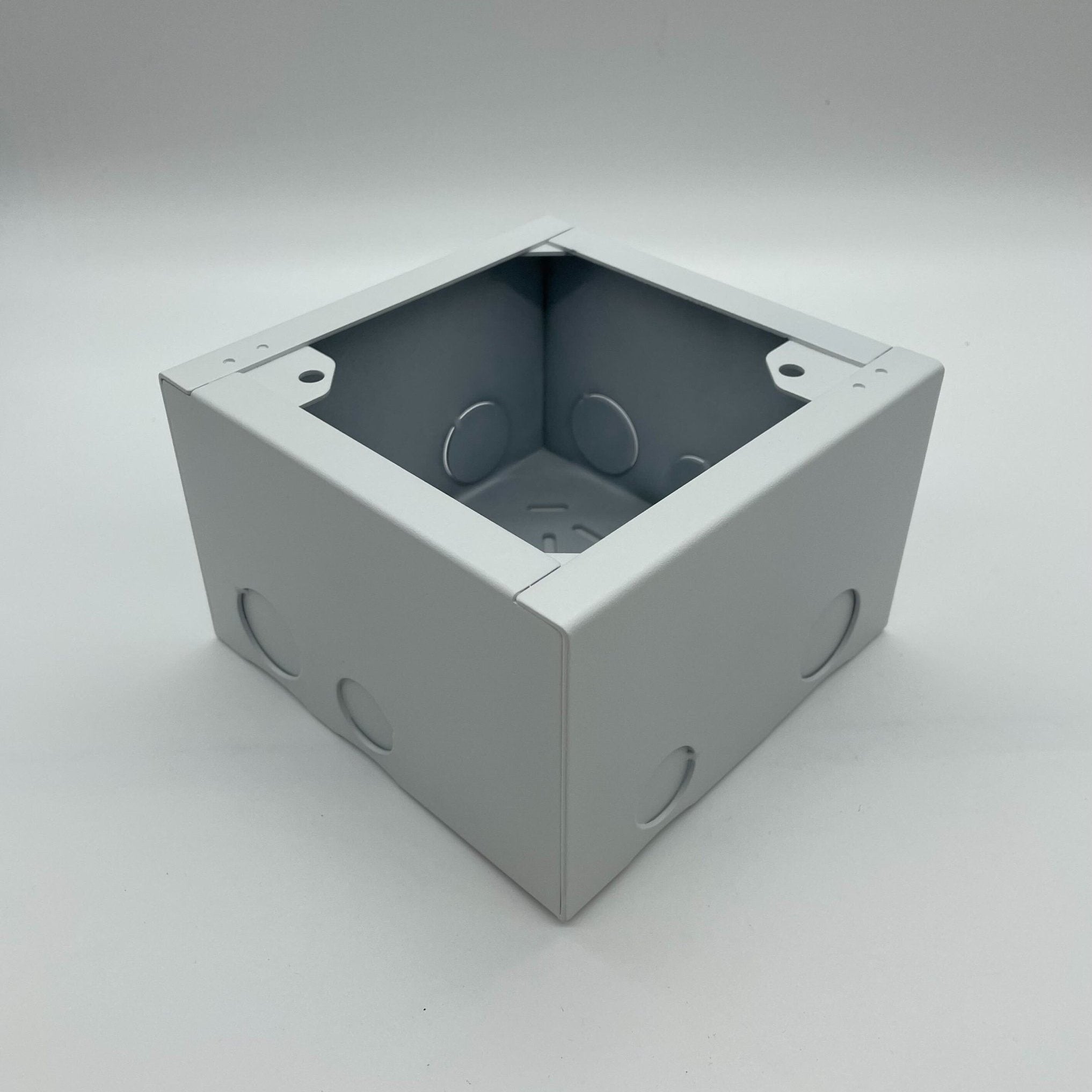

Eaton Wheelock SBB-W — white surface backbox for Wheelock speakers, chimes and electronic signaling appliances.
The SBB is the deep surface box Eaton publishes for appliances needing more volume than a standard 4 in. box, and Eaton describes it as being for surface mounting speakers, chimes and electronic applications. The W suffix is the white finish; the same box in red is the SBB-R.
- Eaton order code: 3193 white; the red version is order code 3204
- Size: 5-9/16 in. wide × 5-1/2 in. high × 3-9/16 in. deep

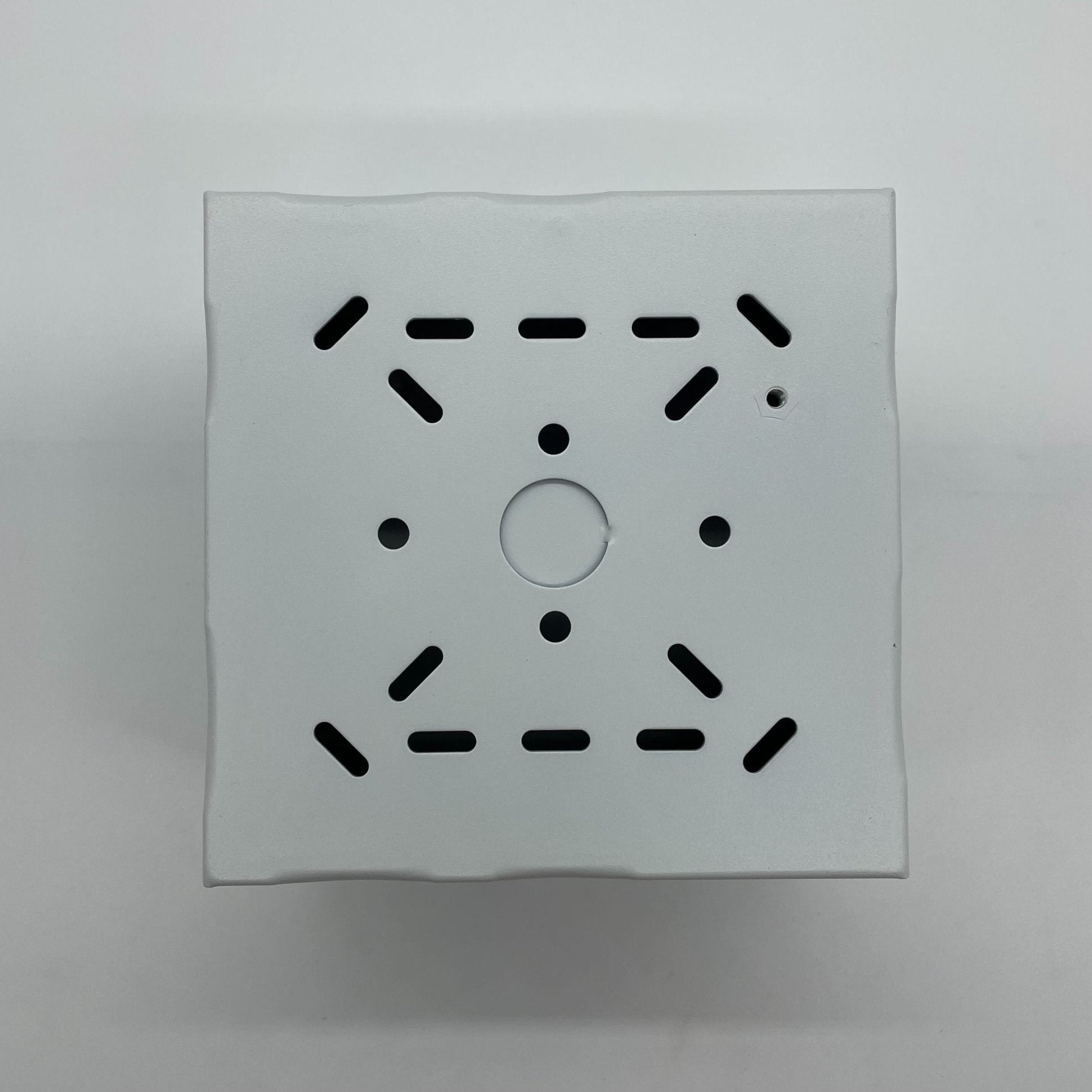

- Appliance mounting pattern: 3-3/8 in. square
- Maximum conductors: 8 each at #18, #16, #14 and #12 AWG
- Knockouts: 3/4 in. and 1/2 in. on each side
- Eaton lists it for Wheelock 43T, AMT, CH70, E70, ET70, ET-1080, HS4, HS, MB, MT and RSS series
Keep two siblings apart from it. The SBB is not the smaller BB backbox, which is 5 × 4 in., allows only four conductors and comes in red or gray. Nor is it the ISP2 adapter or the IOB box, both 5-1/4 in. square.
