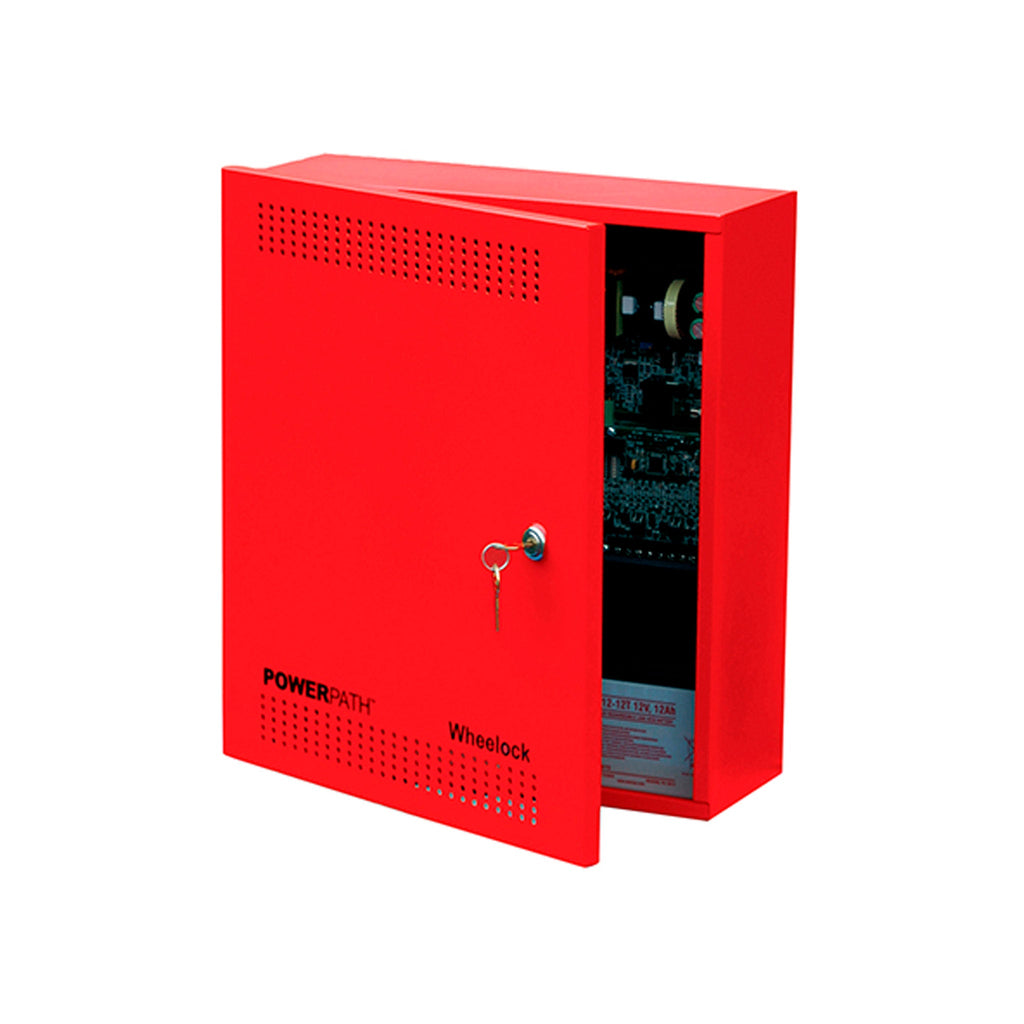

The Eaton Wheelock PS-8-LP POWERPATH is a supervised remote power supply and battery charger in a low-profile red cabinet, used to supervise and expand fire alarm notification appliance circuits (NACs). It provides 8 A of filtered, regulated 24 VDC across four outputs and can be triggered by any 12 V or 24 V (FWR or DC) fire alarm control panel NAC or by a dry contact.
Specifications
| Primary power |
105-130 VAC, 50/60 Hz, 5.32 A |
| Total alarm output |
8 A at 24 VDC |
| NAC outputs |
4 Class B, 2 Class A, or 2 Class B + 1 Class A |
| Per circuit |
Up to 3 A, power limited |
| Inputs |
2 NAC (8-33 V at 5 mA) or 2 dry contact |
| Auxiliary output |
2.5 A (removed on AC loss/alarm) or 240 mA constant |
| Standby current |
0.129 A |
| Batteries |
Two 7 Ah in cabinet; charges up to 33 Ah externally |
| Dimensions |
17" H x 13" W x 3.5" D |
| Approvals |
UL 864, UL 1481, FM |
Features
- Steady, Temporal (Code 3), Wheelock sync or true input-to-output follower modes
- Audible silence while strobes keep flashing in Wheelock sync mode
- Optional PS-EXP module adds outputs for 8 Class B or 4 Class A circuits
- Common trouble and AC-loss trouble contacts; AC-loss report delay of 30 s or 170 min
- 37 distinguishable trouble diagnostics with input and output status LEDs
- Thermal and short-circuit protection with automatic reset
Related models
PS-8-EXP-LP is the same 8 A supply with the expansion module preinstalled. The PS-EXP module can be added to the PS-8-LP later.
FAQ
What panels can trigger it?
Any 12 V or 24 V (FWR or DC) fire alarm control panel, through a NAC input or a dry contact.
How many NAC circuits does it provide?
Four Class B, two Class A, or two Class B and one Class A. With the optional PS-EXP module it supports eight Class B or four Class A circuits.
What batteries does it hold?
The cabinet holds two 7 Ah batteries, and with an external battery cabinet it can charge up to 33 Ah batteries. Batteries are sold separately.
Can it synchronize Wheelock strobes and horns?
Yes. Wheelock sync mode synchronizes Wheelock strobes and horns and lets the horns be silenced while strobes continue to flash.
