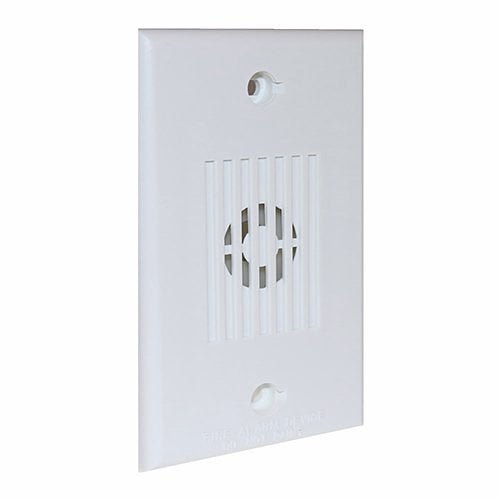

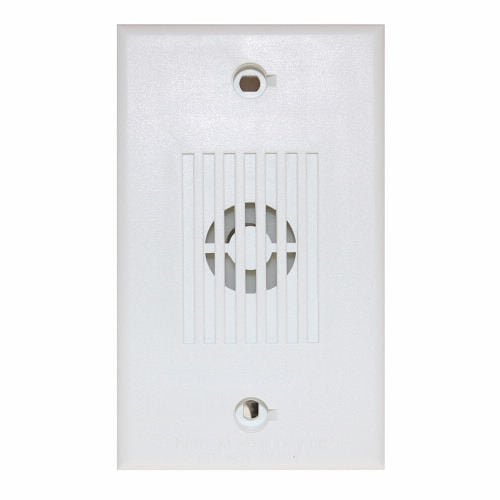

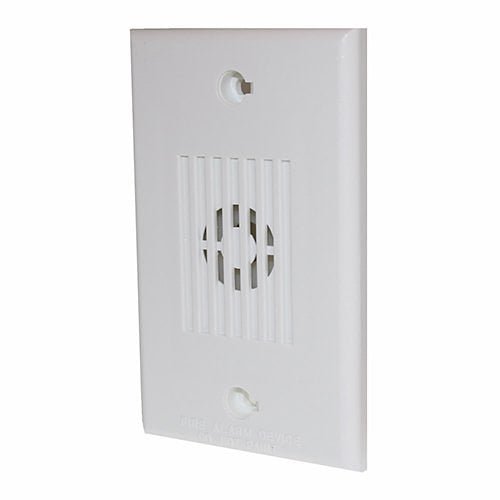

The Eaton Wheelock MIZ-24S-W is a compact piezoelectric mini horn for indoor wall mounting in fire alarm notification circuits. Part of the Wheelock MIZ family, it gives designers a small, low-current audible appliance where a full-size horn is unnecessary, and its white finish blends into offices, corridors and finished interiors.
Key Features
- Field-selectable Temporal (Code 3) or Continuous horn output
- 87 dBA minimum anechoic sound output at 24 VDC on both Temporal and Continuous settings
- Synchronized Code 3 horn tone when used with Wheelock sync modules or Wheelock power supplies
- Operates on filtered DC or unfiltered full-wave-rectified power
- Mounts on a standard single-gang electrical backbox with no trim plate or adapter required
- Reverse-polarity supervision with IN/OUT wiring terminals
Specifications
-
Manufacturer: Eaton Wheelock
-
Part Number: MIZ-24S-W
-
Type: Piezoelectric mini horn
-
Nominal Voltage: 24 VDC (rated range 16–33 V)
-
Tones: Temporal (Code 3) / Continuous
-
Wire Gauge: #12 to #18 AWG
-
Operating Temperature: 32°F to 120°F (0°C to 49°C), indoor use only
-
Dimensions: 4.50" H x 2.75" W x 1.28" D
-
Color: White
-
Mounting: Wall
-
Certification: UL 464 (Audible Appliances for Public Mode Fire Protection Systems)
FAQ
Which tones does the MIZ-24S-W offer?
Field-selectable Temporal (Code 3) or Continuous horn when connected directly to a fire alarm control panel.
Can several mini horns be synchronized?
Yes. A synchronized Code 3 tone is available with Wheelock DSM sync modules or Wheelock power supplies.
How much current does it draw?
Eaton rates it at 0.025 A average RMS at 24 VDC, and 0.026 A UL maximum across the 16–33 V range.
Does it need a trim plate?
No. It mounts on a standard single-gang box with no trim plate or adapter, and beauty plugs cover the mounting screws.
