Eaton Wheelock ET-1080-R — vandal-resistant die-cast fire alarm speaker in red, for 25 or 70 VRMS audio systems, wall or ceiling.
It is a speaker only, with no strobe: a sealed-back driver behind a die-cast grille, for voice and tone signalling where a plastic appliance would not survive. A 10 µF blocking capacitor is factory-wired in series with the input so the panel keeps DC supervision on the circuit.

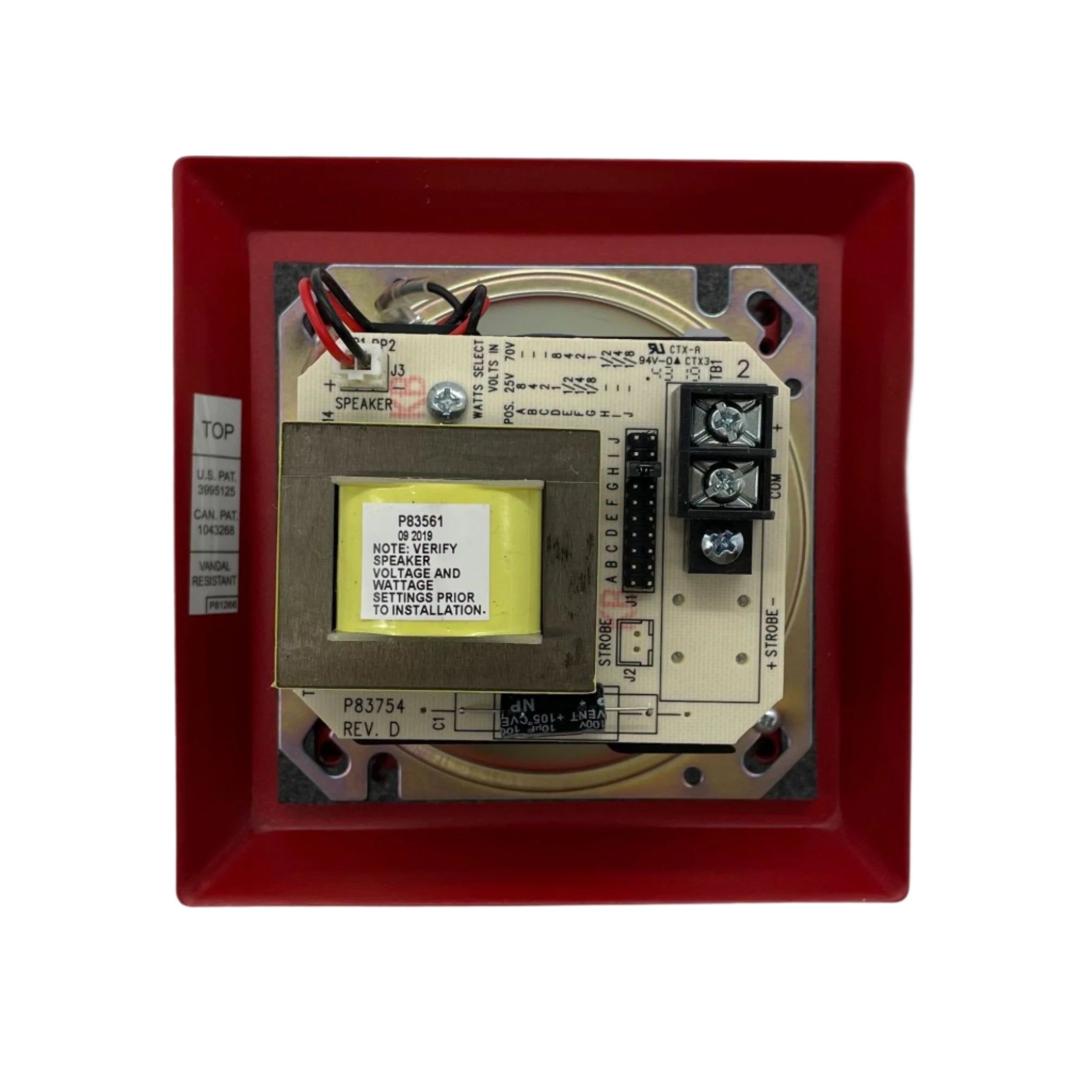

- Field-selectable taps at 1/8, 1/4, 1/2, 1, 2, 4 and 8 watts in 3 dB steps, on either 25 or 70 VRMS
- Sound output at 10 ft rated per UL 1480: 78, 81, 84, 87, 90, 93 and 96 dBA across those seven taps
- Frequency range 400 to 4000 Hz; IN/OUT screw terminals, 12 to 18 AWG

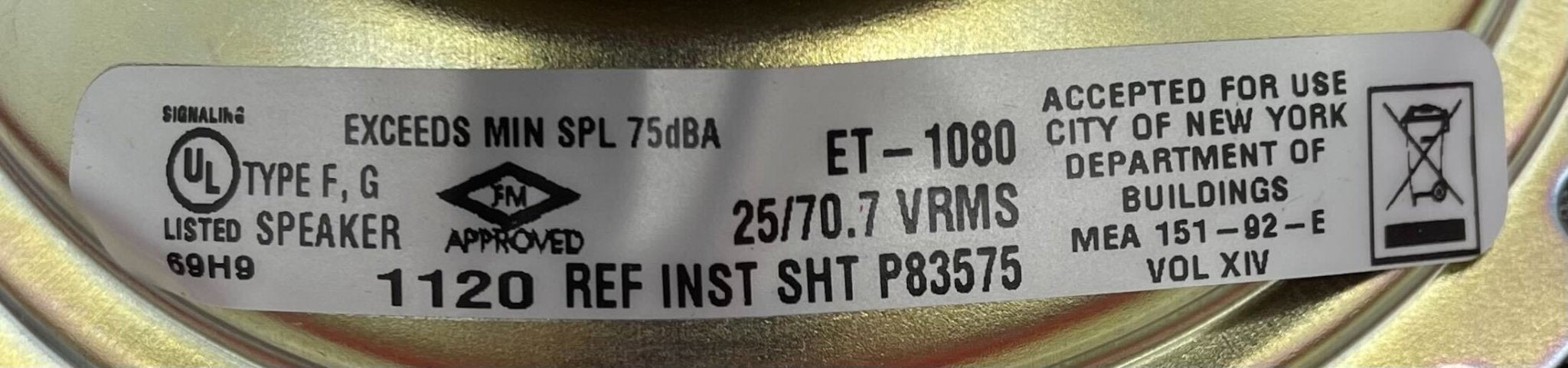

- Certified under UL 1480 for fire protective service, with MEA, CSFM, FM and Chicago BFP approvals; FCC Part 15 Class B
- Wall or ceiling, indoor surface or flush mounting to standard electrical hardware, no trim plate needed
ET-1010 is a different speaker, not another name for this one. Eaton tabulates it on its own row at 77, 80, 83, 86, 87, 92 and 94 dBA, lower at every tap, with a different mounting-option set. The -ULC-D versions are the ULC indoor and outdoor models on a dedicated OSB-R or OSB-W box; ET80-24MCW adds a strobe.
