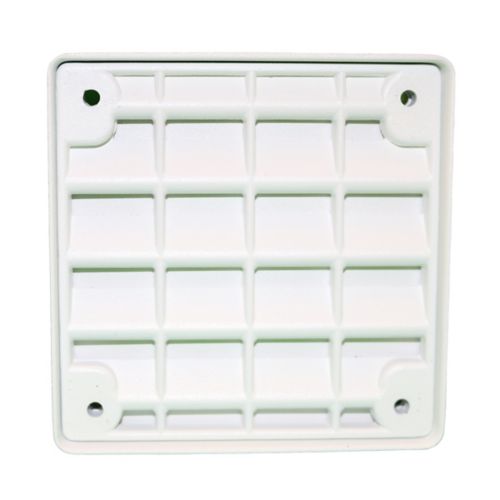

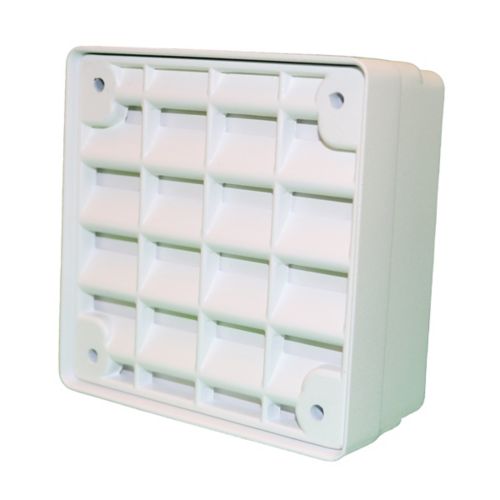

Eaton Wheelock ET-1010 Speaker, Wall or Ceiling, White, No Lettering, 25/70V, iIndoor or Outdoor
The Wheelock ET-1010/ET-1080 vandal resistant speakers are rugged, high performance notification devices, specifically designed to meet the critical needs of the life safety industry for voice announcements and tone signaling. For both indoor and outdoor applications, the ET-1010/ET-1080 speakers feature field selectable taps for 25 or 70 VRMS operation from 1/8 to 8 watts. The high-efficiency design provides improved voice clarity and higher sound output for typical low frequency fire evacuation signaling. Audio inputs include a 10 uF blocking capacitor for compatibility. Weatherproof speaker models are also available.
Key Features
- Vandal resistant die cast grilles
- Sealed back speaker construction for extra protection and improved audibility
- ET-1010 models are UL certified for outdoor use with Wheelock WBB outdoor backbox
Specifications
| UPC |
786697031373 |
| Product Length/Depth |
1.9 in |
| Product Height |
4.3 in |
| Product Width |
4.3 in |
| Product Weight |
3 lb |
| Product Type |
Speaker |
| Mounting Method |
Wall Ceiling |
| Housing color |
White |
| Indoor/outdoor |
Indoor/outdoor |
| Housing material |
Cast metal |
| Lettering |
No lettering |
| Voltage |
25 V 70 V |
| Operating Temperature |
–40°F to 150°F (–40°C to 66°C) |
| Compliance and standards |
CSFM FM UL BFP MEA |
Documents & Downloads
FAQ
What power taps does the ET-1010 have?
Field-selectable taps for 25 or 70 VRMS operation from 1/8 watt up to 8 watts in 3 dB steps, across a 400 to 4,000 Hz range.
How loud is it?
At 10 feet, from 77 dBA at the 1/8 W tap to 94 dBA at 8 W (86 dBA at 1 W).
Can it be installed outdoors?
Yes. ET-1010 models are UL certified for outdoor use with the Wheelock WBB outdoor backbox; the WBB-W is the white version.
Is the ET-1010-W still available?
The ET-1010-W is discontinued. The replacement we offer is the Eaton Wheelock EL3RSPK-NW.
