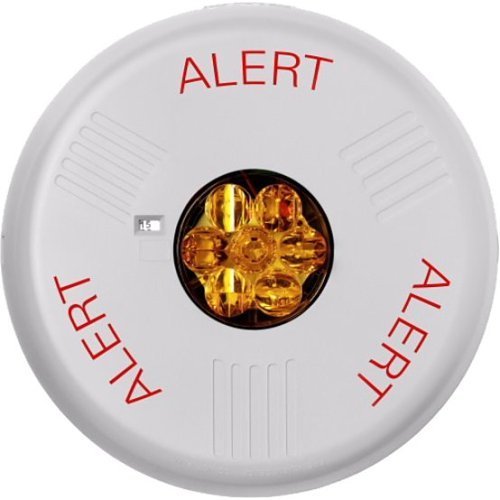

Eaton Wheelock ELSTWC-ALA — Eluxa LED ceiling strobe, white housing, amber lens, ALERT lettering, 24 V.
Eaton reads the number out column by column: ELST the strobe, C the ceiling mount, W the white housing, AL the ALERT legend and the trailing A the amber lens. Note 5 of ceiling installation sheet P85756F states that amber strobes are not to be used as a visual public mode alarm notification appliance. Neither that sheet nor the datasheet says what they may be used for instead.
- Six field-selectable ceiling settings: 15, 30, 75, 110, 150 and 177 cd
- 16 to 33 VDC or VFWR regulated, one flash per second across that range
- 20 ms LED pulse, meeting the NFPA 72 2016 flash duration requirement
- ELSTC family certified to UL 1638, UL 1971 and ULC S526
- Indoor use only, 32 °F to 122 °F, 93% RH
- 6.27 in. diameter × 1.69 in. deep, Lexan lens, 12 to 18 AWG terminals
ELSTWC-AL carries the same ALERT legend behind a clear lens and ELSTWC-NA is the amber unit with no lettering. The wall model ELSTW-ALA has a different candela set, 15, 30, 75, 110, 135 and 185 cd.
