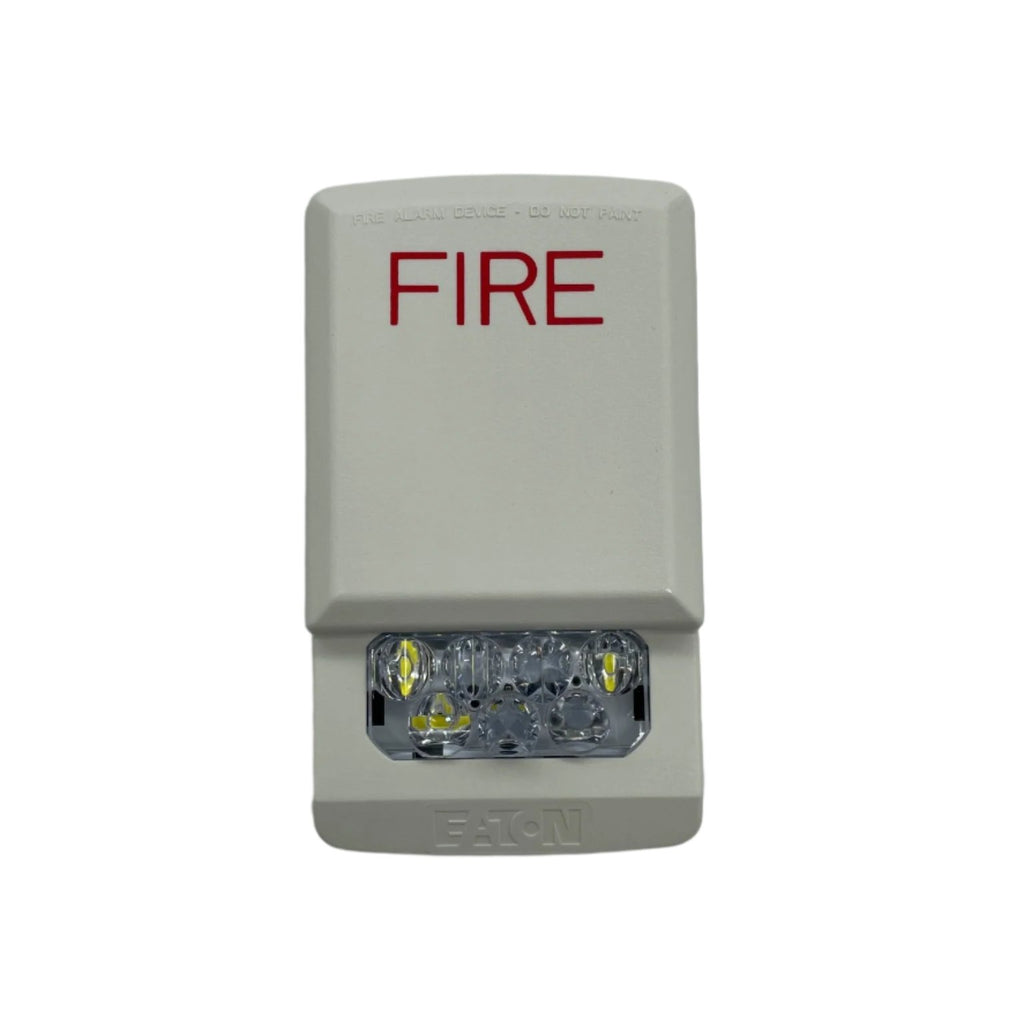

Eaton Wheelock ELSTW — Eluxa LED strobe for indoor wall mounting, white, clear lens, FIRE lettering.
This is the strobe-only member of the Eluxa line: no horn and no sounder. An LED replaces the xenon flashtube, and Eaton states the 20 millisecond flash duration required by the 2016 edition of NFPA 72, so LED and xenon strobes may share a field of view.
- Six field-selectable wall candela settings: 15, 30, 75, 110, 135 and 185 cd
- UL maximum RMS current at 24 V: 0.017 A at 15 cd, 0.022, 0.053, 0.079, 0.106 and 0.161 A at 185 cd
- Regulated range 16.0 to 33.0 VDC or VFWR, one flash per second across it

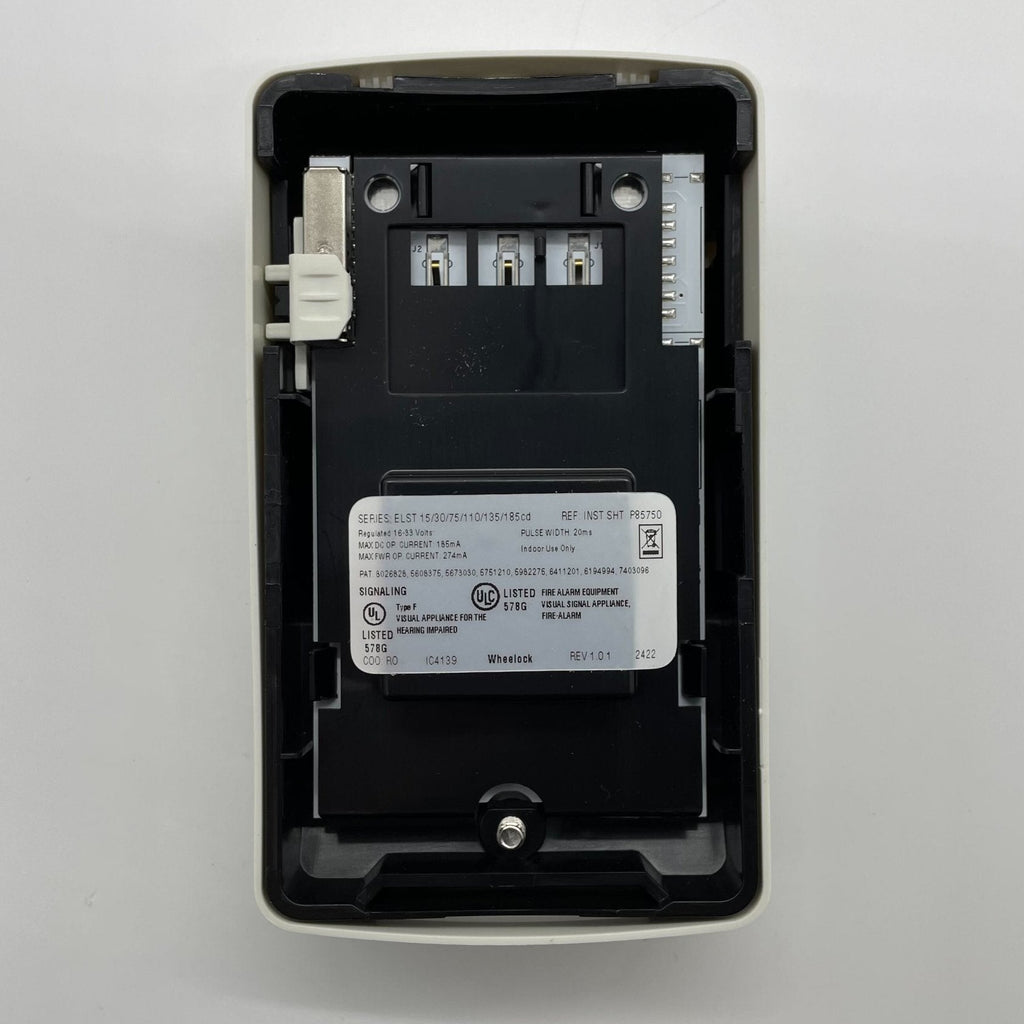

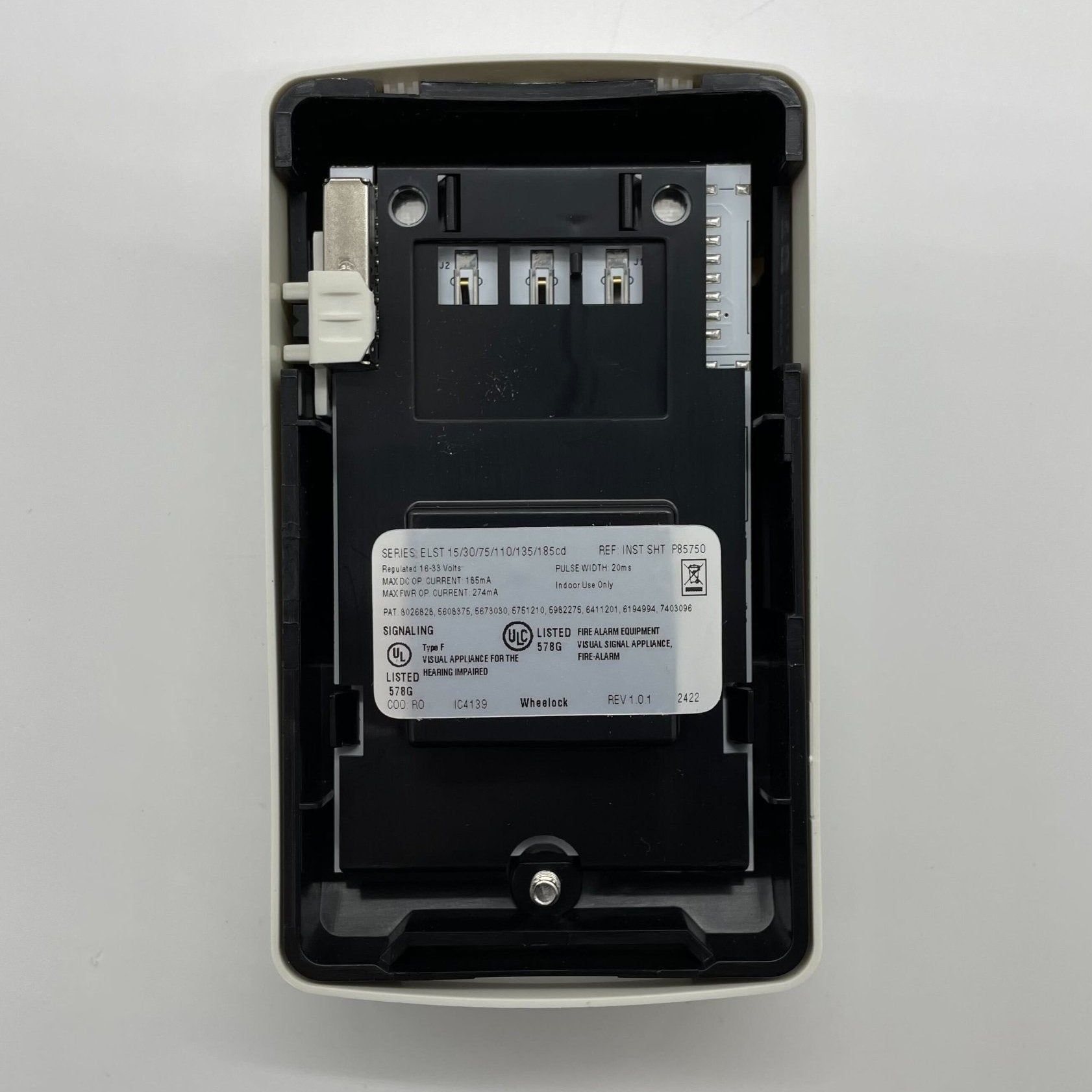

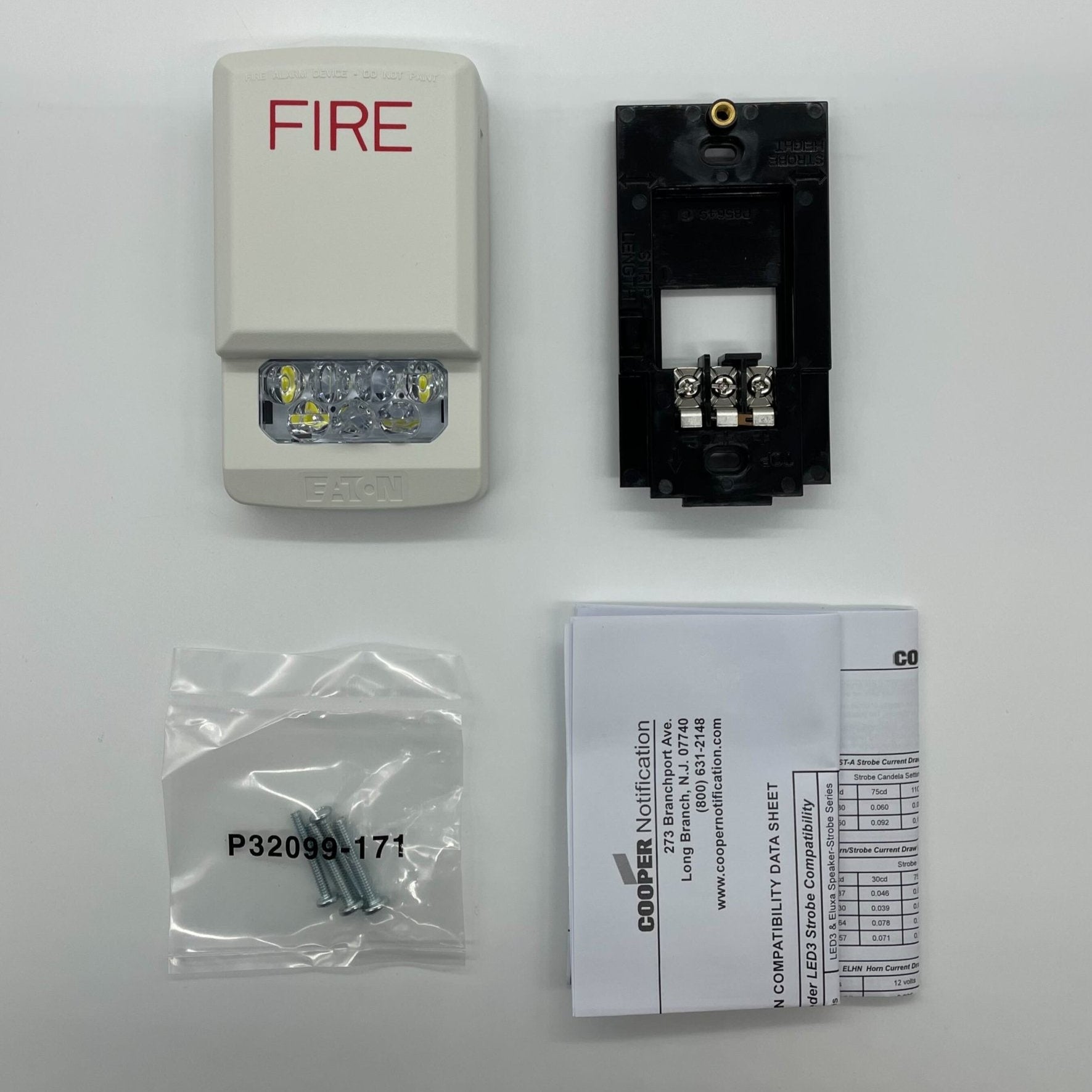

- 4.79 " × 2.76 " × 1.18 ", 0.35 lb; hinged mounting plate included
- Indoor only, 32 °F to 122 °F; UL 1971, UL 1638, ULC-S525, ULC-S526, CSFM, RoHS
- Synchronizes with Wheelock DSM modules, PS power supplies and SAFEPATH products
ELSTR is the identical red model. ELHSW adds a horn and draws more at every setting, 0.035 A at 15 cd rising to 0.177 A at 185 cd on high. ELSTWC is the ceiling strobe, at 15/30/75/110/150/177 cd in a 6.27 " round body.
