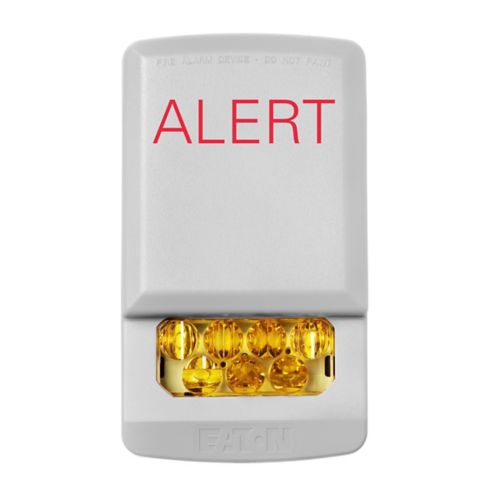

Eaton Wheelock ELSTW-ALA — Eluxa LED strobe for indoor wall mounting, white housing, amber Lexan lens, ALERT lettering.
The suffix carries two choices and one is easy to lose. In the Eluxa ordering table the clear-lens ALERT wall strobe is ELSTW-AL; the trailing A is what makes the lens amber, and ELSTW-NA is that same amber unit with no lettering.
- Six field-selectable wall candela settings: 15, 30, 75, 110, 135, 185 cd
- Regulated voltage range 16.0 to 33.0 VDC; one flash per second, 20 ms flash duration
- UL maximum RMS current 17, 22, 53, 79, 106 and 161 mA at those six settings in order
- White housing, amber Lexan lens, ALERT lettering, indoor, 32 to 122 °F

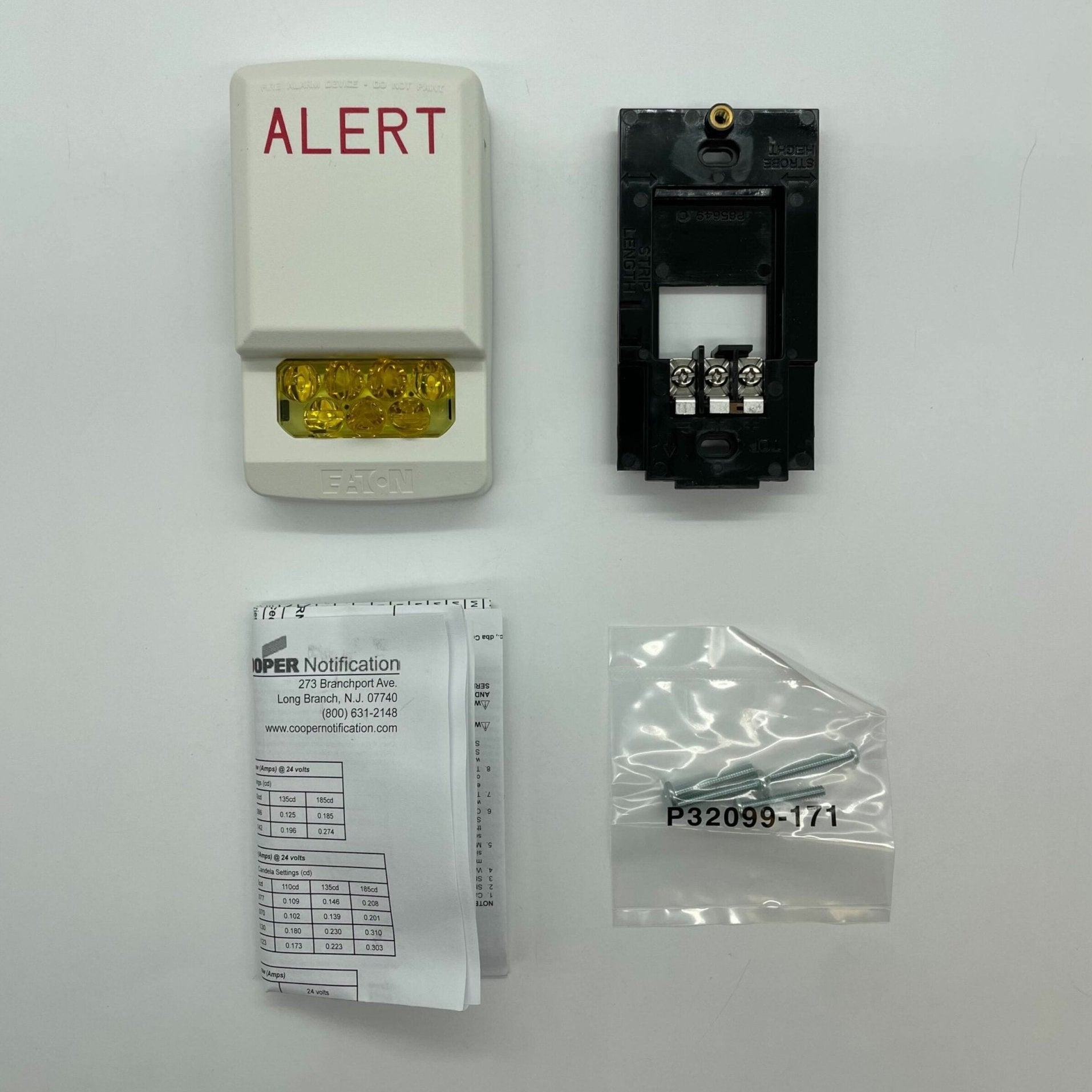

- Single-gang body, hinged mounting plate included; 12 to 18 AWG terminals
- Synchronizes with Wheelock DSM modules, PS power supplies and SAFEPATH products
Neighbouring numbers are a character or two apart and not interchangeable. ELSTW-AL is the clear-lens version and ELSTR-ALA the red-housing amber ALERT. ELSTWC-ALA is the ceiling model and its candela set differs — 15, 30, 75, 110, 150 and 177 cd. ELHSW-AL adds a horn; this is strobe only.
FAQ
What makes the ELSTW-ALA different from the ELSTW-AL?
The trailing A means an amber lens. The ELSTW-AL is the same white ALERT wall strobe with a clear lens.
Which candela settings are available?
Six field-selectable wall settings: 15, 30, 75, 110, 135 and 185 cd.
Can it be synchronized?
Yes, with Wheelock DSM sync modules, Wheelock PS power supplies and SAFEPATH products.
Is it suitable outdoors?
No. This model is for indoor use, rated 32 °F to 122 °F.
