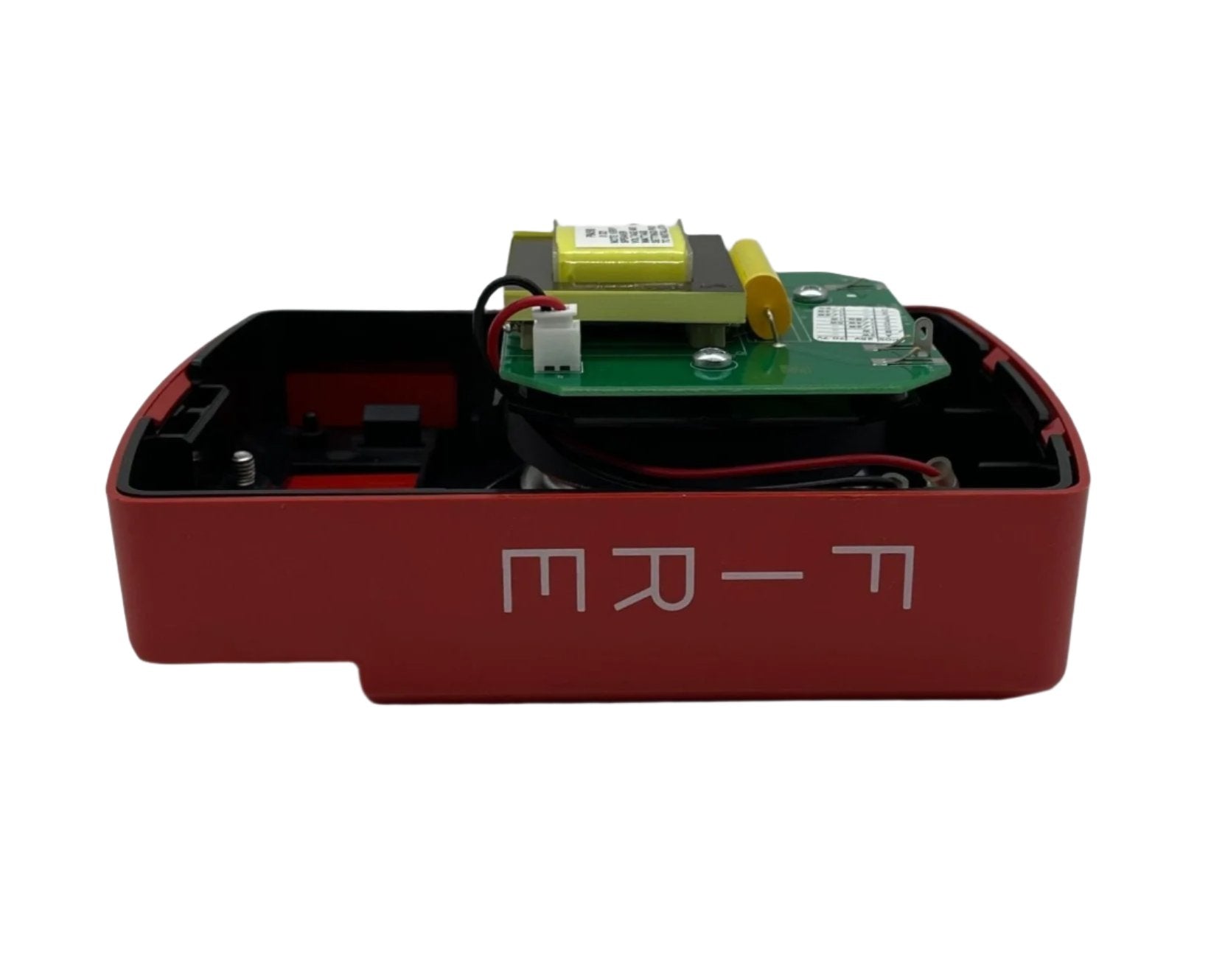

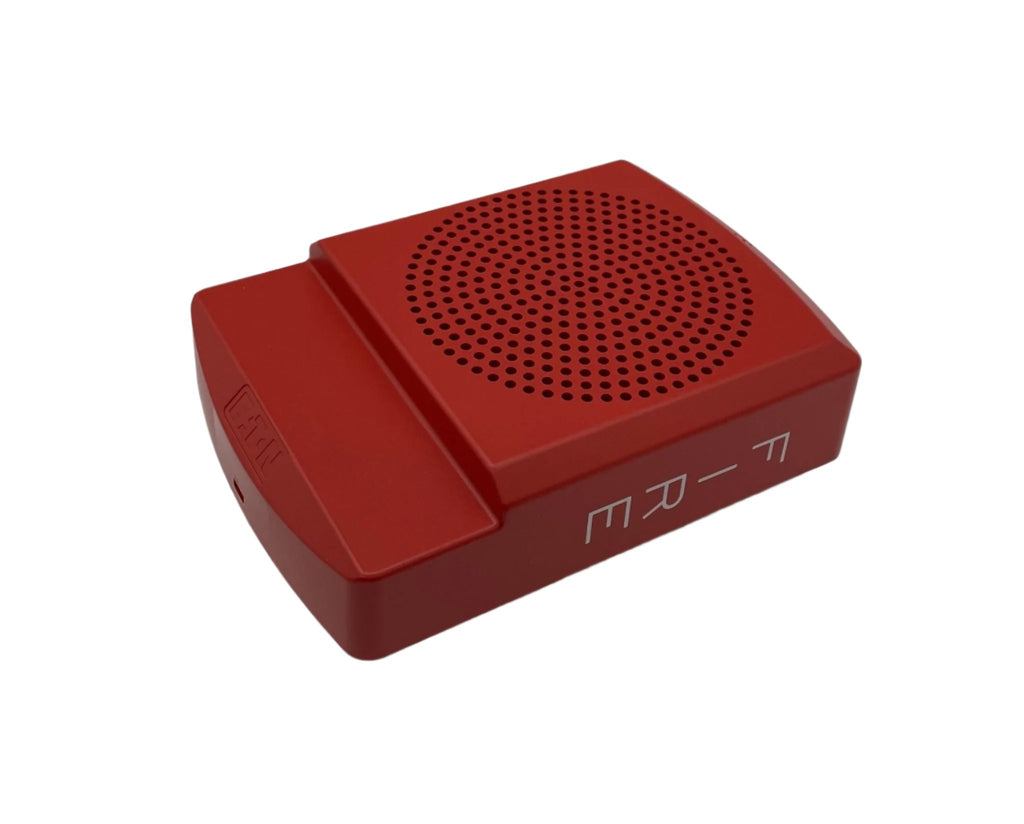

Eaton Wheelock ELSPKR — Eluxa high fidelity wall speaker, red with FIRE lettering, audible only with no strobe.

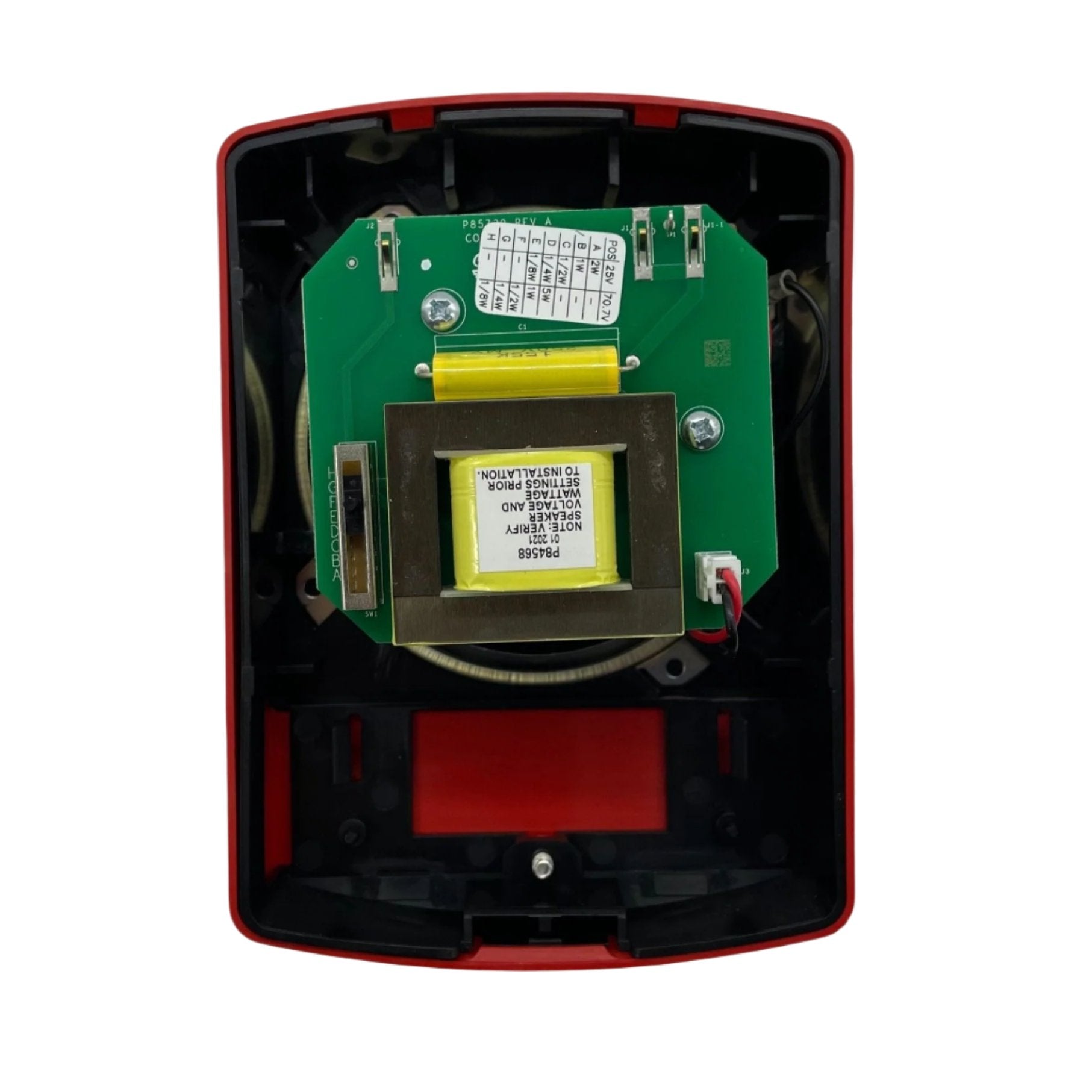

The Eluxa speaker carries voice evacuation, mass notification and tone signalling on a 25 or 70.7 VRMS audio circuit. Its power tap is set by finger slide switches on a mounting plate that lets the circuit be pre-wired and pre-tested before the appliance goes on, under a snap-on grille cover.
- Field-selectable 25 or 70.7 VRMS input; taps of 1/8, 1/4, 1/2, 1 and 2 W at 25 VRMS and 1/8 W through 8 W at 70.7 VRMS
- Reverberant output at 10 ft per UL 1480 on the 70.7 VRMS wall row: 74 dBA at 1/8 W rising to 90 dBA at 8 W
- Frequency response 300 to 8000 Hz
- UL Certified under UL 1480 for fire protective service
- 6.35 in. H × 4.56 in. W × 1.54 in. D; indoor 32°F to 122°F at up to 93% humidity

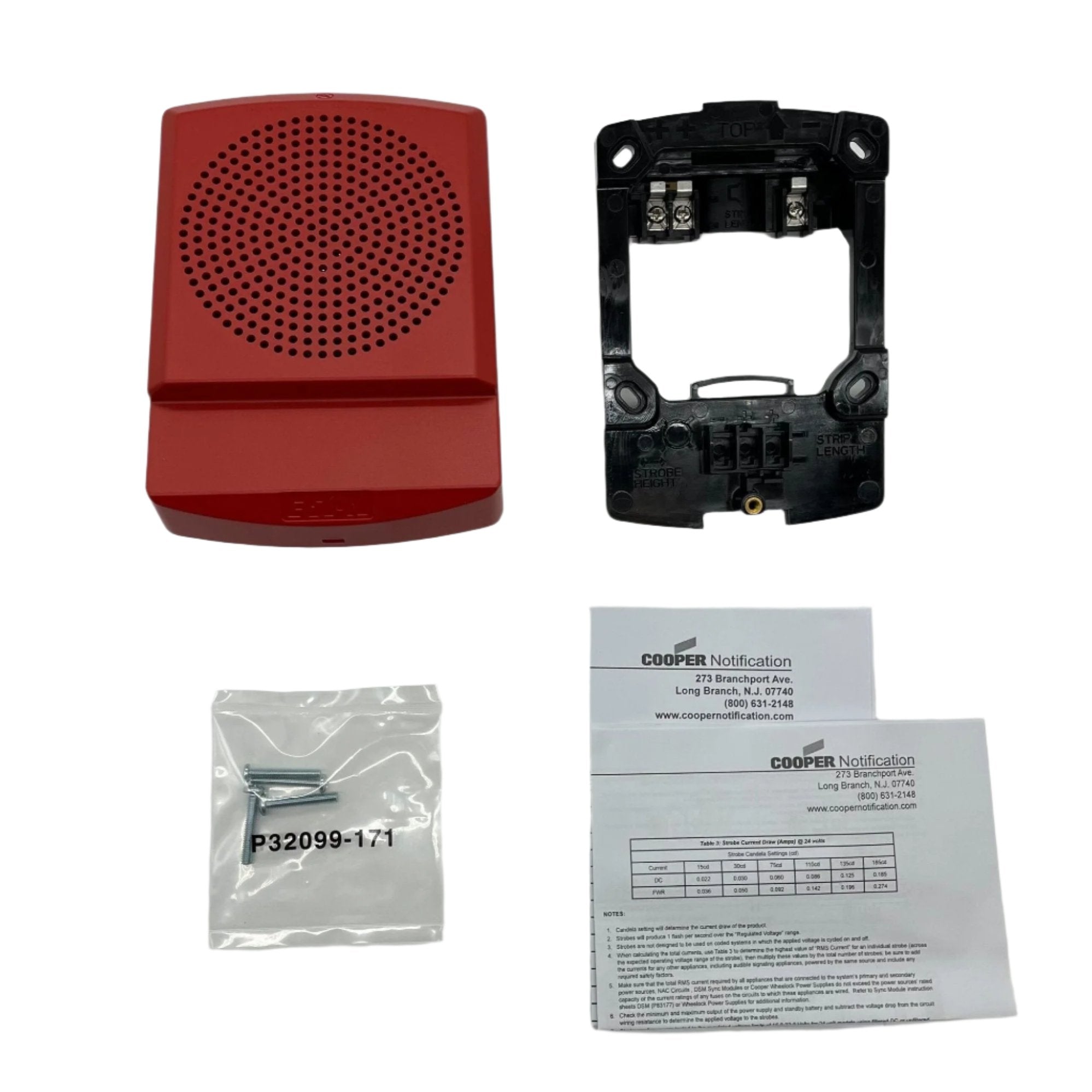

- In and out screw terminals for #12 to #18 AWG; mounting plate supplied
ELSPKW is the same speaker in white, ELSPKR-N drops the lettering and ELSPKR-AL reads ALERT; ELSPKRC is the red ceiling housing and ELSPSTR the wall speaker strobe. ELSPKBB-R is the red wall back box.
