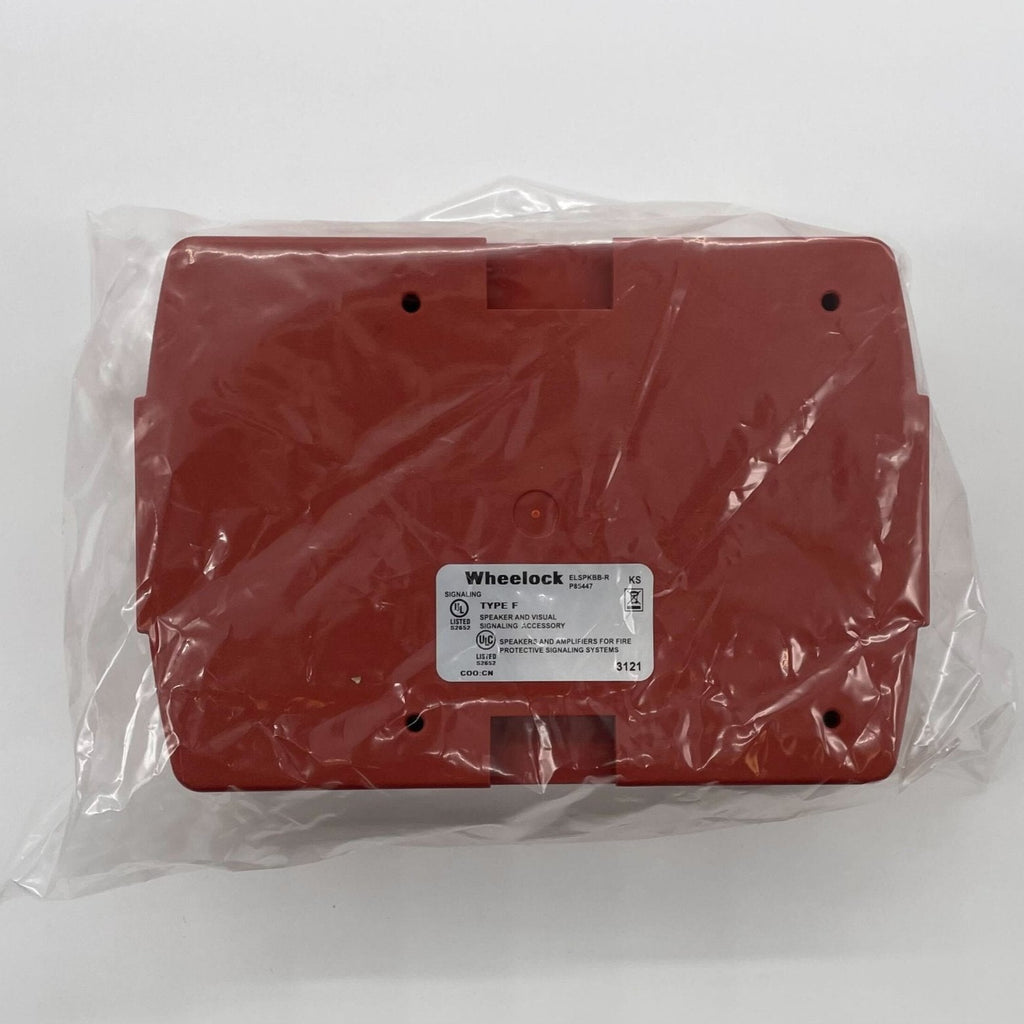

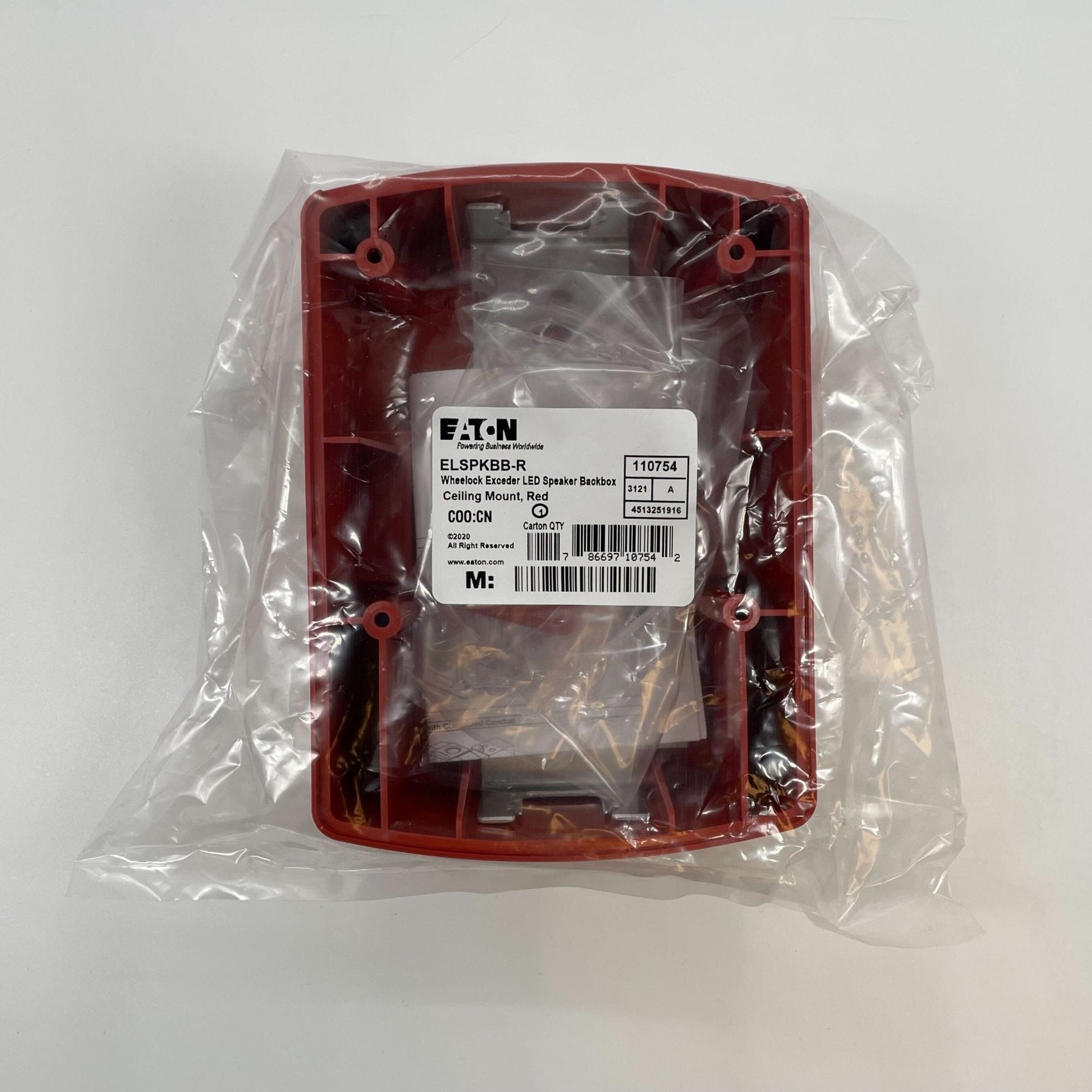

Eaton Wheelock ELSPKBB-R — red surface back box for indoor wall mounting of Eluxa speakers, speaker strobes and low frequency sounders.
Eluxa wall appliances are designed to sit in a flush box, so a surface installation needs a back box that both houses the wiring and matches the appliance finish. This is the speaker-footprint box, order code 110754 in red and 110755 in white, and it is the larger of the two Eluxa wall boxes because the speaker housings are larger than the horn and strobe housings.
- Accepts Eluxa ELSPK speakers, ELSPST speaker strobes, and ELFHN and ELFHS low frequency sounder wall models
- 6.48 in. high by 4.69 in. wide by 2.00 in. deep
- Maximum four conductors at each of 18, 16, 14 and 12 AWG
- Indoor surface mounting only; speaker back box weight 0.44 lb (200 g)
- Red; ELSPKBB-W is the identical box in white
Do not confuse it with ELSBB, the smaller 4.8 by 2.76 by 1.98 in. Eluxa wall box for the ELHN horn, ELHS horn strobe and ELST strobe, or with LSPKBB-CR and LSPKBB-CW, the ceiling boxes. The flush alternative is a 4 in. square, 2-1/8 in. deep box.
