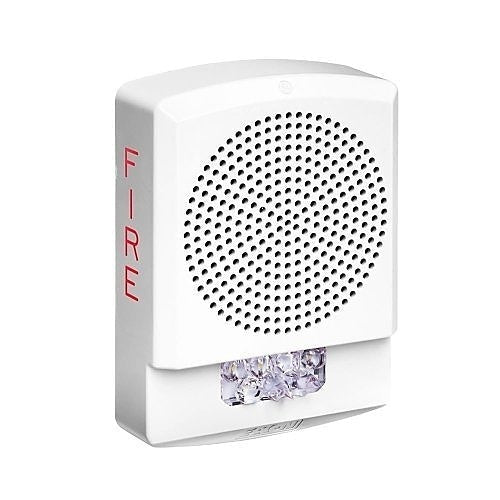

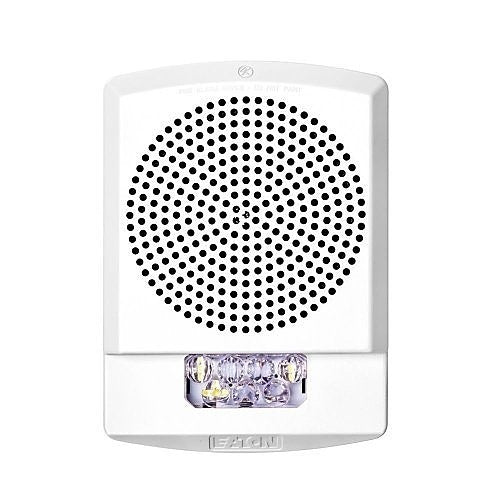

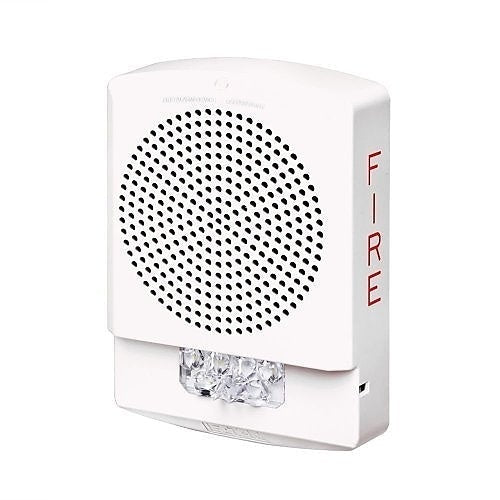

Eaton Wheelock ELMTSW is a wall mount multitone horn strobe from the Eluxa line, with a white housing, FIRE lettering and a clear lens, operating at 24 V. Eight alerting sounds are built into the one device.
The sounds are horn, bell, march time horn, Code-3 tone, Code-3 horn, slow whoop, siren and hi/lo tone. The Code-3 patterns follow NFPA/ANSI temporal pattern specifications without extra equipment, and the unit meets NFPA 72 fire and CO low frequency sounder codes for sleeping rooms. The strobe uses LED technology, with six wall-model candela settings.
Features
- Eight selectable sounds in one device
- Code-3 horn and tone patterns meet NFPA/ANSI temporal pattern requirements
- Meets NFPA 72 fire and CO low frequency sounder codes for sleeping rooms
- LED strobe with candela settings of 15, 30, 75, 110, 135 and 185 cd
- FIRE lettering and clear lens
- Indoor wall mount, white housing
Specifications
| Product type |
Low frequency multitone horn strobe |
| Voltage |
24 V DC |
| Light source |
LED |
| Mounting |
Wall |
| Height |
6.4 in. |
| Width |
4.6 in. |
| Depth |
1.5 in. |
