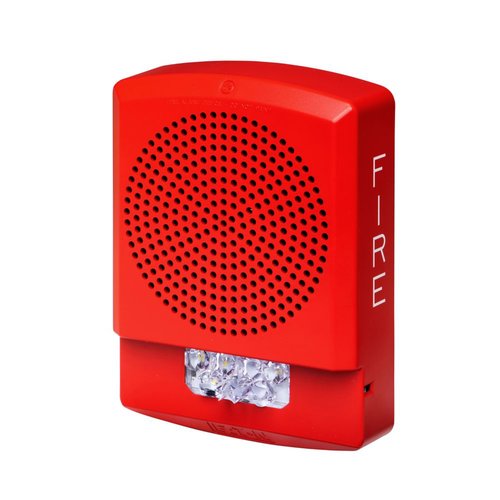

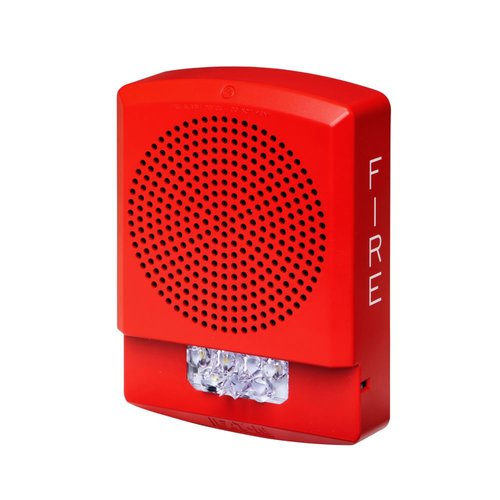

Eaton Wheelock ELMTSR-A is an Eluxa multitone horn strobe in red, wall mount, 24V, with Agent lettering and a clear lens. One device provides eight alert sounds and an LED strobe.
The sounds are horn, bell, march time horn, Code-3 tone, Code-3 horn, slow whoop, siren and hi/lo tone, with two output levels. The Code-3 patterns meet NFPA/ANSI temporal requirements without extra equipment, and the audible and strobe can share one NAC or use separate circuits.
Features
- Eight selectable signals in one device
- Two field-selectable sound output levels: standard and high
- Six wall candela settings: 15, 30, 75, 110, 135 and 185 cd
- Mounting plate with capture hinge; pre-wire and pre-test for wiring and ground faults
- Candela slide switch and multitone DIP switch
- LED technology with low current draw for fewer power supplies and smaller wire
Specifications
| Voltage |
24V DC |
| Mounting |
Wall |
| Housing |
Red, Agent lettering |
| Lens |
Clear |
| Sound output |
Standard / high |
