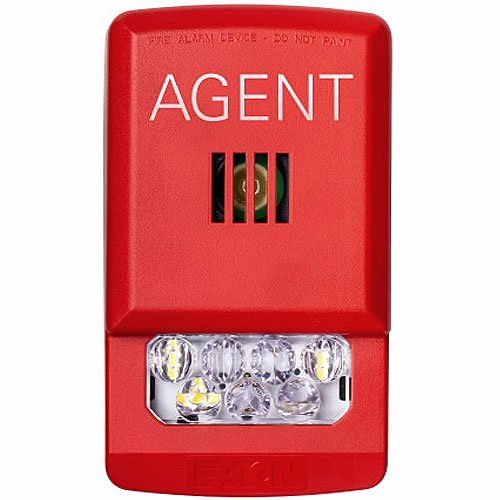

Eaton Wheelock ELHSR-A — Eluxa LED wall horn strobe, red, clear lens, lettered AGENT rather than FIRE.
Eluxa puts six field-selectable candela settings and three horn patterns into one single-gang appliance, and the LED optics keep current low enough to hang more devices on a circuit. Lettering is what separates this catalogue number from its neighbours: Eaton lists FIRE, AGENT, ALERT, EVACUATE and unlettered faces as separate models.
- Wall mount, red, clear lens; 15, 30, 75, 110, 135 and 185 cd, field selectable
- Horn patterns continuous, Code 3 and Code 3 or Code 4, high and low settings
- 80 dBA high and 78 dBA low reverberant at 10 ft. per UL 464; 91 and 86 dBA anechoic per ULC S525
- 24 V DC or full-wave rectified, 16 to 33 V; 0.035 A at 15 cd to 0.177 A at 185 cd
- Indoor only, 32 °F to 122 °F; UL 464, UL 1638, UL 1971, ULC S525 and S526
A mounting plate is included and a backbox is not, so add ELSBB-R or any single-gang box. Do not confuse it with ELHSR, the same unit lettered FIRE, ELHSR-N, unlettered, or ELHSR-NA, the amber-lens unit — amber is encoded by a trailing A after the lettering code, so the single -A here means AGENT.
