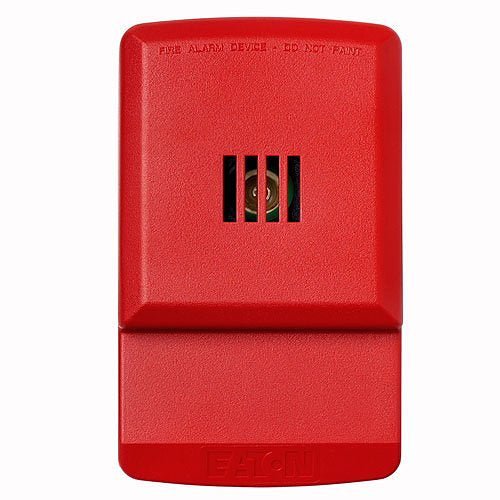

Eaton Wheelock ELHNR is a red wall-mount LED horn from the Eluxa series for 12/24 V indoor systems. It offers three horn patterns and two dB settings in a single single-gang device.
The mounting plate supports pre-wiring and pre-testing and has a hinge for easier installation. Settings can be changed without tools.
Features
- Three horn patterns: continuous, T3, and T3/T4
- Fire and CO signaling in one device
- Sound pressure (anechoic): 86 dBA low, 91 dBA high
- Low-profile single-gang design with no visible mounting screws
- Pre-wire and pre-test capability through the hinged mounting plate
- No tools needed for setting changes
- Special lettering available
Specifications
| Type |
Horn |
| Mounting |
Wall |
| Voltage |
12/24 V |
| Sound output |
91 dB (high setting) |
| Color |
Red |
| Height |
4.8 in |
| Width |
2.8 in |
| Depth |
1.2 in |
