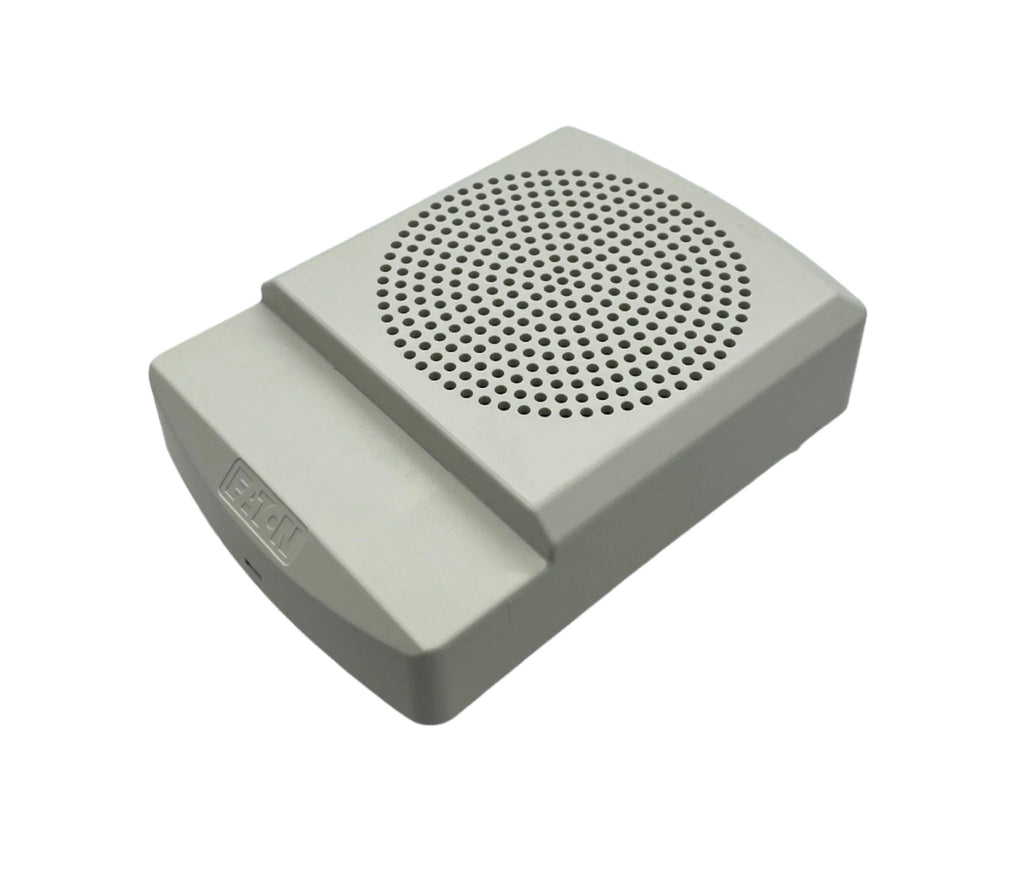

Eaton Wheelock ELFHNW-N — Eluxa low frequency sounder, white, no lettering, audible only with no strobe.

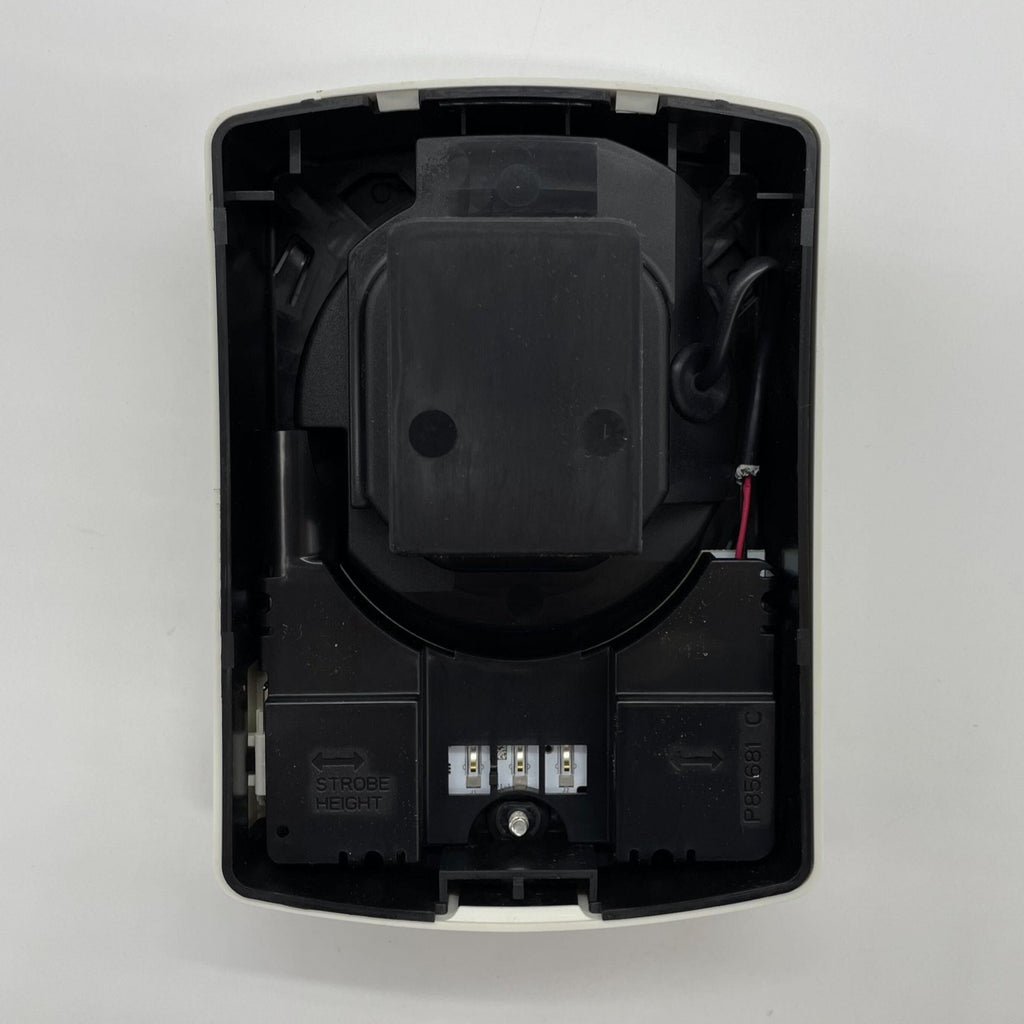

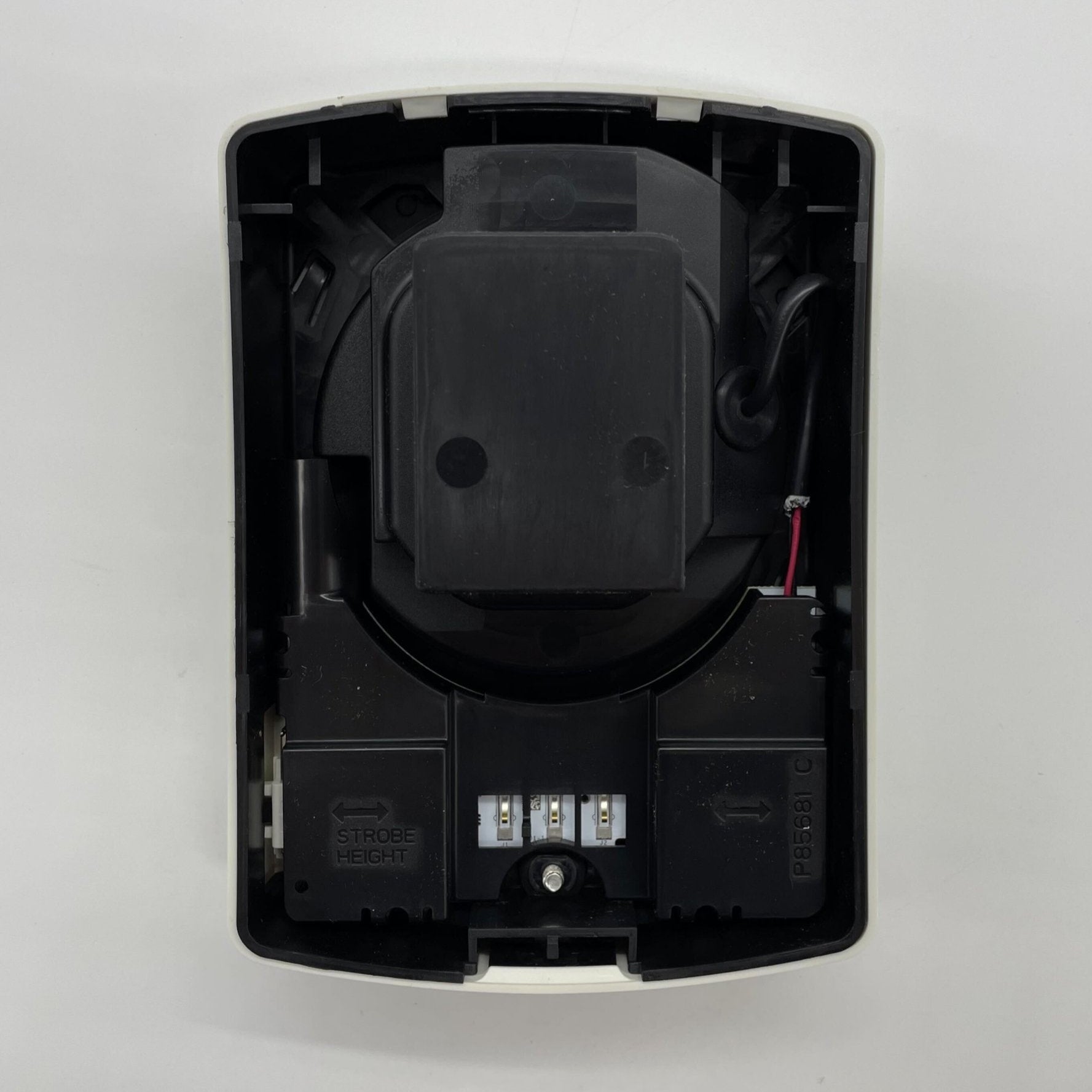

NFPA 72 calls for a 520 Hz signal in sleeping rooms because it rouses sleepers far more reliably than a high-pitched horn. The Eluxa sounder generates that tone inside the appliance, and one device covers both hazards: a switch picks Continuous, Code 3 or Code 3/Code 4, the last letting the panel swap between the fire and CO patterns.
- 80 dBA reverberant per UL 464 at 16.0, 24.0 and 33.0 V on all three patterns, and 80 dBA per ULC S525-16
- 0.098 A UL/ULC maximum current at 24 VDC on every horn setting
- Operating range 16 to 33 VDC or VFWR
- 6.35 in. H × 4.56 in. W × 1.54 in. D; listed for wall and ceiling mounting
- Indoor 32°F to 122°F at up to 93% humidity; UV stabilised plastic exceeding UL 94V-0
- Mounts to ELSPKBB back boxes, single-gang boxes or 4 in. square boxes; terminals for #12 to #18 AWG
ELFHNR-N is the red version, ELFHNW carries FIRE lettering, ELFHNW-CO reads CO. ELFHSW-N is the matching sounder strobe with 110 and 177 cd settings; this part has no strobe.
