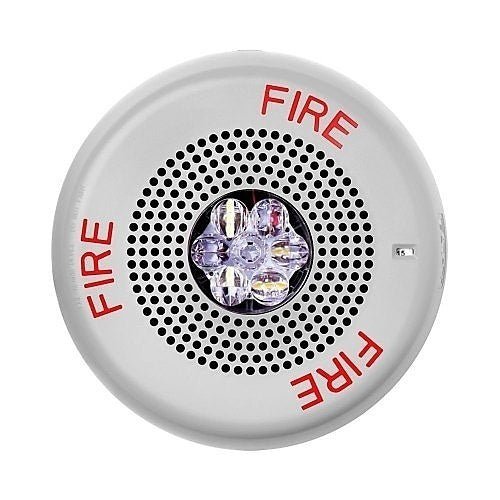

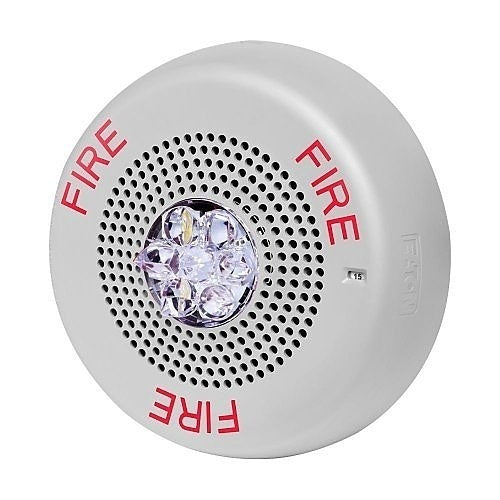

Eaton Wheelock ELCHSWC — Eluxa low-profile ceiling chime strobe in white, marked FIRE, with a six-setting LED strobe.
A chime strobe pairs a soft tone with a visible signal where a horn would be intrusive, which is why Eaton aims the Eluxa chime line at hospitals. Wiring can be two-wire, silencing the chime while the strobe stays active over Wheelock sync protocol, or four-wire for independent control of each.
- Ceiling candela settings 15, 30, 75, 110, 150 and 177, field selectable
- 24 VDC or 24 VFWR, regulated range 16.0 to 33.0 VDC
- Maximum current 0.017 A at 15 cd to 0.161 A at 177 cd
- 890 Hz tone in 1 Hz, 2 Hz, coded or Temporal 3 patterns, adjustable volume
- 78 dBA peak anechoic at 10 ft, 51 to 68 dBA reverberant
- 6.27 in. diameter × 2.29 in. deep; indoor, 32 to 122 °F
- UL 1638 and UL 464, CAN/ULC-S525 and S526, CSFM and FM
ELCHSRC is this same appliance in red. ELCHSW and ELCHSR are the wall models, on a different candela set — 15, 30, 75, 110, 135, 185 — so they do not substitute here. ELCHWC is the chime alone, and chime-only models ship with no lettering rather than FIRE.
