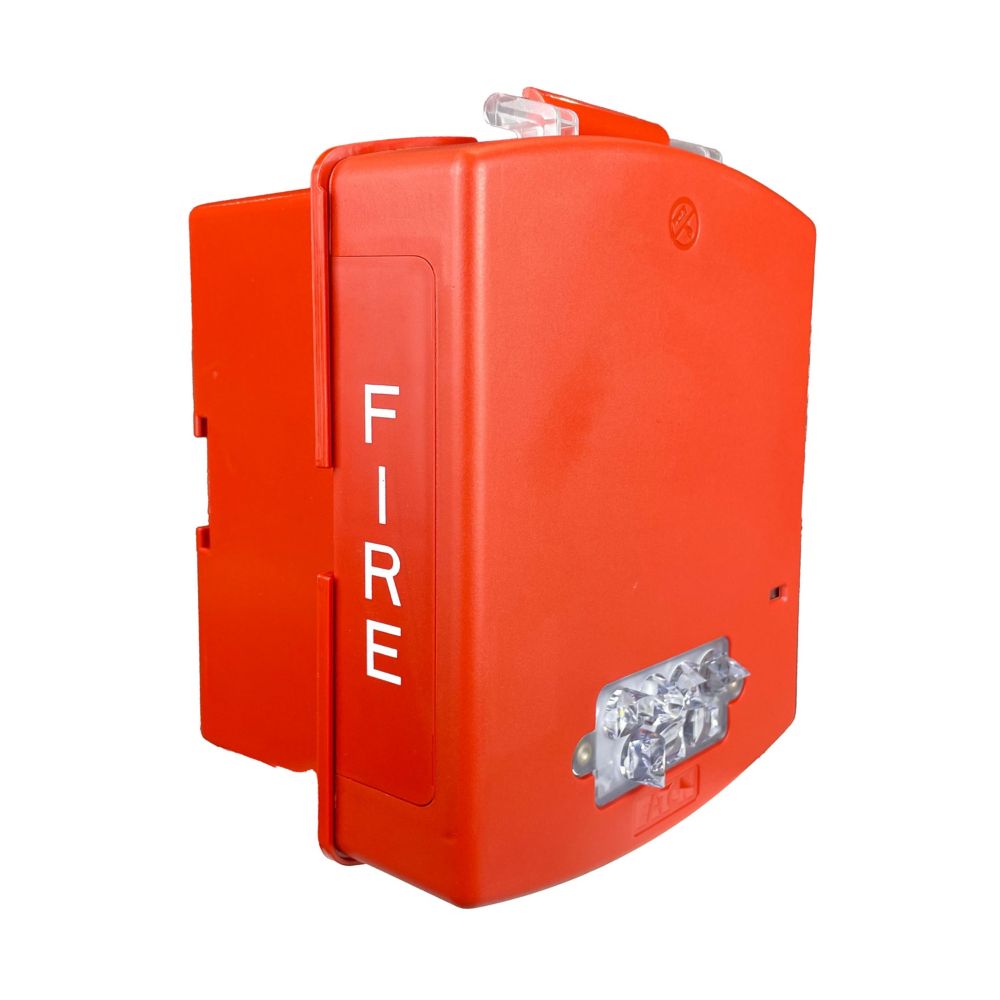

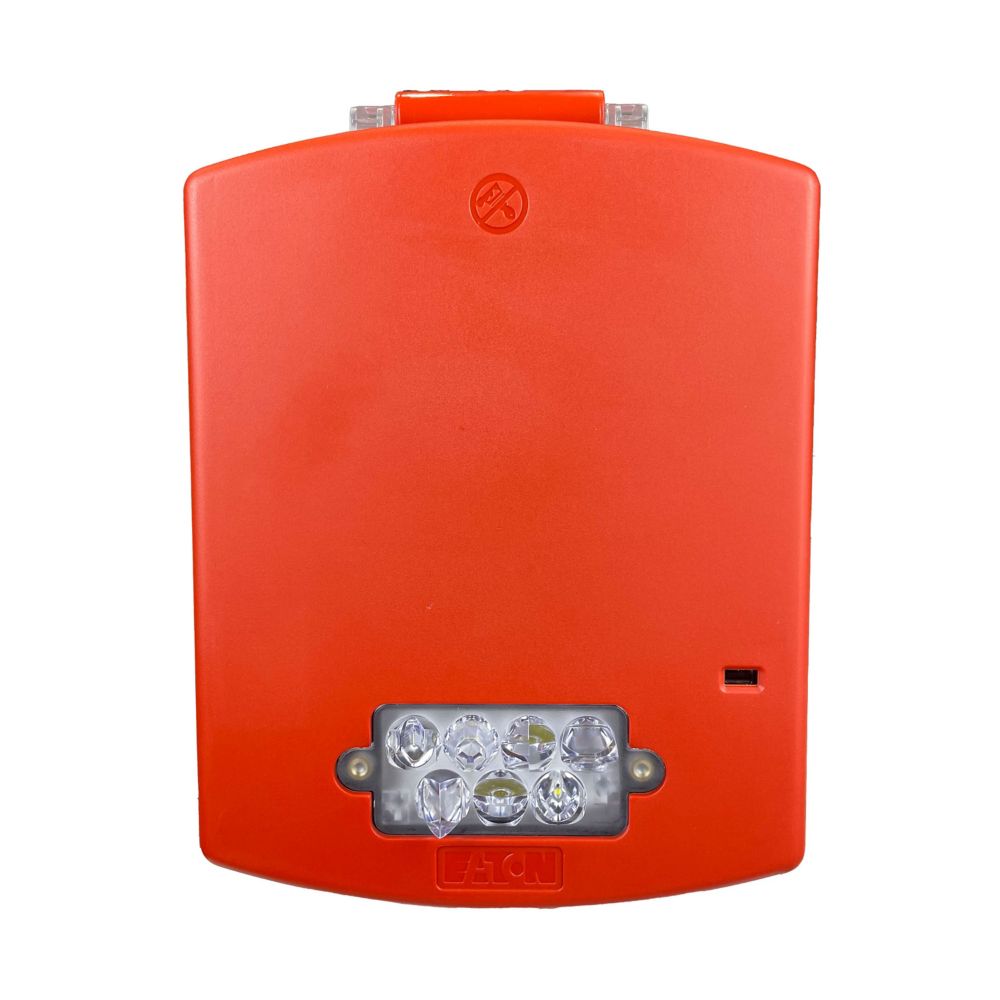

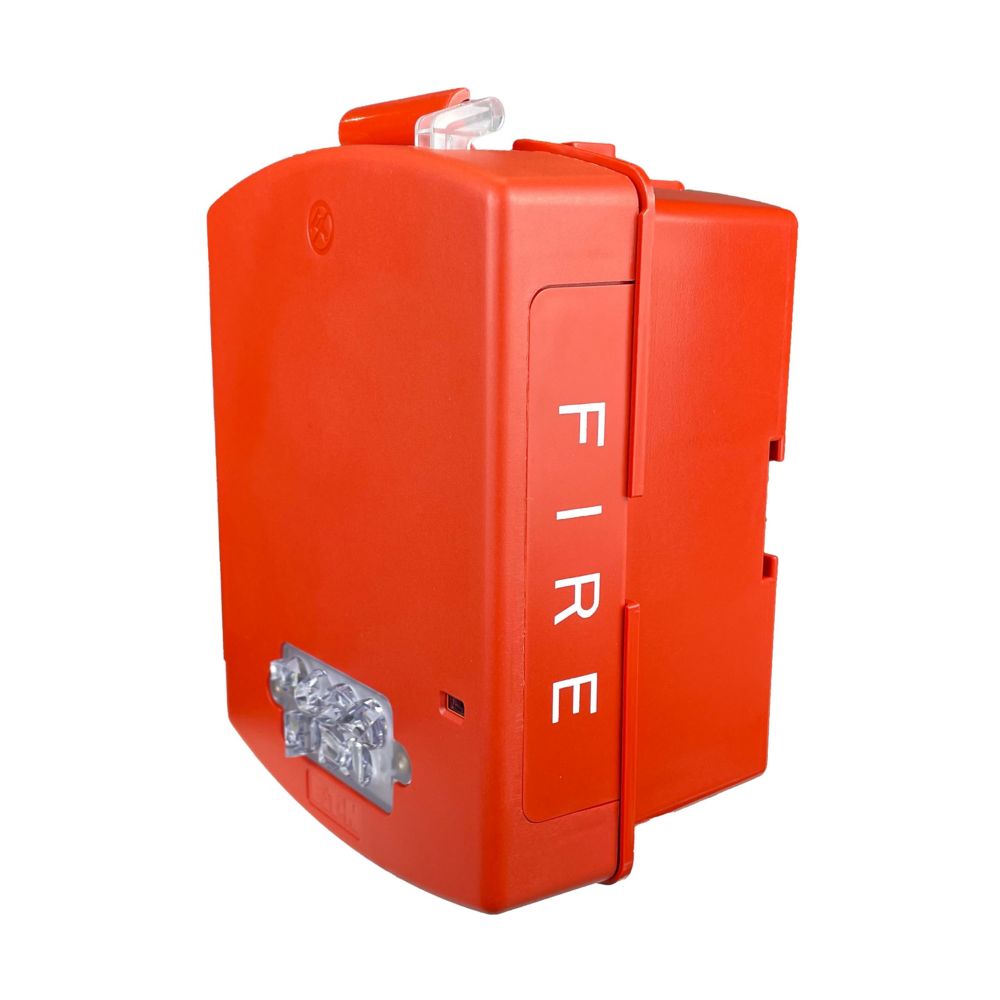

Eaton Wheelock EL4XST-FR — red Eluxa outdoor LED strobe, NEMA type 4X, FIRE lettering, six field-selectable candela settings.
Outdoor notification is a sealing problem as much as a signaling one. The Eluxa 4X series puts a standard six-candela LED strobe inside a corrosion-resistant enclosure rated for weather and washdown.
- Clear lens candela settings 15, 30, 75, 110, 150 and 185
- Maximum current at 24 VDC regulated: 0.026, 0.038, 0.070, 0.097, 0.179 and 0.206 A across those settings
- Operating voltage 16 to 33 VDC or FWR; flash rate 1 Hz with a 20 ms LED pulse
- NEMA type 3R and 4X, IP54 and IP66, tested to IP67; the 4X box takes 3/4 in. NPT entries
- Indoor or outdoor, 40 below zero to 150 °F, 95% RH; wall or ceiling mount
- Strobe only, no sounder; synchronizes with Wheelock DSM modules and power supplies
EL4XST-FW is the same strobe in white; EL4XSTA-ALW is amber ALERT and its candela set differs, at 15, 30, 75, 95, 150 and 177. EL4XHS-FR adds a horn, EL4XHN-NR is the horn alone, and EL3RST-FR is the NEMA 3R enclosure rather than 4X.
FAQ
Is the back box included?
Yes. Eaton states the outdoor Eluxa appliances include a mounting plate or surface box from the factory, and the 4X models are rated NEMA 4X and IP66 with the included EL4XBB box.
What candela settings does it have?
15, 30, 75, 110, 150 and 185 cd with the clear lens, field selectable.
Can it be ceiling mounted?
Yes. All Eluxa 4X/3R models are for indoor or outdoor use and wall or ceiling mounting.
What voltage does it need?
16 to 33 VDC or FWR, drawing 0.026 A at 15 cd up to 0.206 A at 185 cd on 24 VDC.
