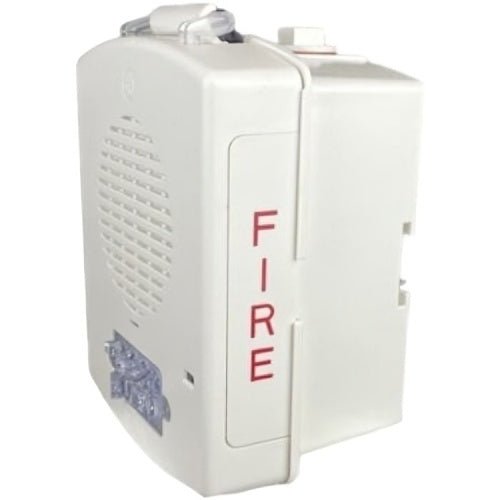

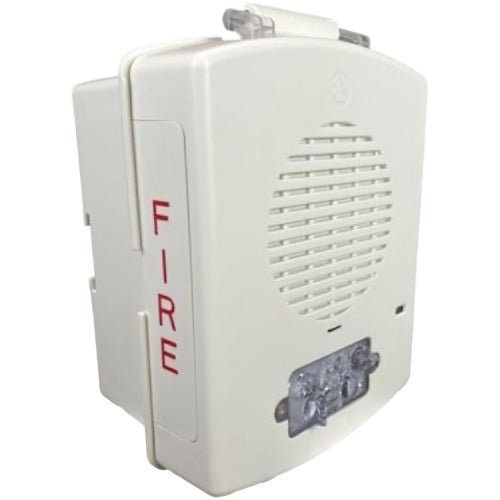

Eaton Wheelock EL4XSPST-FW — Eluxa outdoor NEMA 4X speaker strobe, white housing, clear lens, FIRE lettering, with the EL4XBB surface back box.
The Eluxa weatherproof series is for indoor or outdoor use and wall or ceiling mounting. The 4X model reaches NEMA Type 4X and IP66 with its surface back box, which resists corrosion and ice formation. The multi-candela LED strobe has six settings and a high-efficiency speaker covering 400 to 4000 Hz.
Specifications
| Strobe output |
15, 30, 75, 110, 150 or 185 cd, clear lens, 1 flash per second |
| Operating voltage |
16 to 33 VDC or FWR |
| Strobe current (24 VDC) |
0.026 A at 15 cd to 0.206 A at 185 cd |
| Speaker taps |
1/8 to 2 W at 25 Vrms; 1/8 to 8 W at 70.7 Vrms |
| Sound output |
76 to 94 dBA reverberant at 10 ft, by tap |
| Rating |
NEMA Type 4X, IP66 certified, tested to IP67 |
| Operating temperature |
-40°F to 150°F (-40°C to 66°C), 95% RH |
| Dimensions |
8 in. L x 6.5 in. W x 4.5 in. H; 2.3 lb |
| Wiring |
18 to 12 AWG, two-wire |
Features
- Pre-wire and pre-test terminals in the back box; removing the appliance causes a supervision fault at the panel
- Synchronizes with Wheelock DSM sync modules, PS power supplies or panels with the Wheelock sync protocol; flashes non-synchronized when connected directly to a panel
- Self-supporting hanging hinge for installation
- Tamper-resistant candela selector with the setting visible after installation
Related models
-
EL4XSPST-FR — red version.
-
EL3RSPST-FW — NEMA 3R version on a mounting plate.
-
EL4XSPK-NW — 4X speaker without strobe.
FAQ
Is the back box included?
Yes. The outdoor Eluxa appliances include a mounting plate or surface mounting box from the factory, and the 4X models reach NEMA 4X and IP66 with the included accessory.
What voltage does the strobe need?
16 to 33 VDC or full-wave rectified (FWR), with current from 0.026 A at 15 cd to 0.206 A at 185 cd on 24 VDC.
Which speaker taps are available?
1/8, 1/4, 1/2, 1 and 2 W at 25 Vrms, plus 4 and 8 W at 70.7 Vrms.
Will it synchronize with other strobes?
Yes, with a panel that has the Wheelock sync protocol, a DSM dual sync module or a Wheelock power supply. Connected directly to a panel without sync, it flashes non-synchronized.
