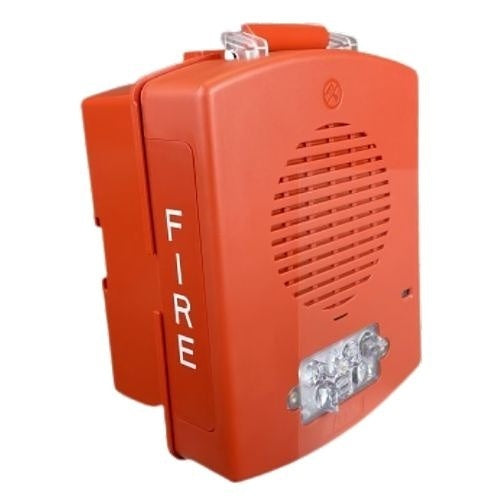

The Eaton Wheelock EL4XMTST-FR is an Eluxa outdoor multi-tone horn strobe rated NEMA 4X and IP66, in red with a clear LED lens and FIRE lettering. It is UL certified under UL 1971, UL 1638 and UL 464 and is suitable for indoor or outdoor use on a wall or ceiling. The 4X series installs on the pre-wire capable EL4XBB surface box.
Specifications
| Candela |
15/30/75/110/150/185 cd, selectable |
| Operating voltage |
16-33 VDC/FWR |
| Strobe current at 15 cd |
0.026 A (24 VDC) |
| Strobe current at 185 cd |
0.206 A (24 VDC) |
| Horn output, high |
Up to 88 dBA at 10 ft |
| Flash rate |
1 Hz, 20 ms pulse |
| Enclosure ratings |
NEMA 4X, IP66; tested to IP67 |
| Operating temperature |
-40°F to 150°F, 95% RH |
| Dimensions (4X) |
8" L x 6.5" W x 4.5" H |
| Wiring |
18 to 12 AWG |
Features
- Tones include horn, bell, March Time, Code 3 horn, Code 3 tone, slow whoop, siren and hi/lo
- Tamper-resistant candela selector with setting visible after installation
- Wheelock sync with DSM modules, PS power supplies, SAFEPATH and panels with Wheelock sync protocol
- Audible can be silenced while strobes keep flashing
- Hinged mounting plate with pre-wire, pre-test terminals
- Corrosion and ice resistant (4X)
Related models
EL4XMTST-FW is the white version and EL3RMTST-FR the NEMA 3R version. EL4XMT-NR is the multi-tone horn without strobe.
FAQ
Is it a strobe only?
No. Per the Eaton data sheet the EL4XMTST is a multi-tone horn strobe with selectable tones and a clear LED strobe.
Can it be used outdoors?
Yes. It is certified NEMA 4X and IP66 (tested to IP67) and rated -40°F to 150°F for indoor or outdoor, wall or ceiling use.
What candela settings are available?
Six settings: 15, 30, 75, 110, 150 and 185 cd.
Will it synchronize with other Wheelock appliances?
Yes, with Wheelock DSM sync modules, PS power supplies, SAFEPATH products and panels with the Wheelock sync protocol.
