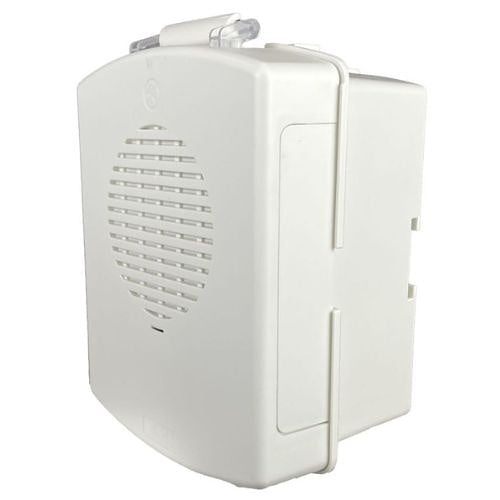

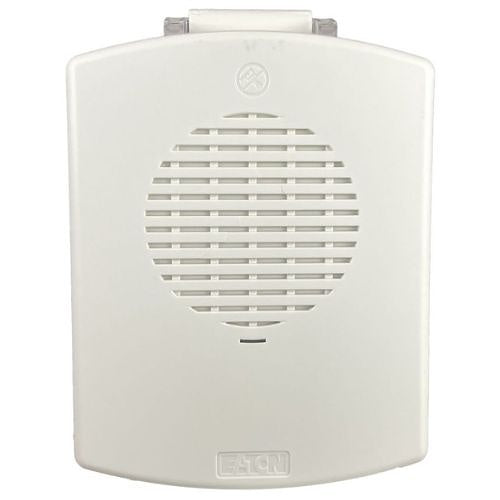

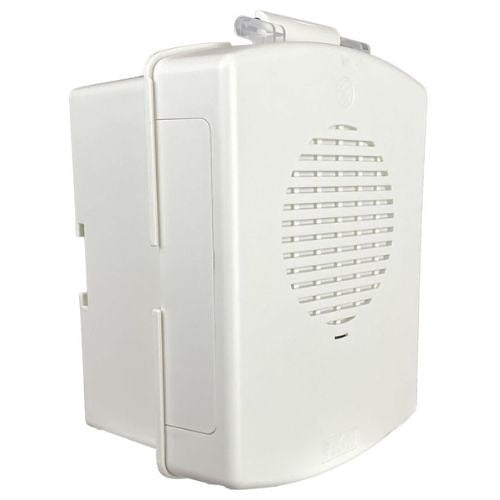

Eaton Wheelock EL4XHN-NW is an Eluxa NEMA 4X outdoor horn in a white plastic housing, supplied with a 4X surface box. It is built for weatherproof fire alarm notification in wet, dusty or washdown areas such as loading docks, parking structures and plant exteriors.
Specifications
| Product type |
Horn |
| Housing |
White plastic, NEMA 3R/4X rated series |
| Voltage |
24 V regulated, 16-33 V; also 12 V regulated, 8-17.5 V |
| Sound output |
90 dBA high / 86 dBA low at 24 V |
| Operating temperature |
-40 to 150 °F (-40 to 66 °C), up to 95% RH |
| Wire |
18 to 12 AWG, 2 wire |
| Size |
8 x 6 x 6 in. |
| Weight |
4 lb |
| Warranty |
3 years |
| UPC |
786697065767 |
Features
- Mounts on the pre-wire capable EL4X back box
- Part of the Eaton Eluxa outdoor 3R/4X horn and horn strobe family
- Standards include UL 464 and CAN/ULC-S525
