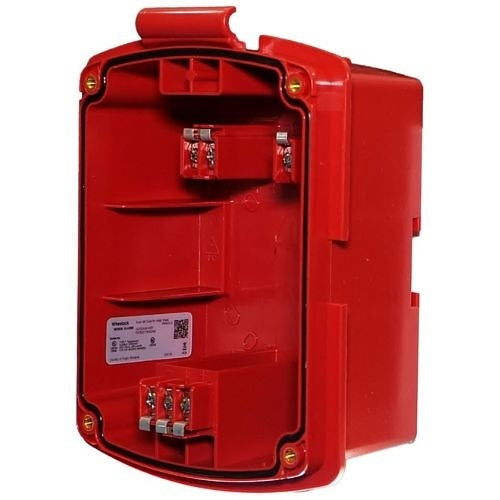

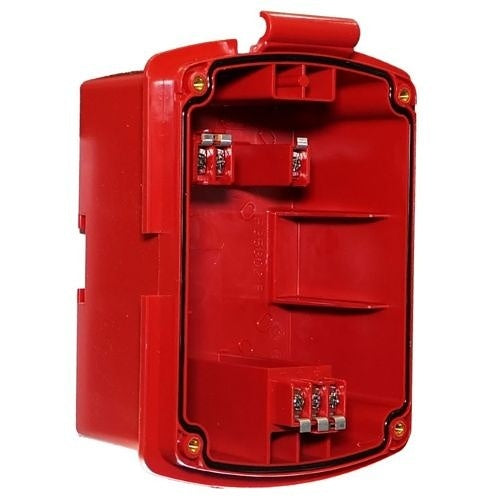

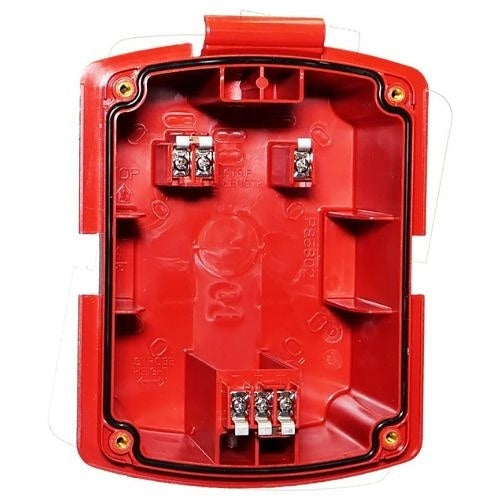

Eaton Wheelock EL4XBB-R — the red NEMA 4X surface back box for the Eluxa weatherproof notification line.
On this line the accessory sets the rating, not the appliance: EL3RMP is the plate that flush mounts to a 4 in. square box and yields Type 3R and IP54, while the EL4XBB is the surface box that yields Type 4X and IP66. Eluxa 4X/3R models are listed for wall or ceiling mounting, so this is neither a wall-only nor a ceiling-only box.
- Takes the Eluxa 4X/3R horns, strobes, horn strobes, multi-tone appliances and speakers
- Pre-wire and pre-test: a shunt across adjacent positive terminals proves the circuit, then opens permanently once a device is fitted
- Two mounting tabs, two supplied #10 screws, 5-9/16" hole spacing
- Two 3/4" NPT plugs; conduit fittings must be Type 4X/IP66 and UL certified
- Terminals accept 18 to 12 AWG
- Appliance hangs on the box hook and takes four #8-32 screws; hook on top for wall mounting
Eaton states the outdoor Eluxa appliances include a mounting accessory from the factory, so a separately bought EL4XBB is a spare or a pre-wire box. EL4XBB-W is the white version.
FAQ
Which appliances use the EL4XBB-R?
The Eluxa 4X outdoor horns, strobes, horn strobes, speakers and speaker strobes use the EL4XBB surface back box.
Does it change the rating?
Yes. The 4X appliances are rated NEMA Type 4X and IP66 when used with this back box; the 3R models use the EL3RMP plate for Type 3R and IP54.
Can it be mounted on a ceiling?
Yes. Eluxa 4X/3R models are for wall or ceiling mounting.
Is a back box already included with the appliance?
Eaton states the outdoor Eluxa appliances include a mounting accessory from the factory, so a separate EL4XBB-R is usually a spare or a pre-wire box.
