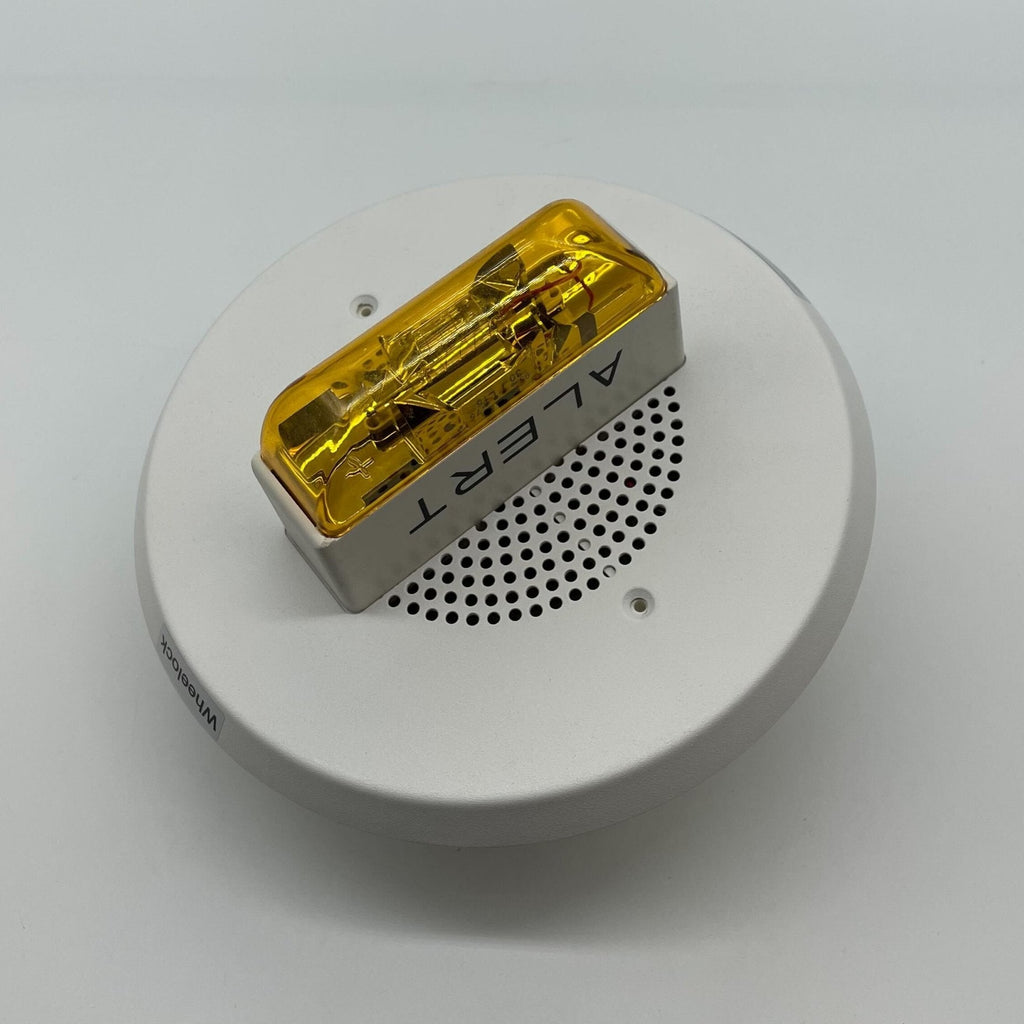

Eaton Wheelock E90A-24MCC-ALW is a ceiling-mount speaker strobe from Eaton Wheelock with a 24 V multi-candela strobe and ALERT lettering on a white housing. The strobe candela is field selectable at 15, 30, 75 or 95 cd.
Features
- Field-selectable strobe: 15/30/75/95 cd
- Speaker input 25 or 70.7 VRMS with taps from 1/8 to 2 W

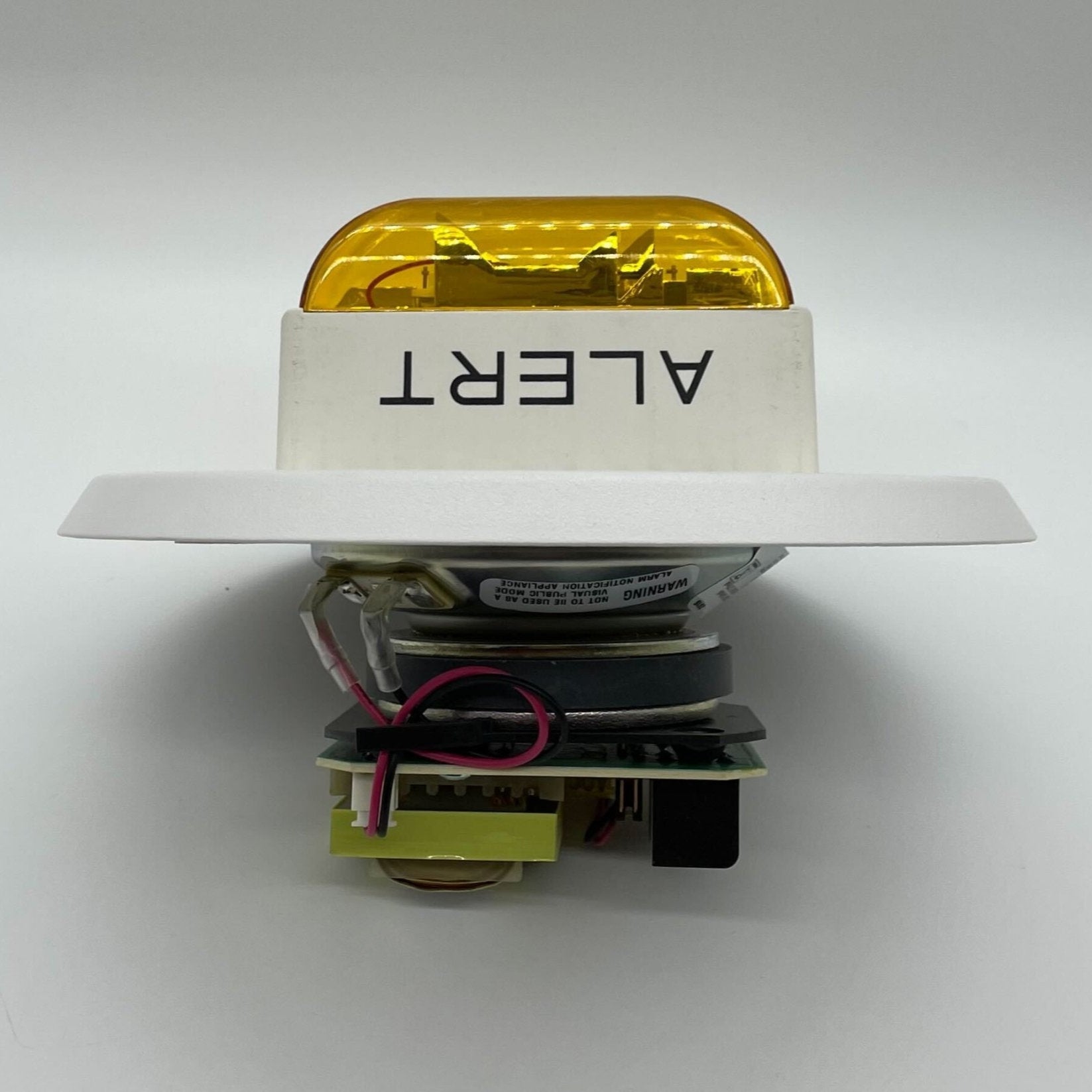

- ALERT lettering, white housing
- Surface or flush mounting on a 4 in square back box with extension ring
- UL 1480 and UL 1971 certified; CSFM approved
Specifications
| Strobe voltage |
Regulated 16 to 33 VDC |
| Speaker input |
25 / 70.7 VRMS |
| Candela |
15 / 30 / 75 / 95 |
| Dimensions |
7.327 in diameter x 2.68 in deep |
| Temperature |
33.8 to 122 F (0 to 50 C), 93% max humidity |
| Approvals |
UL 1480, UL 1971, CSFM |
