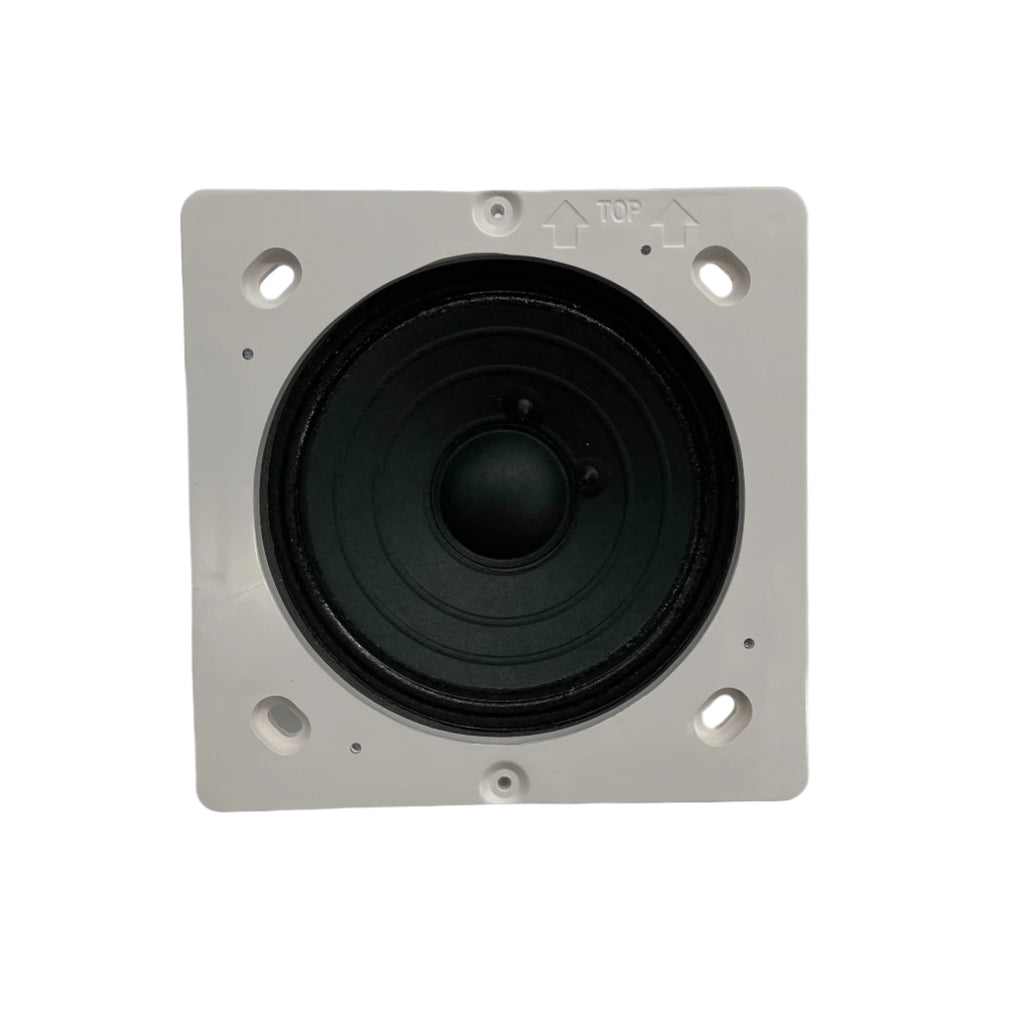

Eaton Wheelock E90-R Speaker, Ceiling, Red, No Lettering, 25/70V, Indoor
The Wheelock E70 and E90 speakers feature high efficiency sound output with dual voltage (25/70 VRMS) capability and field selectable taps. The speakers provide high audio output with clear audibility and are designed to meet the critical needs of the life safety industry for effective emergency voice communications.
Key Features

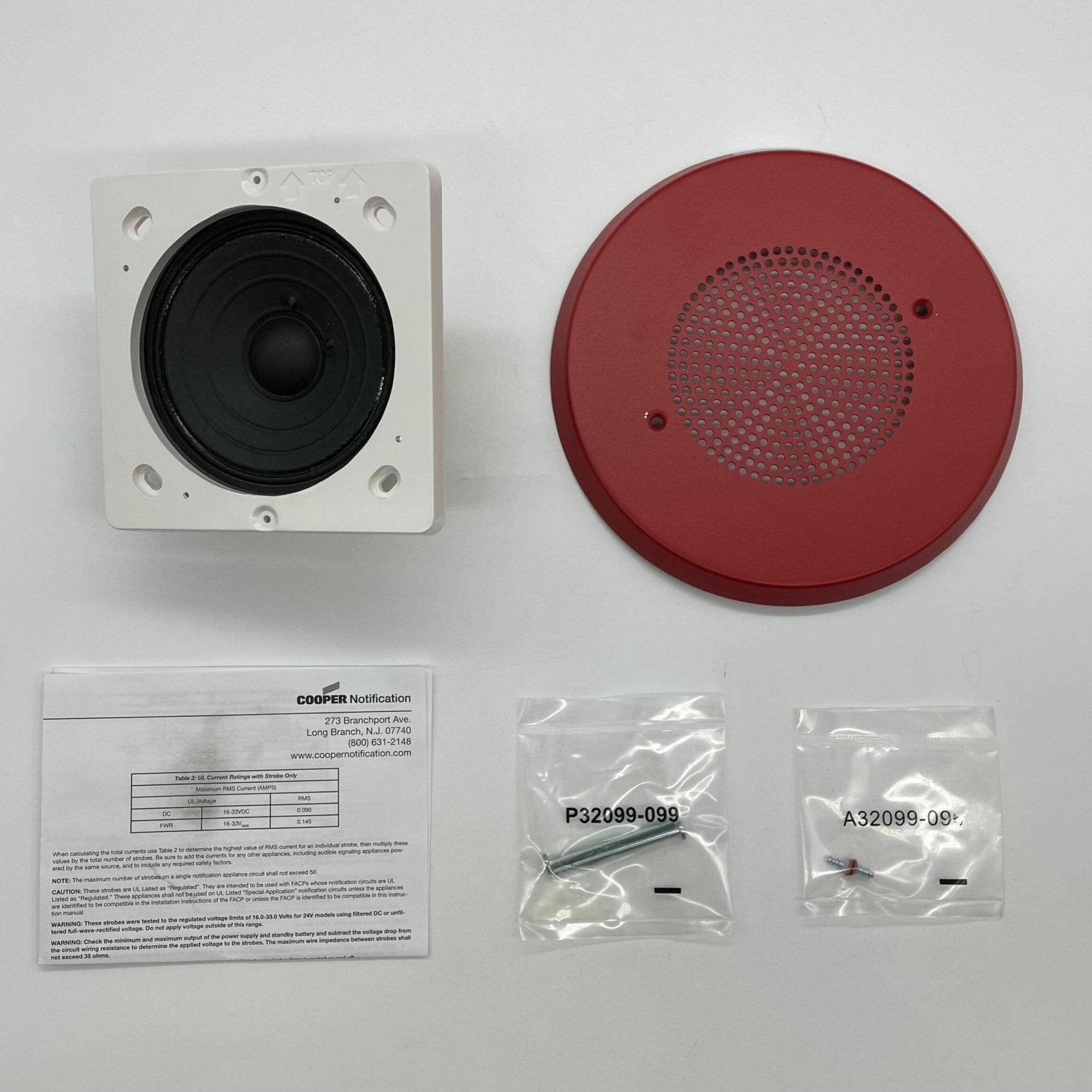

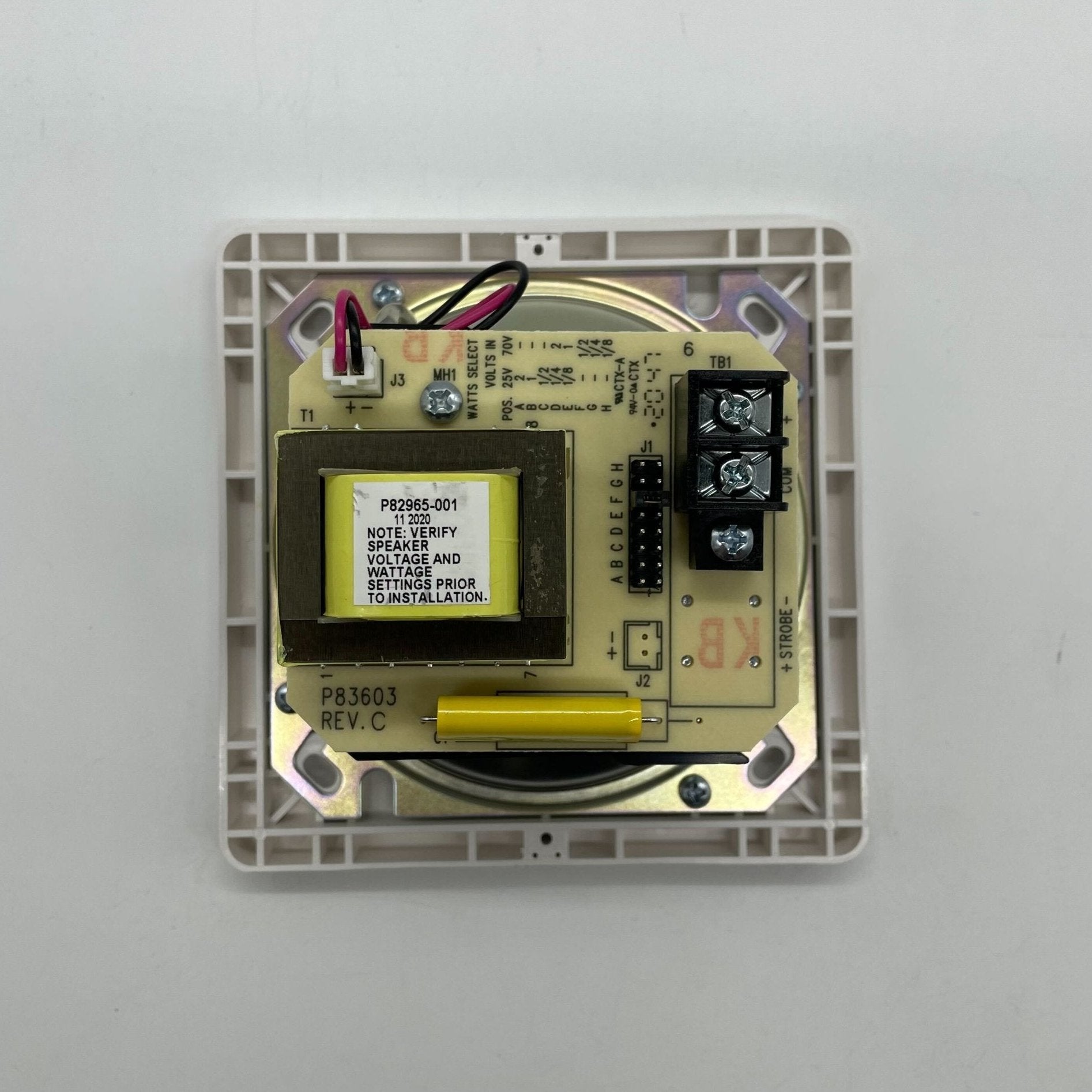

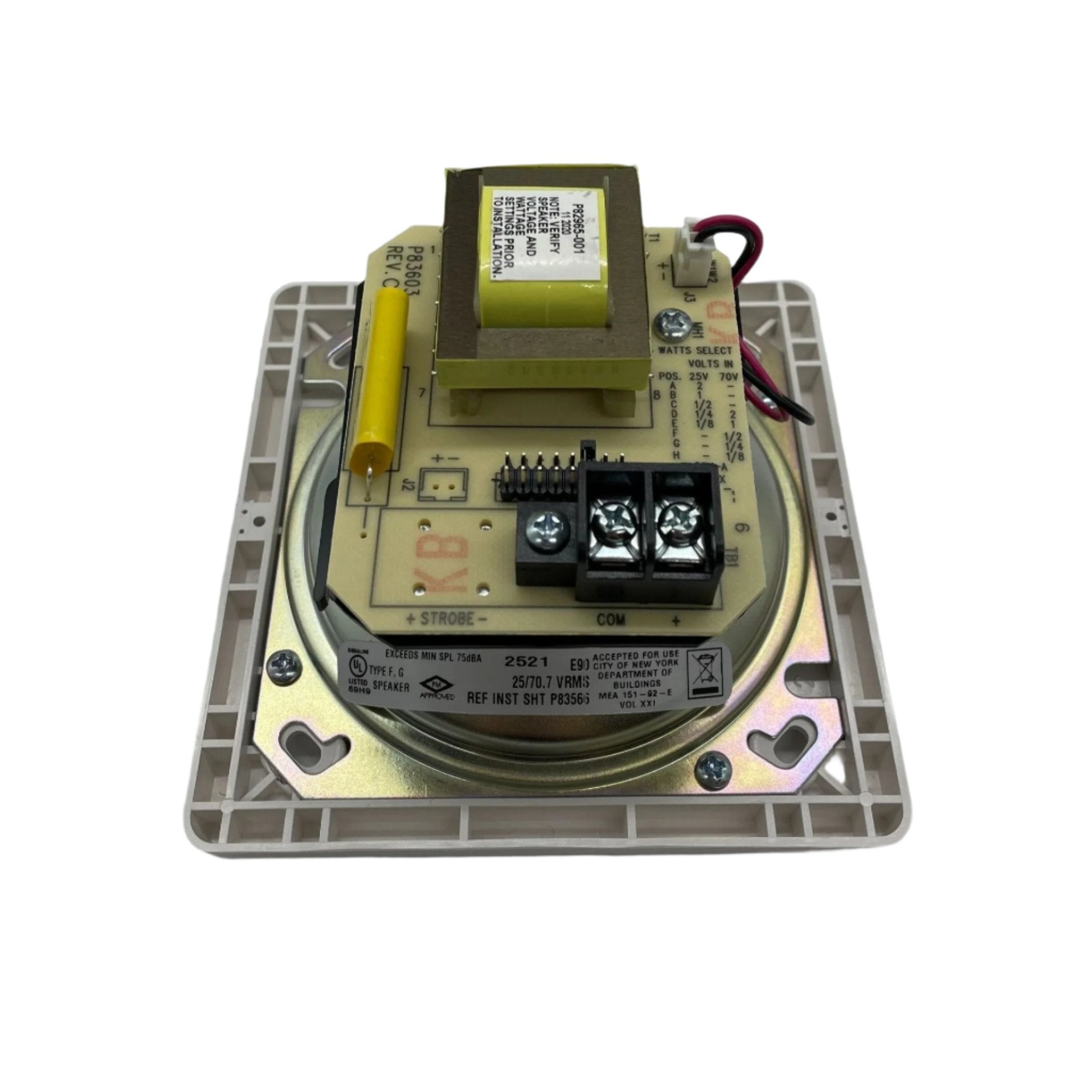

- Built-in level adjustment feature and snap-on cover with no visible mounting screws
- 4 in. square backbox prevents wire damage
- For the E70 line, no extension ring required and for the E90 models an optional Extender (E90 Ext) is available
Specifications
| UPC |
786697178672 |
| Product Length/Depth |
0.455 in |
| Product Height |
7.26 in |
| Product Width |
7.26 in |
| Product Weight |
1.586 lb |
| Product Type |
Speaker |
| Mounting Method |
Ceiling |
| Housing color |
Red |
| Indoor/outdoor |
Indoor |
| Housing material |
UV stabilized plastic |
| Lettering |
No lettering |
| Voltage |
70 V 25 V |
| Operating Temperature |
33.8°F to 120.2°F (0°C to 49°C) & maximum humidity of 93% |
| Compliance and standards |
CSFM UL FCC |
