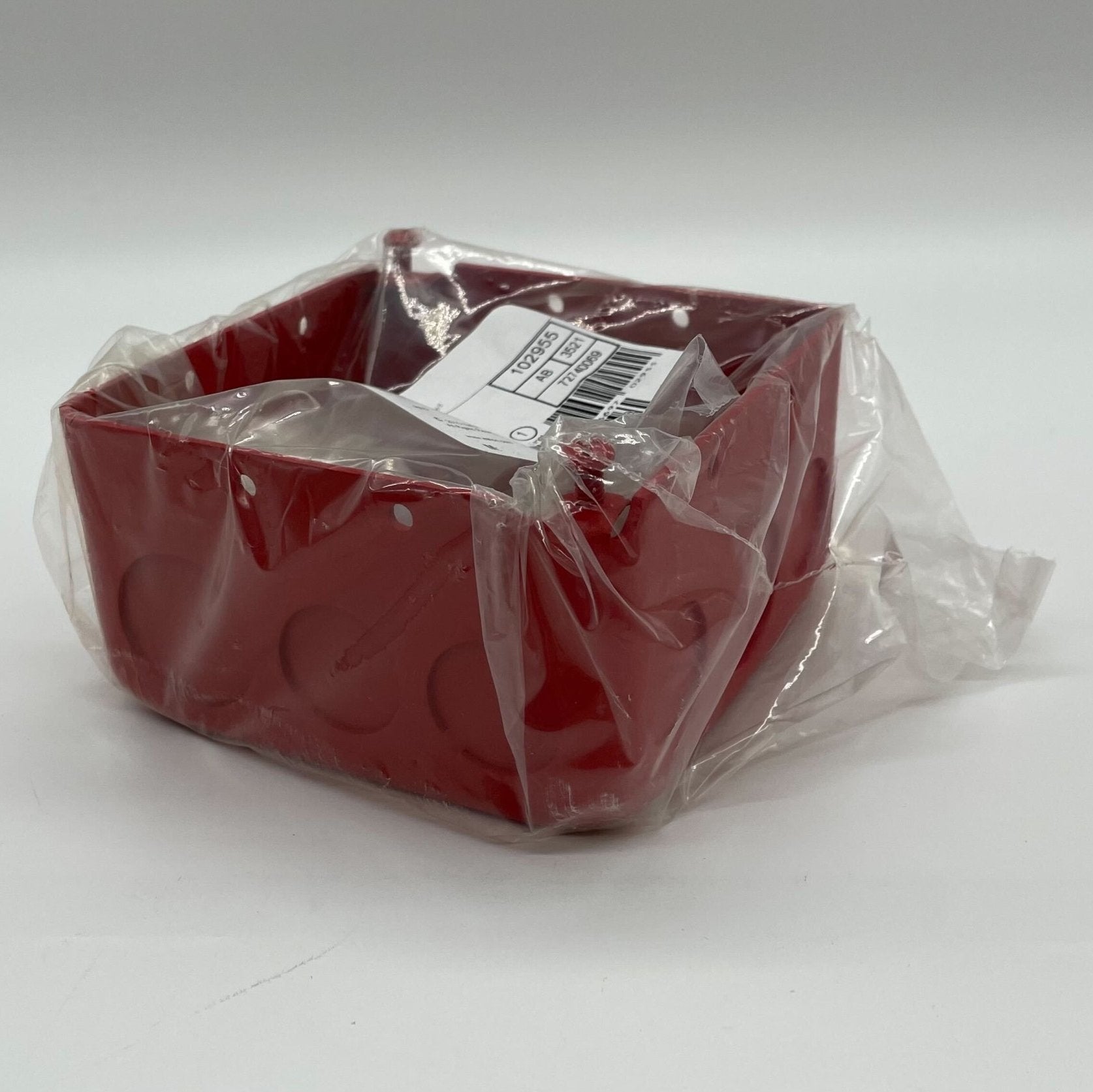

Eaton Wheelock DBB-R — deep 4 in. square steel back box for Wheelock signaling appliances.
The DBB is the deeper of the two standard Wheelock surface back boxes, and depth is what it buys. Eaton rates the shallower BB for four field conductors while the DBB takes eight of the same gauge, which decides the job when an appliance is wired in and out, or when 3/4 in. fittings and sheathed cable eat the wiring room. It ships with knockouts for surface, concealed conduit and semi-flush work, and is painted to match the signal.

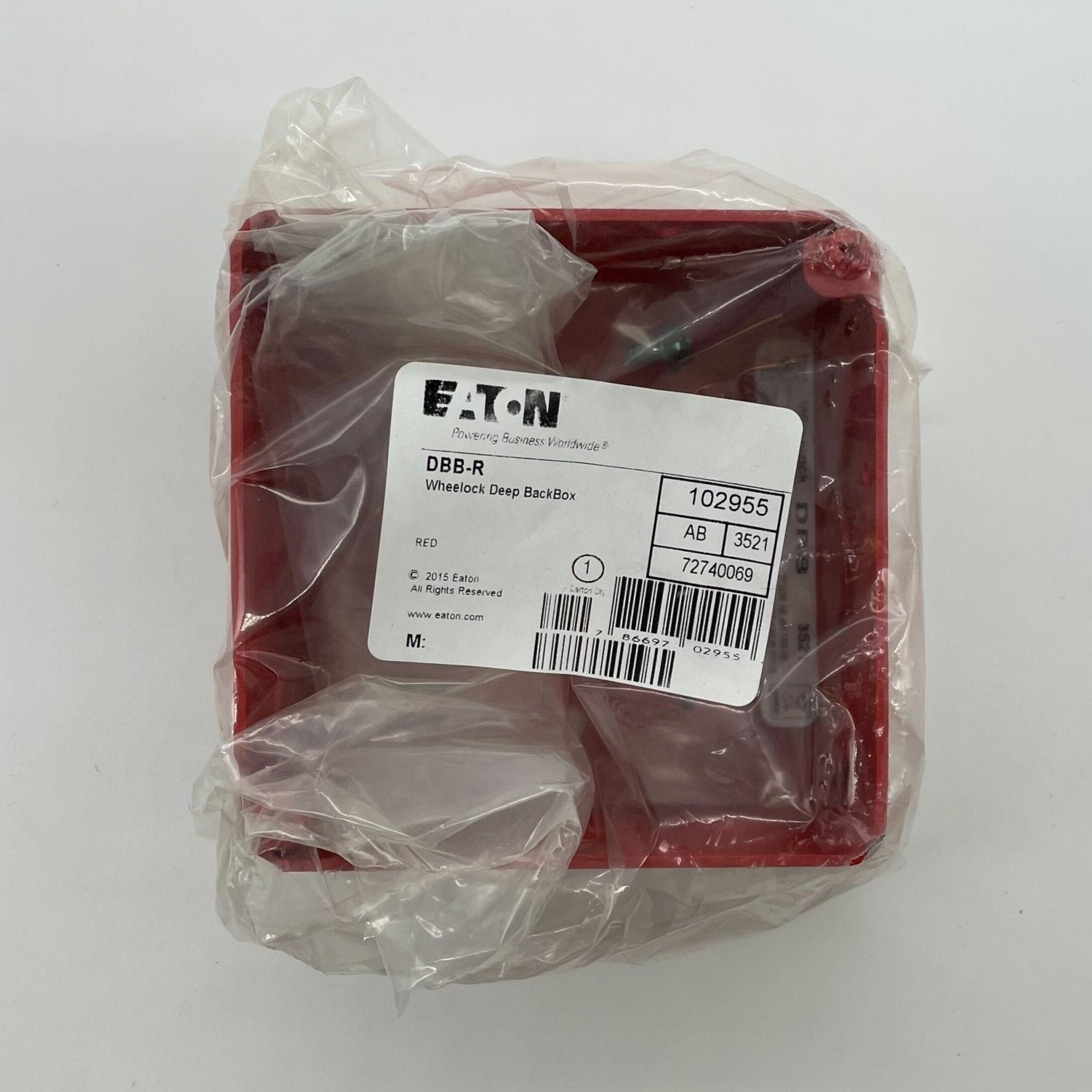

- Eaton order code 2955
- Face 4" square; depth 2-3/16"
- Two #8-32 tapped mounting holes on 3-3/8" centers

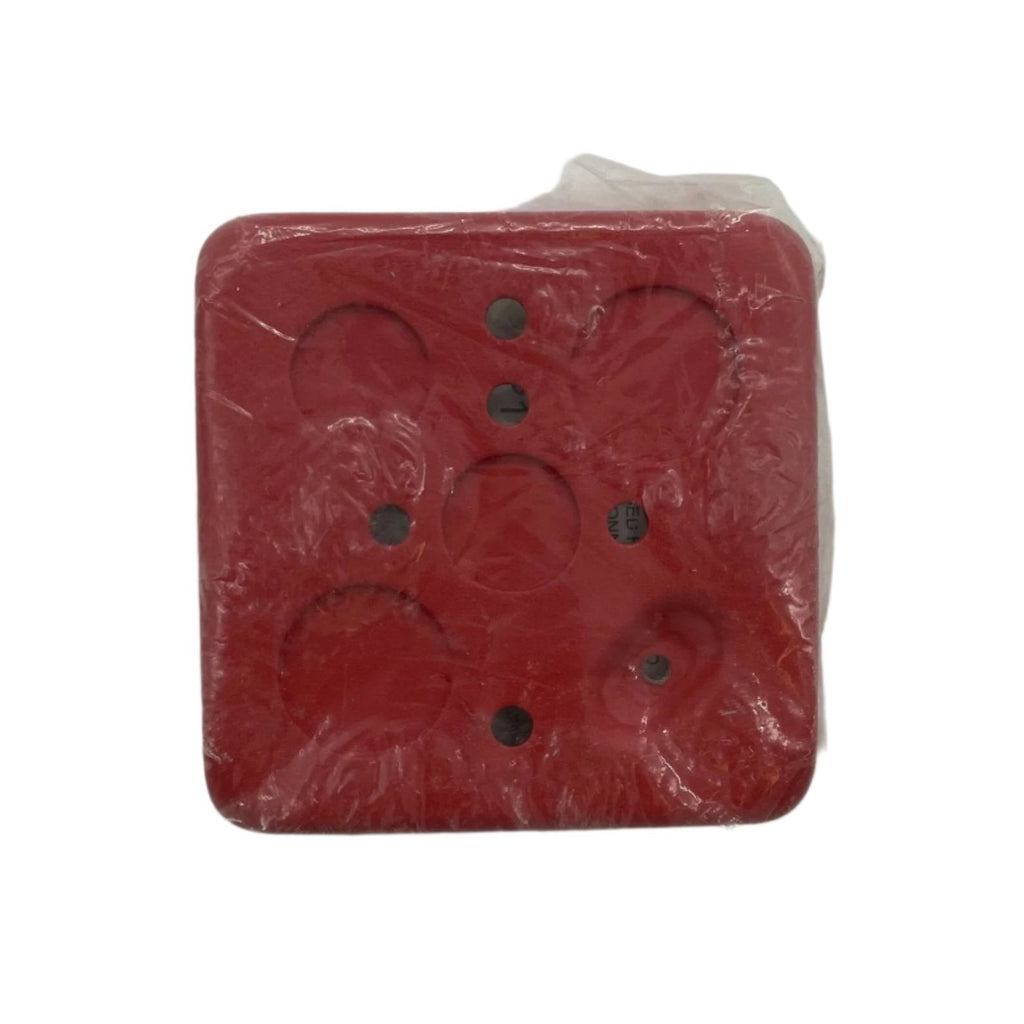

- Knockouts provided for 1/2" and 3/4" conduit
- Maximum 8 conductors at #18, #16, #14 or #12 AWG
- Used with Series 31T, 43T, AMT, ET-1010, HS4, HS, MB, MT, MT4 and RSS appliances
The name is the trap. This is a 4 in. box that is deep, not a box four inches deep: Eaton dimensions it at 2-3/16". The shallower BB, red order code 2830, looks nearly identical but is limited to four conductors, and SHBB, SBB and WBB are different boxes for other appliance series.
