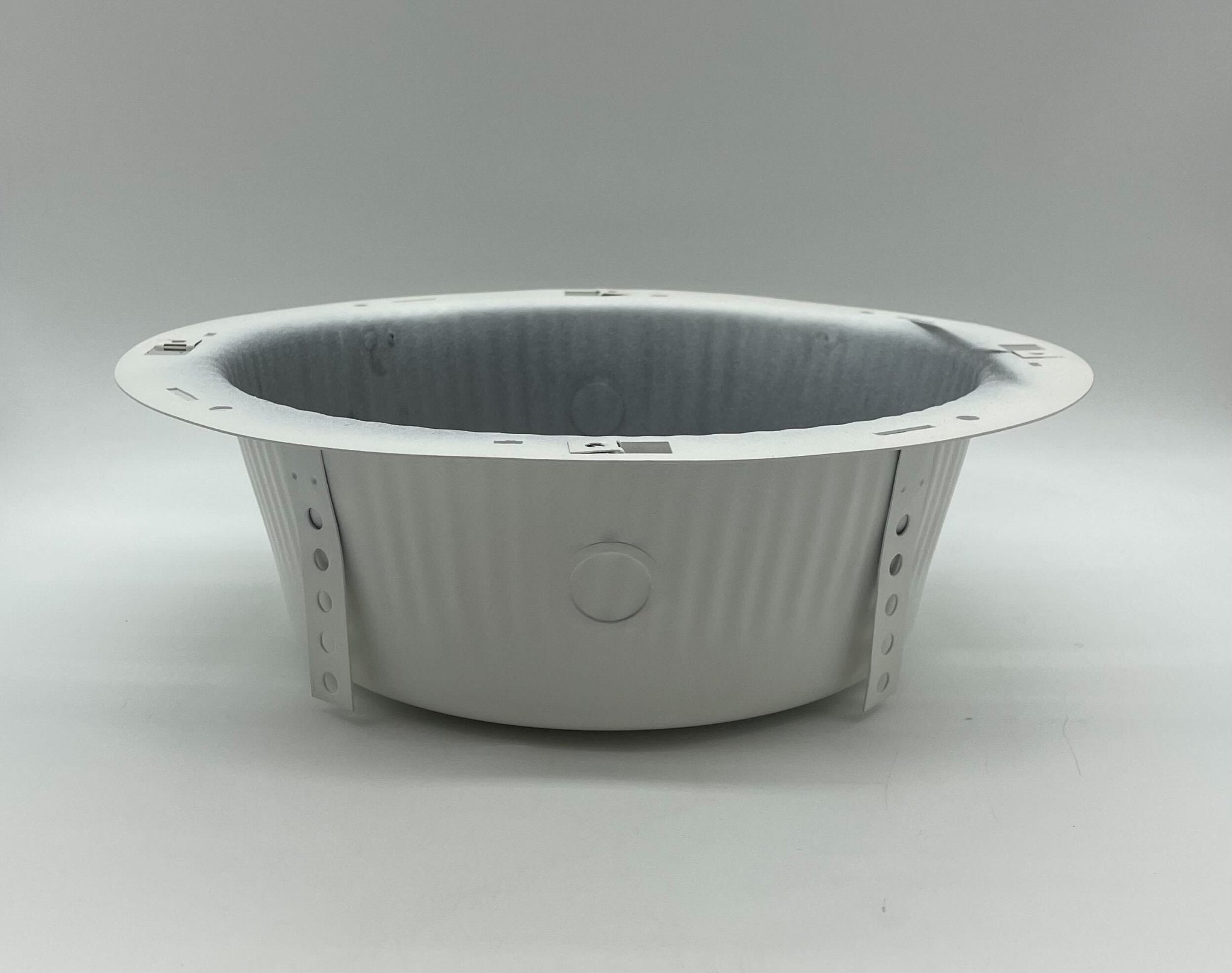

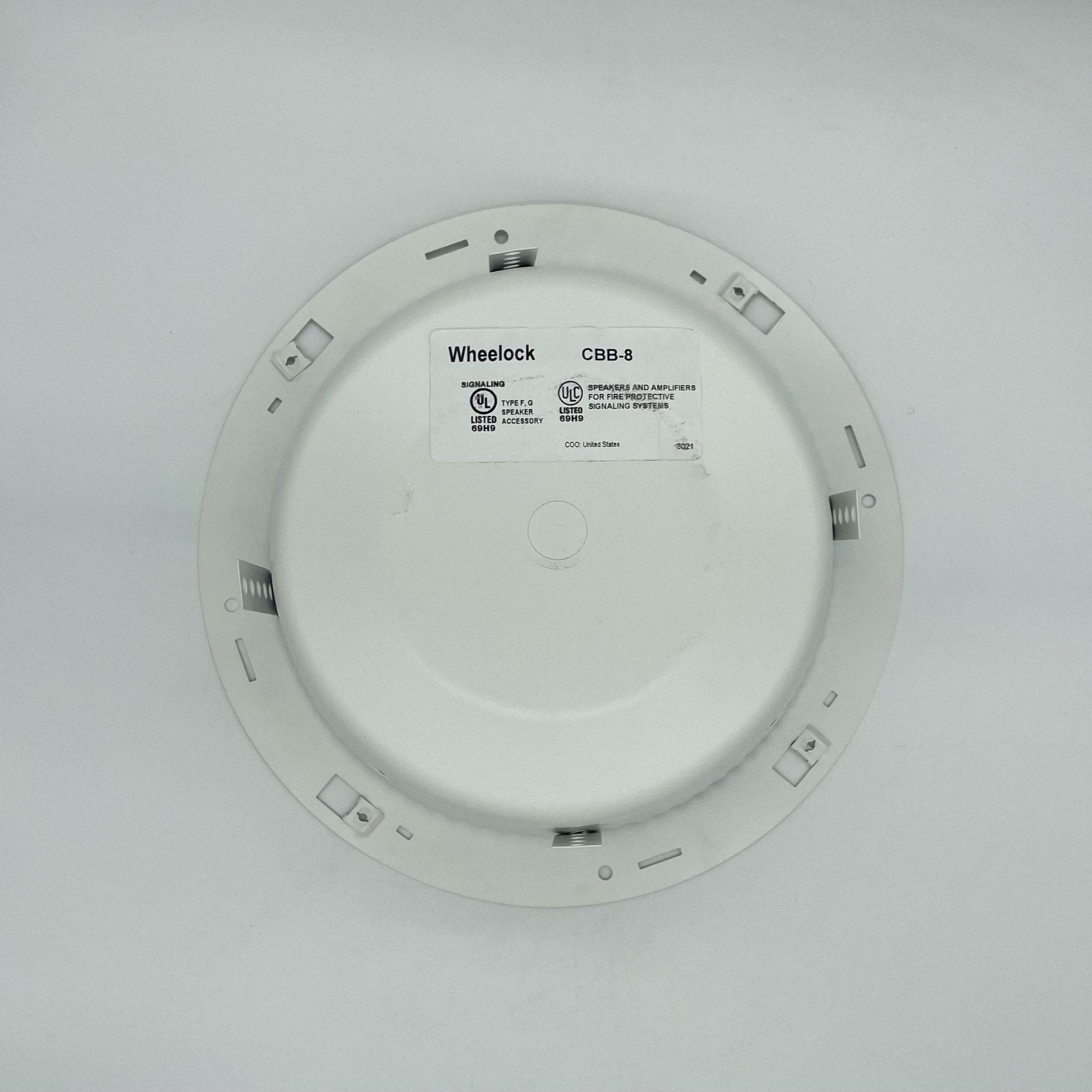

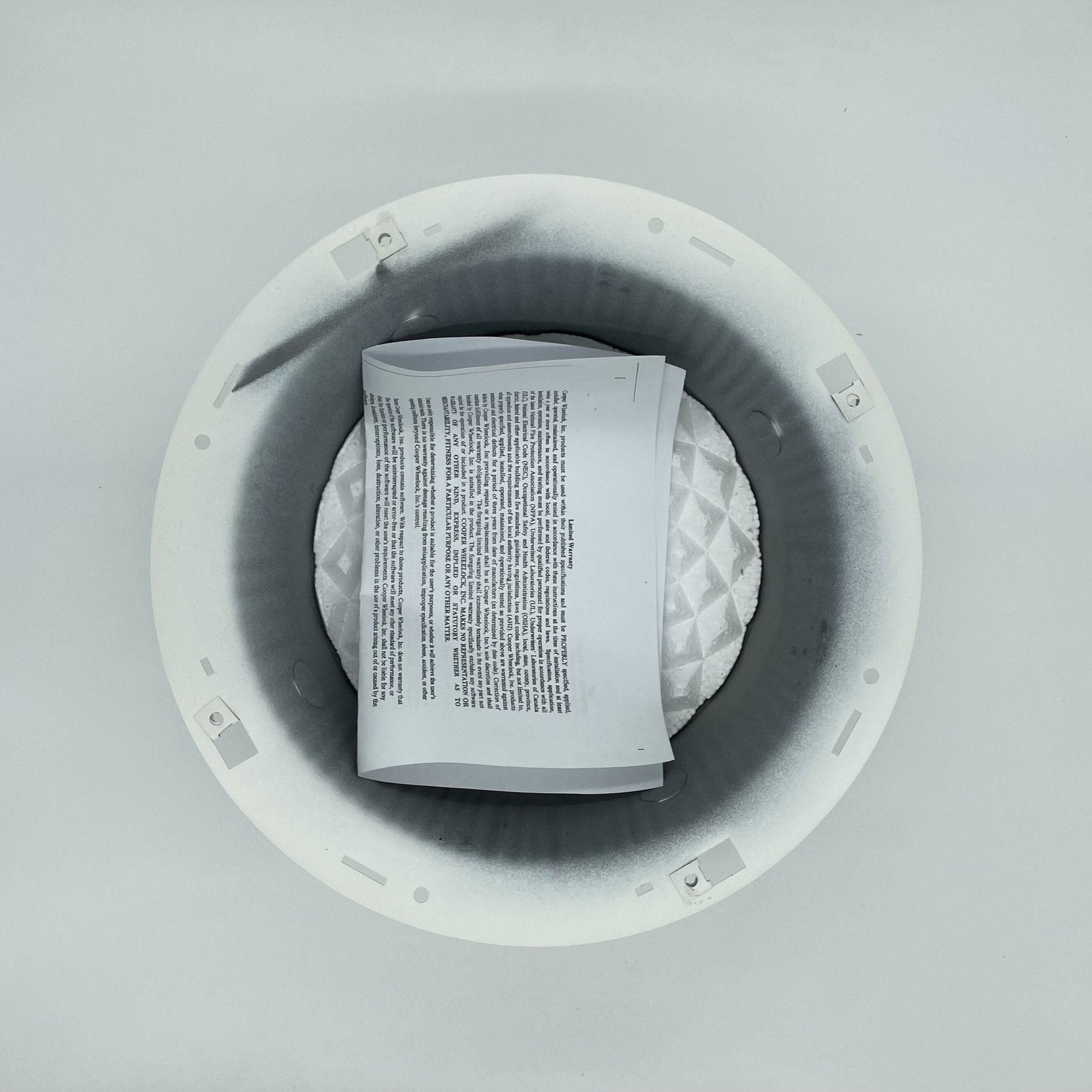

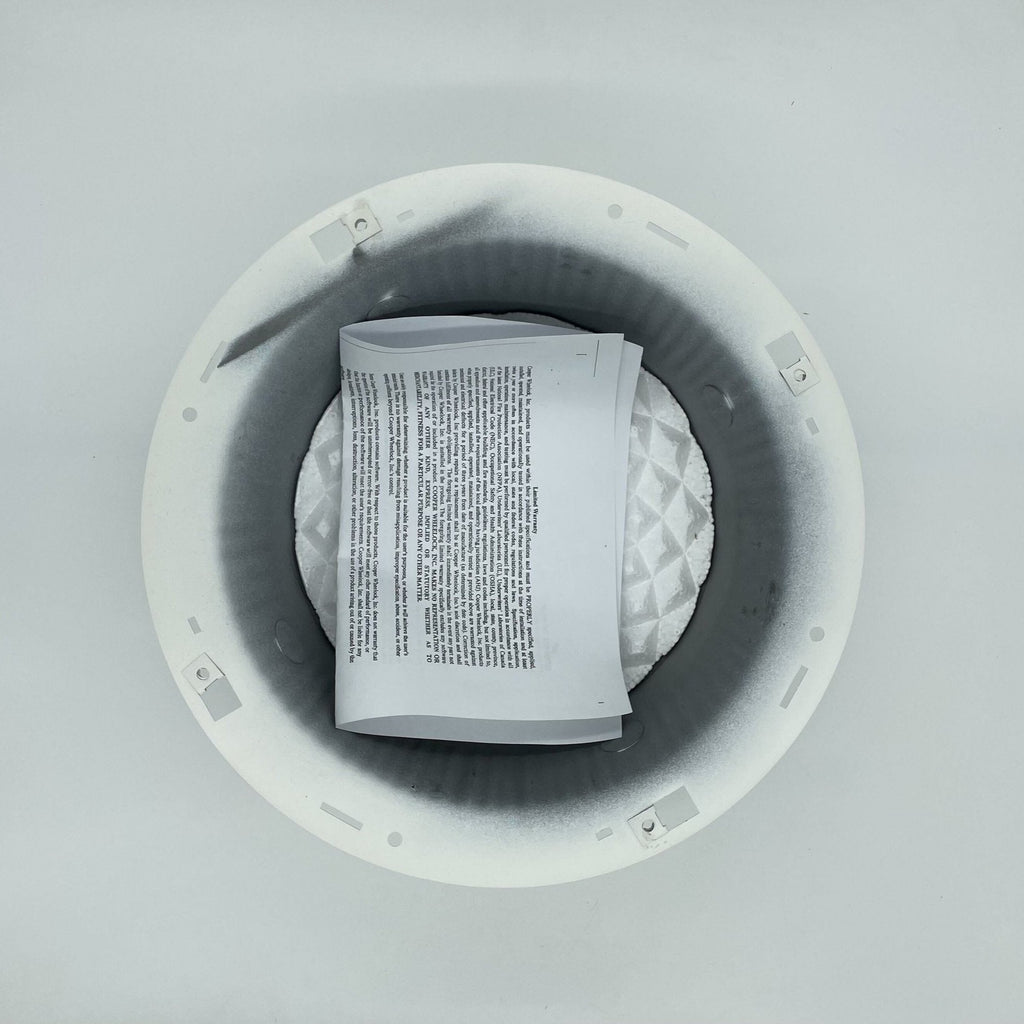

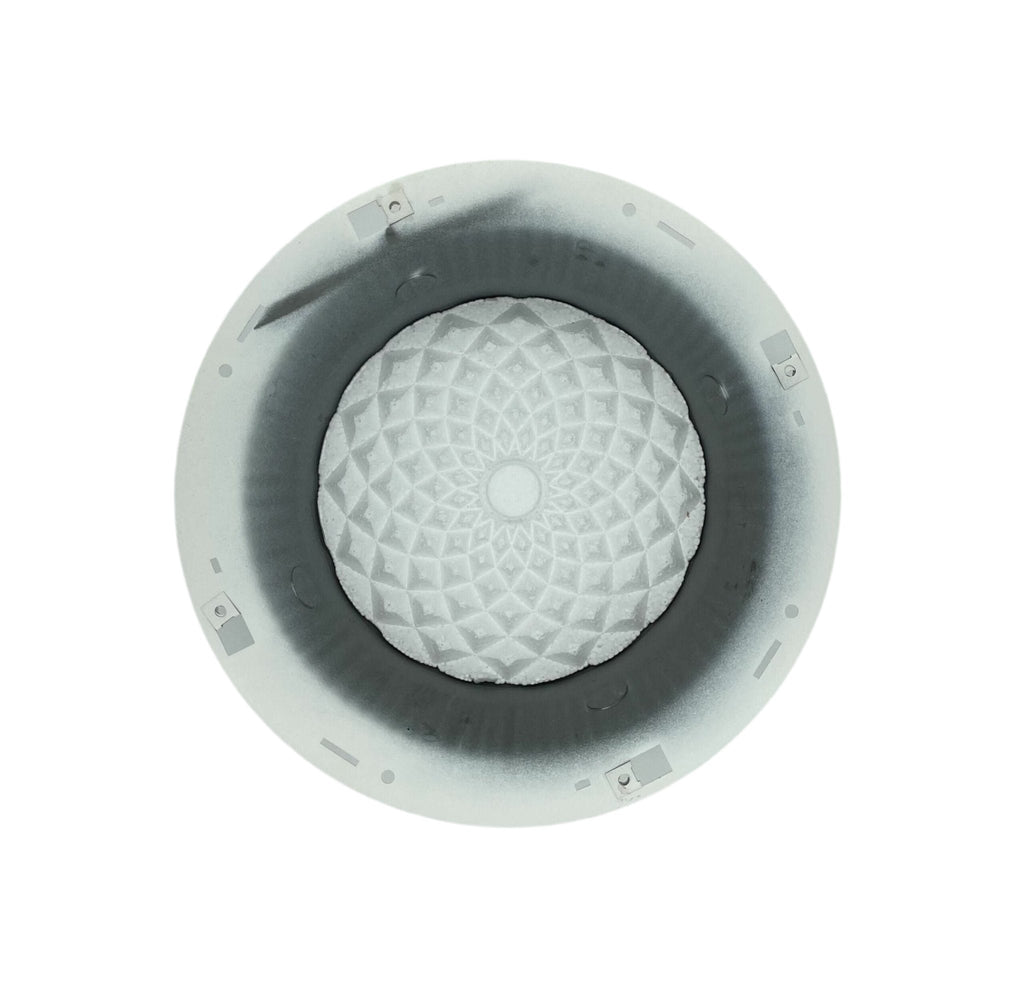

Wheelock CBB-8 (Eaton order code 3314) is the 8 in. ceiling speaker backbox for Wheelock Series S8 ceiling speakers and speaker strobes. Eaton's mounting accessories data sheet lists it as item DD, used with Series S 8 in. ceiling speakers, and the S8 data sheet names it, with the SSB-8 support bridge, as the mounting option for those appliances.
Specifications
| Model |
CBB-8 |
| Order code |
3314 |
| Description |
8 in. ceiling speaker backbox |
| Used with |
Wheelock Series S8 ceiling speakers and speaker strobes |
| Mounting environment |
Indoor (S8 appliances are listed for indoor mounting only) |
Compatibility and installation notes
- S8 models that list mounting option DD (CBB-8): S8-70/25 speaker (order 0052), S8-24MCC speaker strobe, 15/30/75/95 cd (order 0054), S8-24MCCH speaker strobe, 115/177 cd (order 0056).
- The S8 data sheet gives CBB-8 and SSB-8 as the two mounting choices; the SSB-8 is the ceiling support bridge alternative.
- S8 appliances use IN/OUT screw terminals for #12 to #18 AWG wire.
- The speaker or speaker strobe is ordered separately.
Related models
-
SSB-8: 8 in. ceiling speaker support bridge
-
S8-70/25: 8 in. ceiling speaker that mounts to the CBB-8
Documents
Specifications from Eaton technical data TD450028EN, Wheelock Mounting Accessories (September 2022), and TD450020EN, Wheelock S 8 in. Ceiling Speakers and Speaker Strobes (January 2016). Manufacturer specifications are subject to change.
