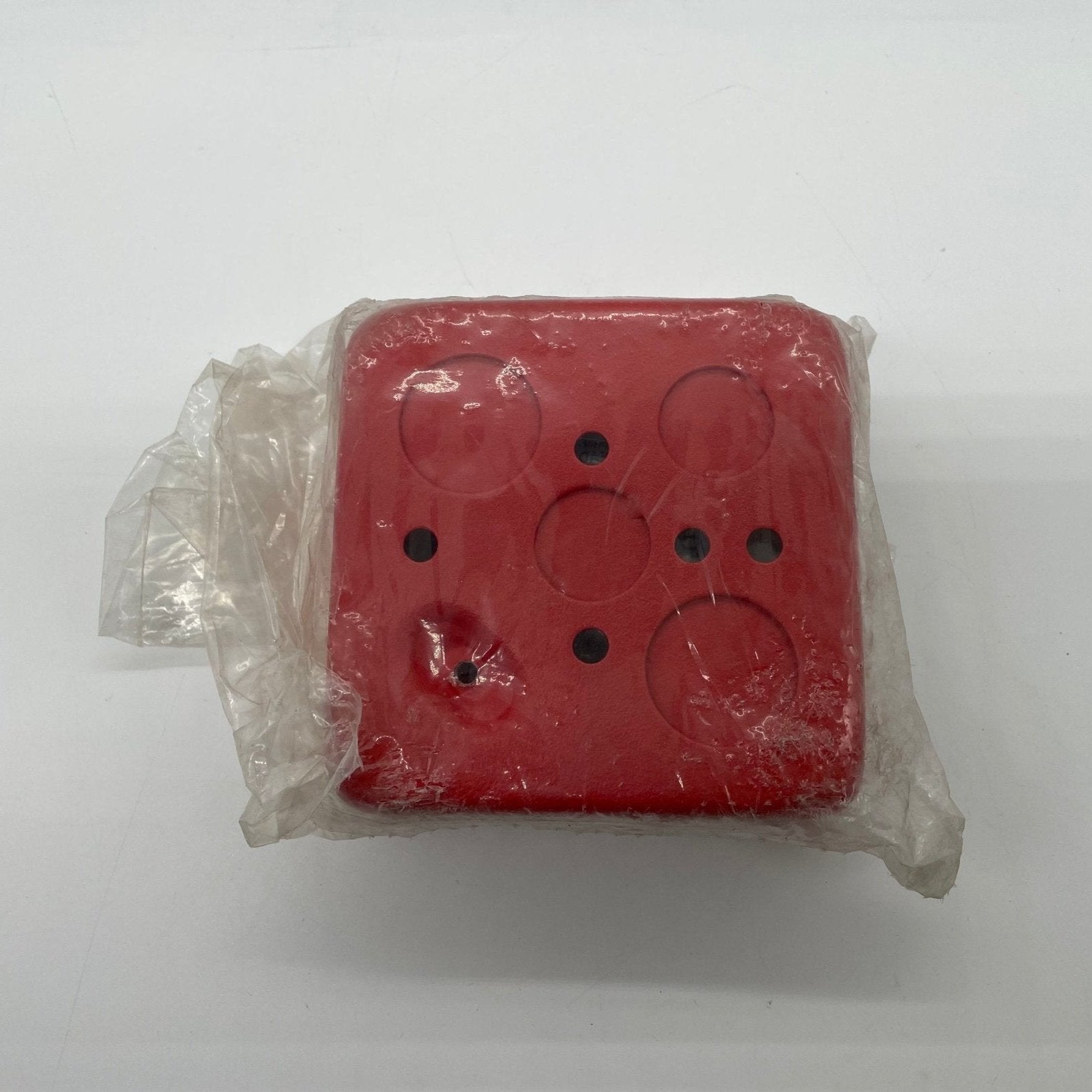

Eaton Wheelock BB-R — red 4" steel back box for surface, concealed-conduit and semi-flush mounting of Wheelock signals.
Wheelock treats the back box as a mounting option rather than part of the appliance: the same signal can be recessed into a standard 4" square electrical box, semi-flushed behind a plate, or surface-mounted on this box where conduit runs exposed. The BB is the shallow member of that family, paired with bells, horns and strobes.

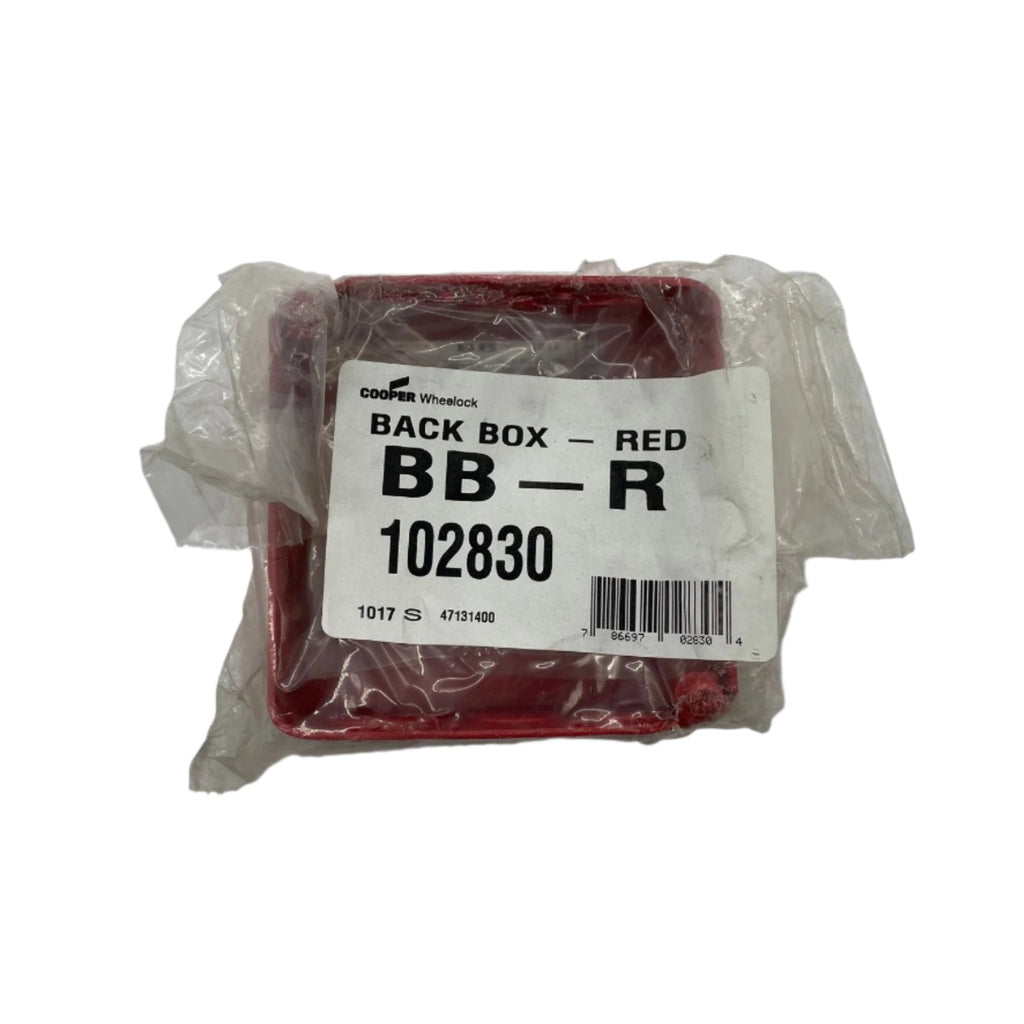

- Eaton order code 2830 for red; the same box in gray is order code 2349
- Steel, with knockouts for 1/2" and 3/4" conduit
- Box face 4" high, 5" overall across the flanges, two #8-32 tapped holes on 3-3/8" centres each way
- Listed by Eaton for the 31T, 43T, AH, MB, MT4 and RSS series appliances
- Maximum four field conductors, #18 to #12 AWG; mounting hardware supplied
Depth is where these get mis-ordered. DBB, order code 2955, is the deeper 4" box at 2-3/16" and takes eight conductors; SBB-R, order code 3204, is the larger box for speakers and chimes at 5-9/16 × 5-1/2 × 3-9/16 in.; WBB-R the die-cast weather-resistant outdoor box. System Sensor SBBR, without the hyphen, is another maker.
