Eaton Wheelock AC-MAX-A Strobe Amber Double Flash 120VAC

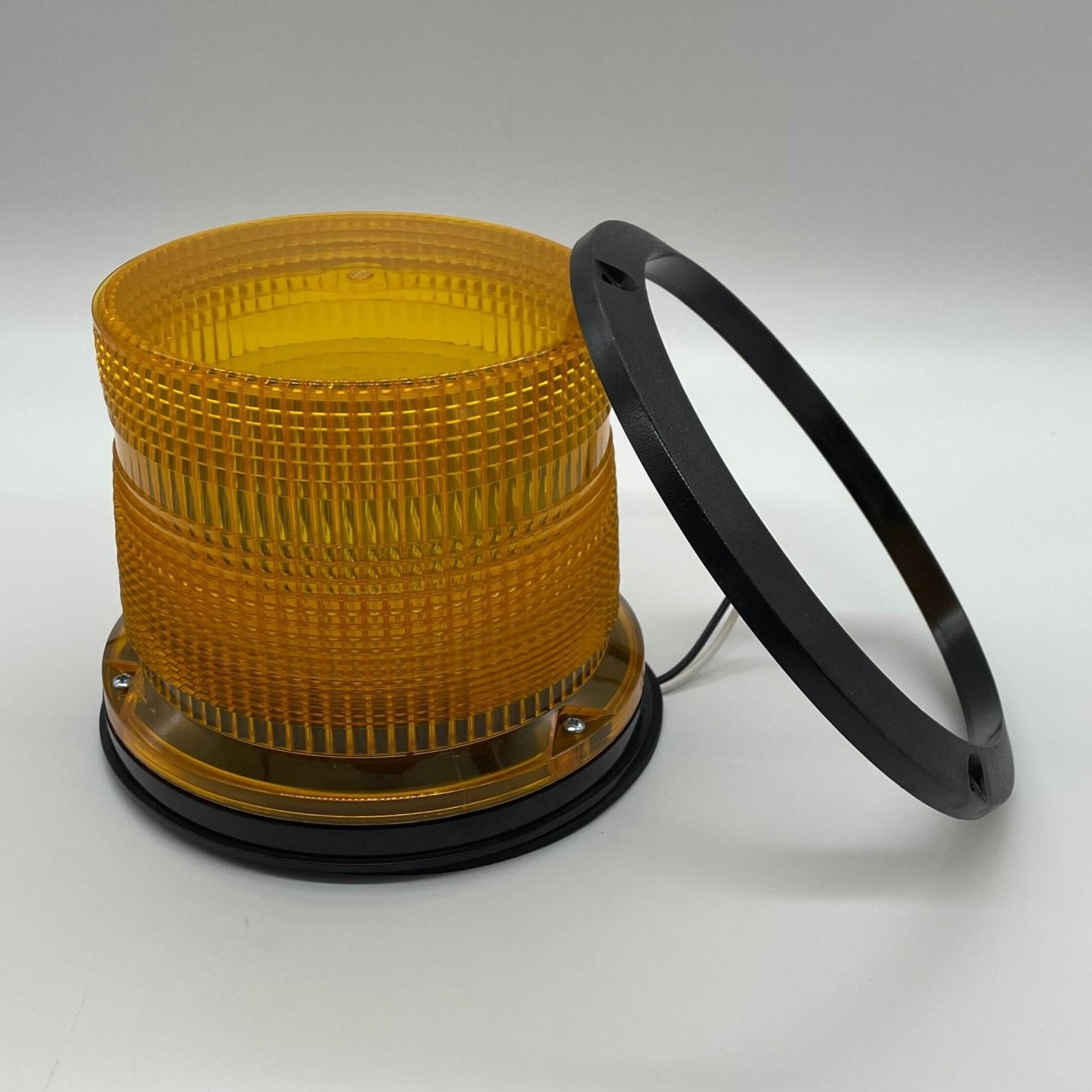

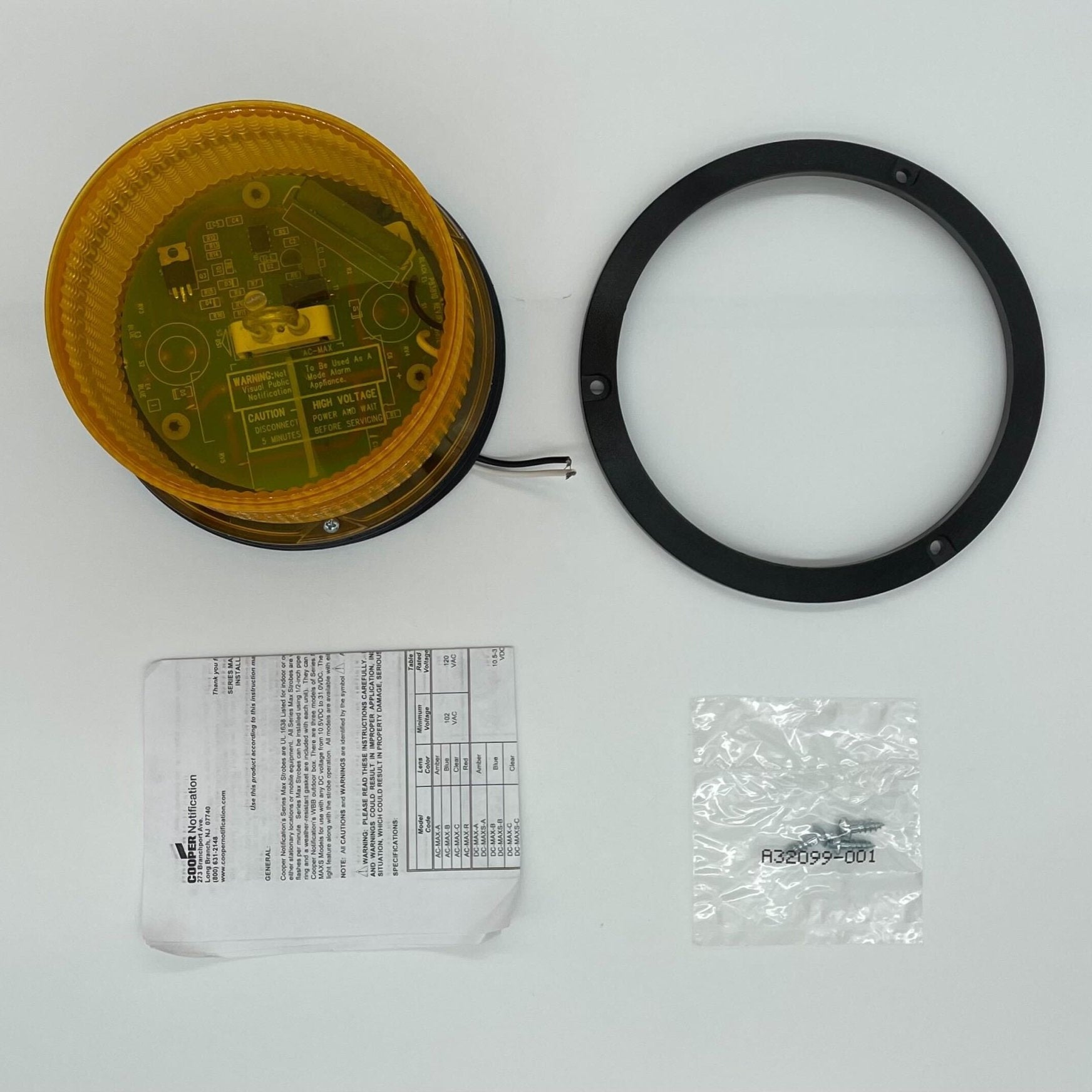

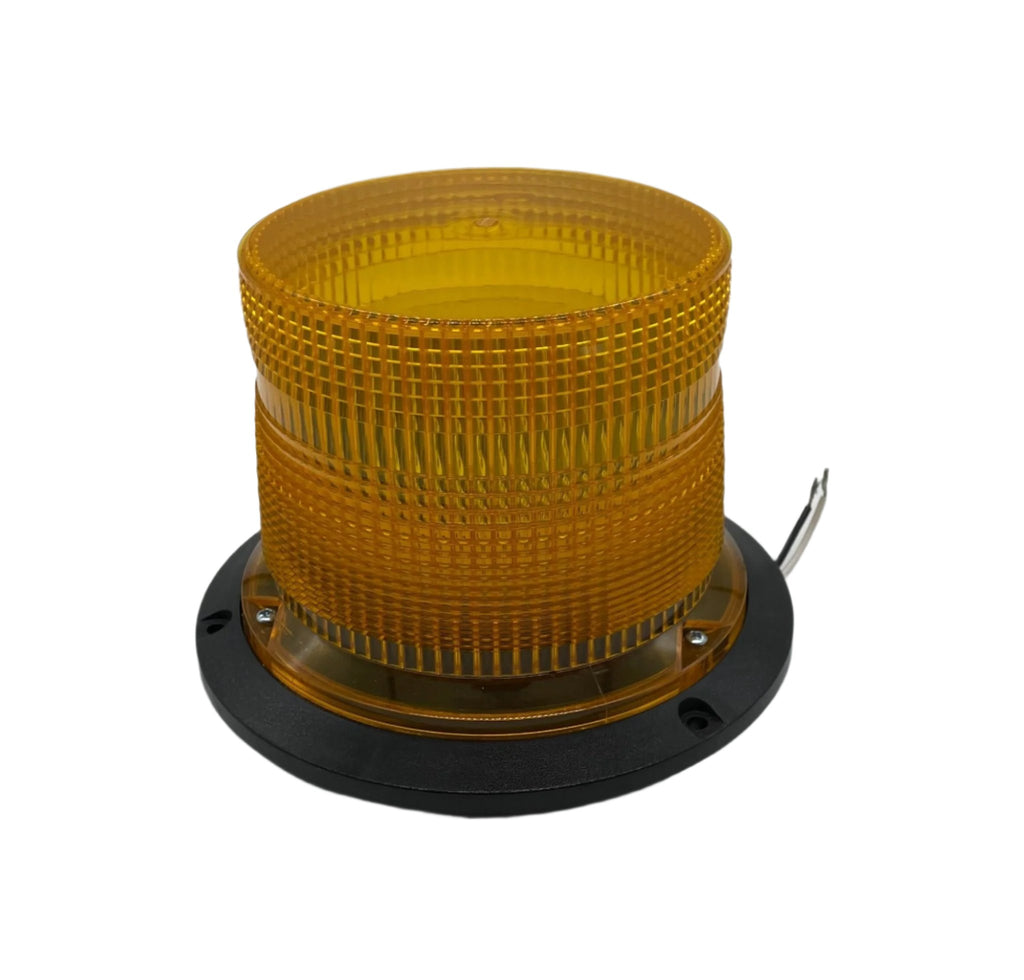

The AC-MAX-A is a Wheelock MAX industrial strobe with a amber lens for 120 VAC circuits. It is a high-intensity, weather-resistant double-flash warning light for stationary or mobile use such as hazard warning, process-area notification and gate or loading-dock identification. MAX strobes are not designed for synchronized NAC circuits and are not intended for wash-down areas.
Key Features
- UL 1638 certified for indoor or outdoor use
- Double flash, 60 double flashes per minute
- Amber lens (SAE color specification)
- High-impact Lexan base and lens

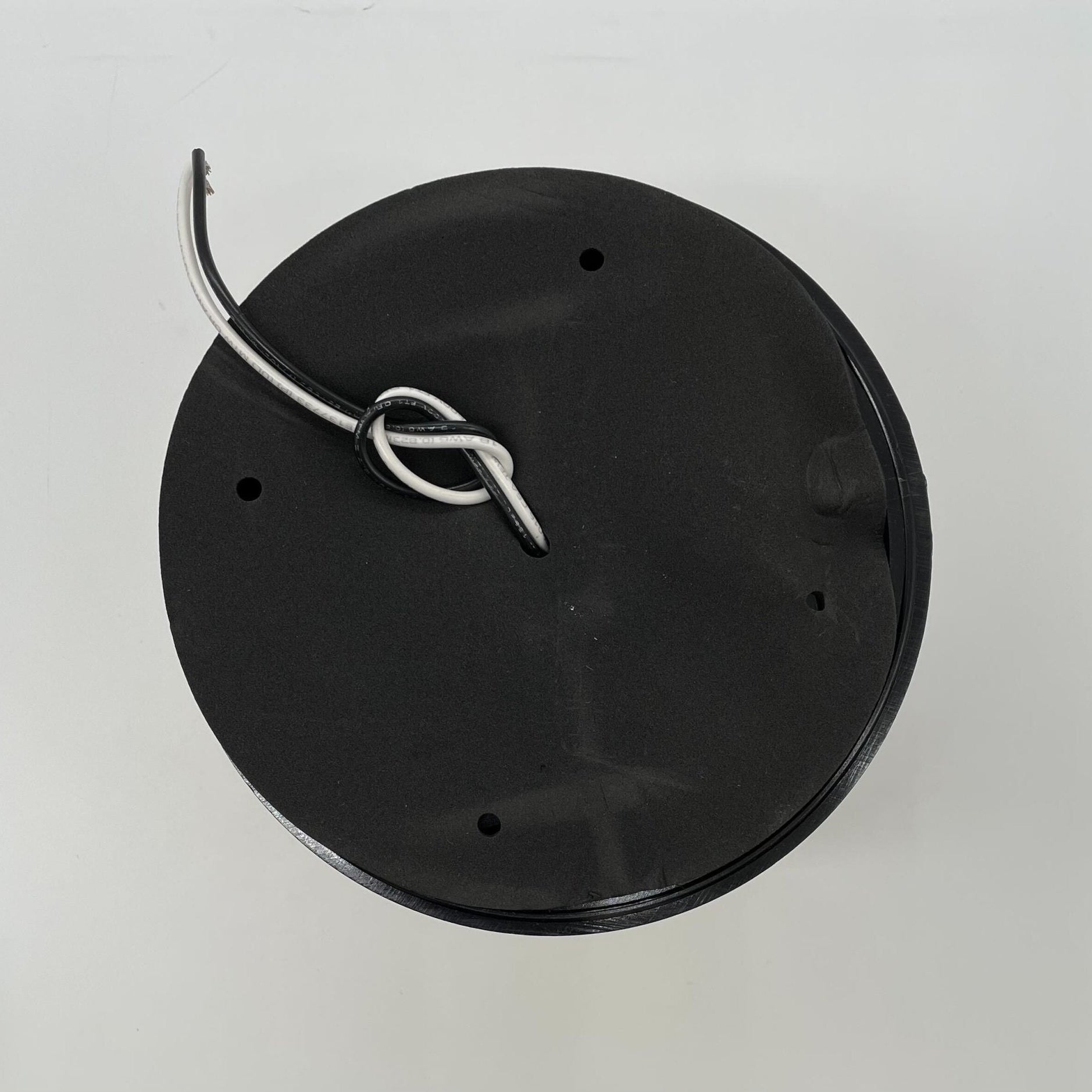

- Mounts on 1/2 in. pipe, surface, flange, a 4 in. square electrical box or the Wheelock WBB weather-resistant backbox
- Not for synchronized NAC circuits; not for wash-down areas
Specifications
| Model |
AC-MAX-A |
| Order code |
8120 |
| Lens color |
Amber |
| Voltage |
120 VAC |
| Effective candela |
80 cd |
| Current draw |
0.20 A at 120 VAC |
| Flash rate |
60 double flashes per minute |
| Flash energy |
7.5 joules |
| Operating temperature |
-31 F to +151 F (-35 C to +66 C) |
| Dimensions |
5 in. high x 6.2 in. diameter |
| Weight |
2 lb |
Compatible With
- Wheelock WBB weather-resistant backbox (order code 2959)
- 4 in. square electrical box
- 1/2 in. pipe mount
