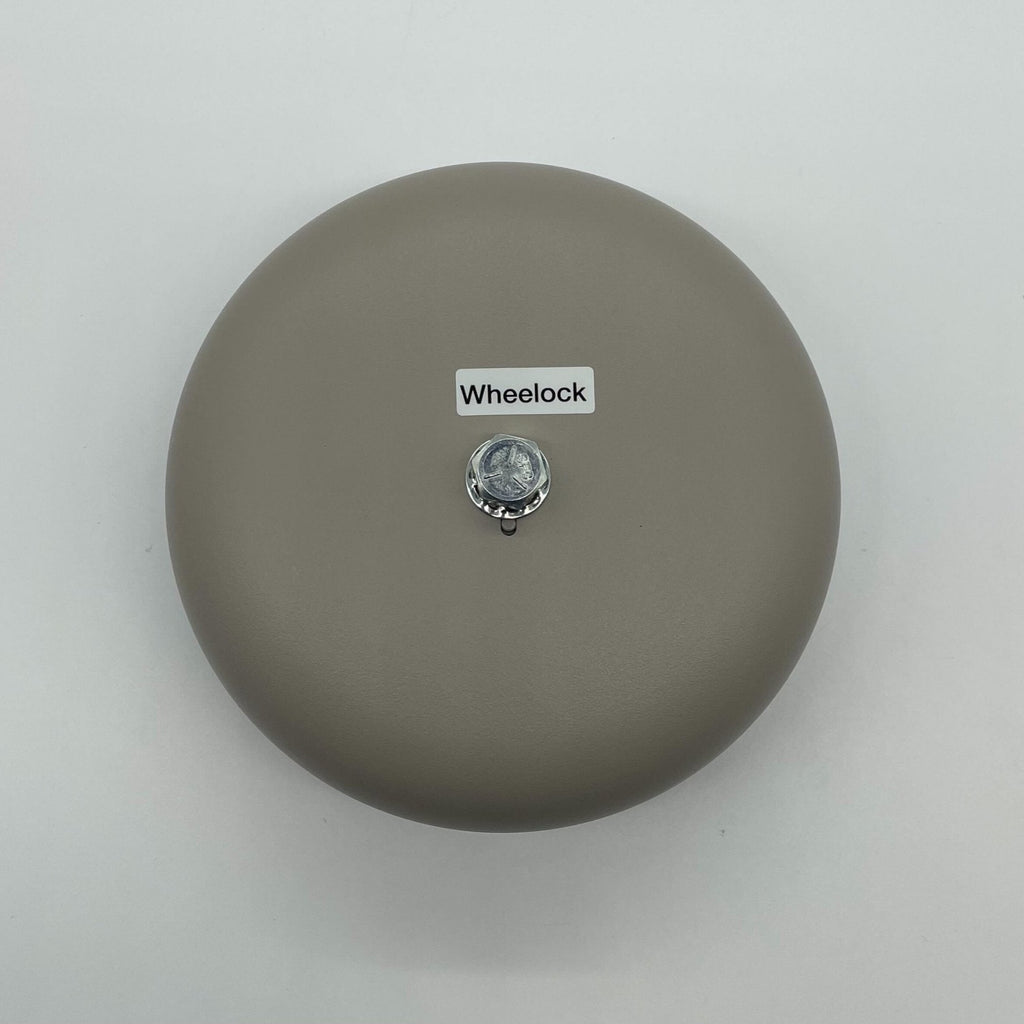

Eaton Wheelock 43T-G6-115-S AC Vib Bell, Indoor Outdoor, 115VAC, 6In. Shell, Silver
The Wheelock 43T bells provide durable operation and dependable performance that are required for life safety alarm systems. The wall-mount vibrating bells feature high sound output with low power consumption, and its integral RFI suppression minimizes induced noise on alarm lines. All indoor and outdoor models include aluminum bell housing in an attractive textured finish to enhance appearance and durability. For combined audible (bell) and visual signaling, convenient retrofit assemblies (RSSP) are available with multi-candela or single candela strobes.
Key Features

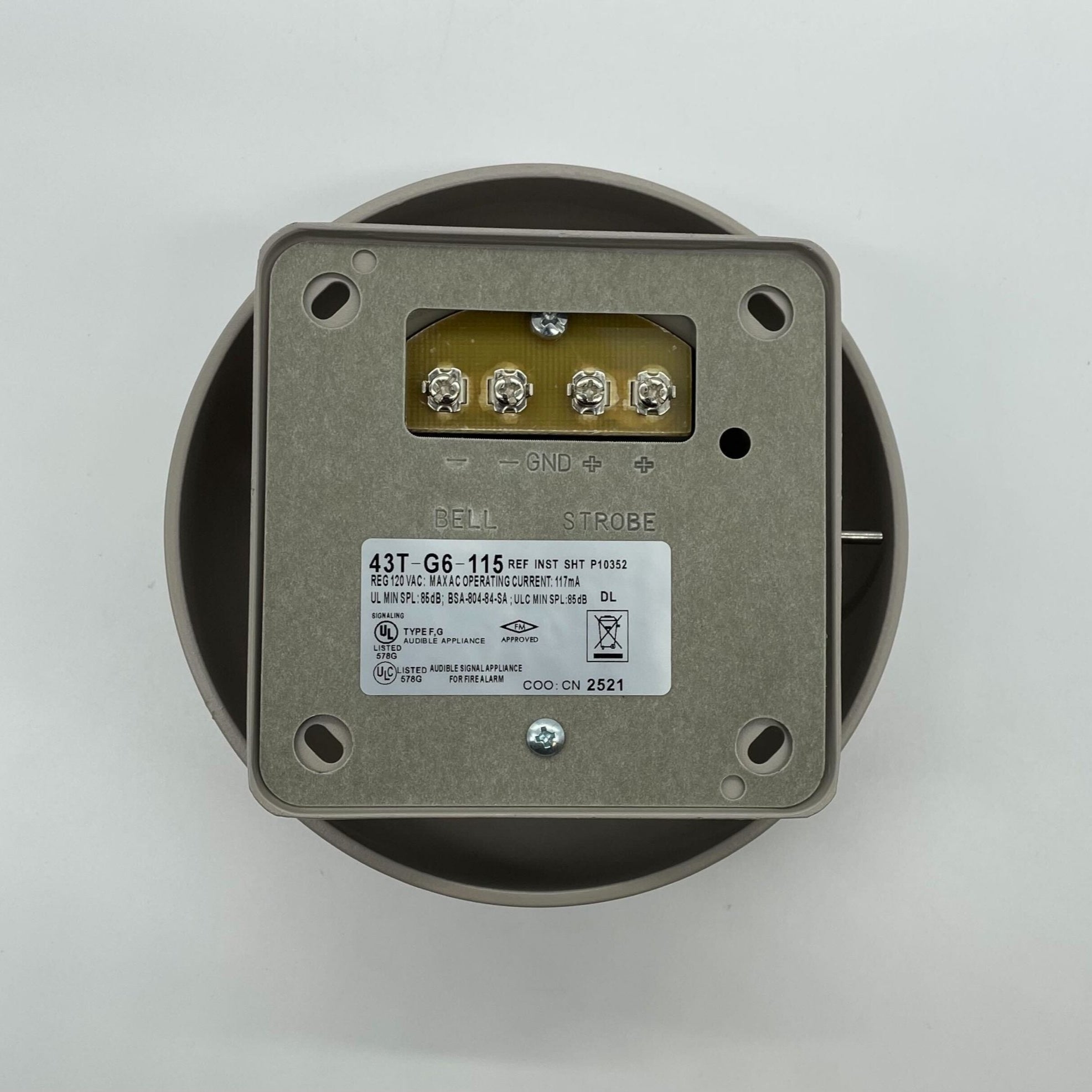

- Polarized for supervision of alarm lines with screw terminal inputs for fast and secure in-out field wiring of #12 to #18 AWG wire
- Convenient mounting options include semi-flush mounting to standard 4 in. square backboxes or surface mounting to Wheelock's surface backboxes
Specifications
| UPC |
786697016301 |
| Product Length/Depth |
2.4 in |
| Product Height |
6 in |
| Product Width |
6 in |
| Product Weight |
1.472 lb |
| Certifications |
UL |
| Product Type |
Vibrating bell |
| Compliance and standards |
UL BFP CSFM FM ULC |
| Mounting Method |
Wall |
| Housing color |
Gray |
| Housing material |
Aluminum with textured enamel finish |
| Shell size |
6 inches |
| Voltage |
115 V |
| Current |
0.085 |
