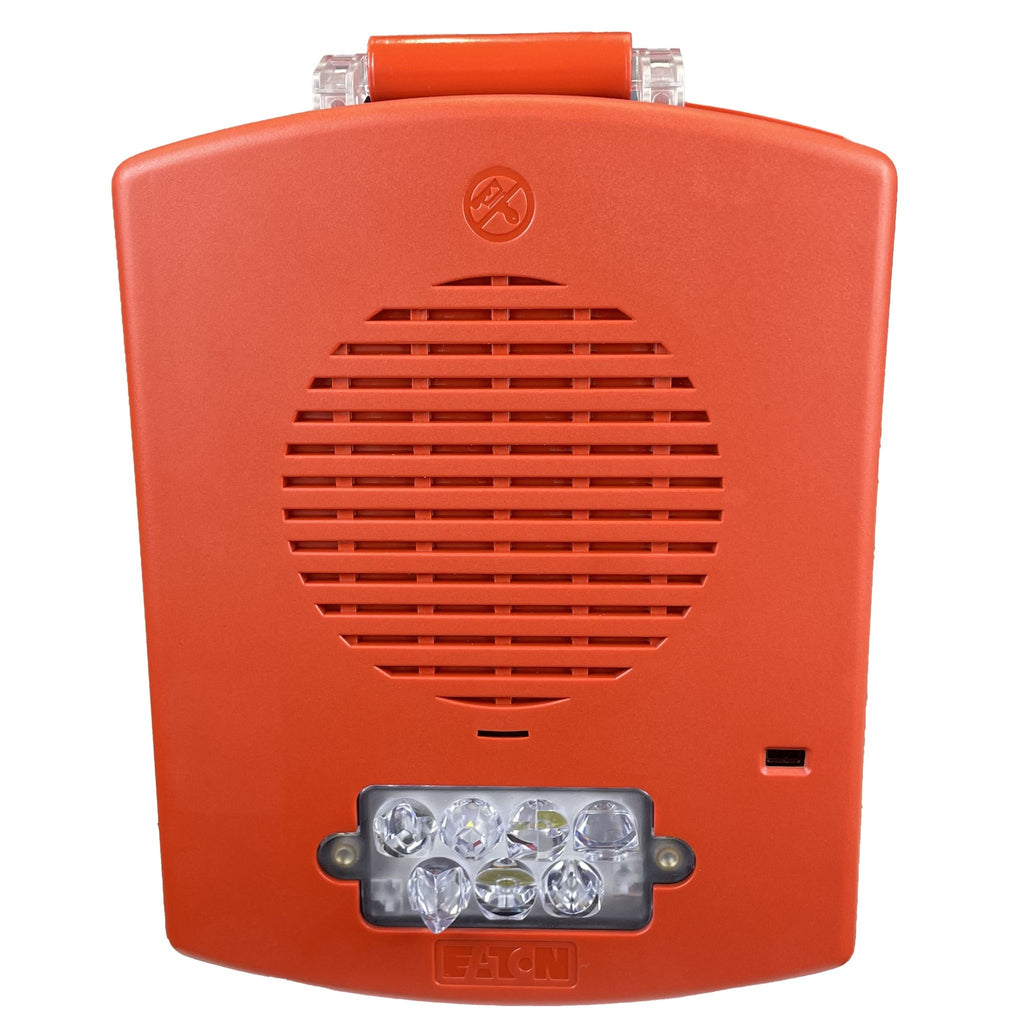

Eaton EL3RHS-FR is an Eluxa NEMA 3R outdoor LED horn strobe with a clear lens, red housing and FIRE lettering, supplied with the EL3RMP mounting plate. It is for indoor or outdoor use, wall or ceiling mount, at 24 V.
Specifications
| Rating |
NEMA type 3R, IP54 |
| Operating voltage |
16–33 VDC/FWR |
| Candela |
15, 30, 75, 95/110, 150, 177/185 cd |
| Horn patterns |
Continuous, T3, T3/T4 |
| Sound output |
90 dBA high, 86 dBA low at 24 V |
| Horn strobe current (24 VDC, high) |
0.063 A at 15 cd to 0.230 A at 177/185 cd |
| Operating temperature |
-40 to 150 °F (-40 to 66 °C), 95% RH |
| Dimensions |
7.8 in. L x 5.75 in. W x 1.6 in. H |
| Weight |
1.7 lb |
| Standards |
UL 50/50E, UL 464, UL 1638, CAN/ULC-S525, CAN/ULC-S526, NFPA 72 2016; CSFM, FM |
Installation notes
- Mounts on the pre-wire capable EL3RMP mounting plate, wall or ceiling.
- Synchronizes with Wheelock DSM sync modules, PS power supplies, Intelligent Notification Controllers, SAFEPATH products or panels with the Wheelock sync protocol.
Related models
- EL4XHS-FR: NEMA 4X/IP66 version with EL4XBB back box
- EL3RST-FR: NEMA 3R strobe without horn
- EL3RHN-NR: NEMA 3R horn without strobe
FAQ
Can the EL3RHS-FR be mounted outdoors?
Yes. It is rated NEMA type 3R and IP54 for indoor/outdoor use, from -40 to 150 °F, on wall or ceiling.
What is the difference between EL3R and EL4X models?
EL3R models are NEMA 3R/IP54 and mount on the EL3RMP plate; EL4X models are NEMA 4X/IP66 and use the EL4XBB back box.
Which candela settings does it have?
15, 30, 75, 95/110, 150 and 177/185 cd with the clear lens.
Can it be synchronized?
Yes, with Wheelock DSM sync modules, PS power supplies, SAFEPATH products or panels with the Wheelock sync protocol.
